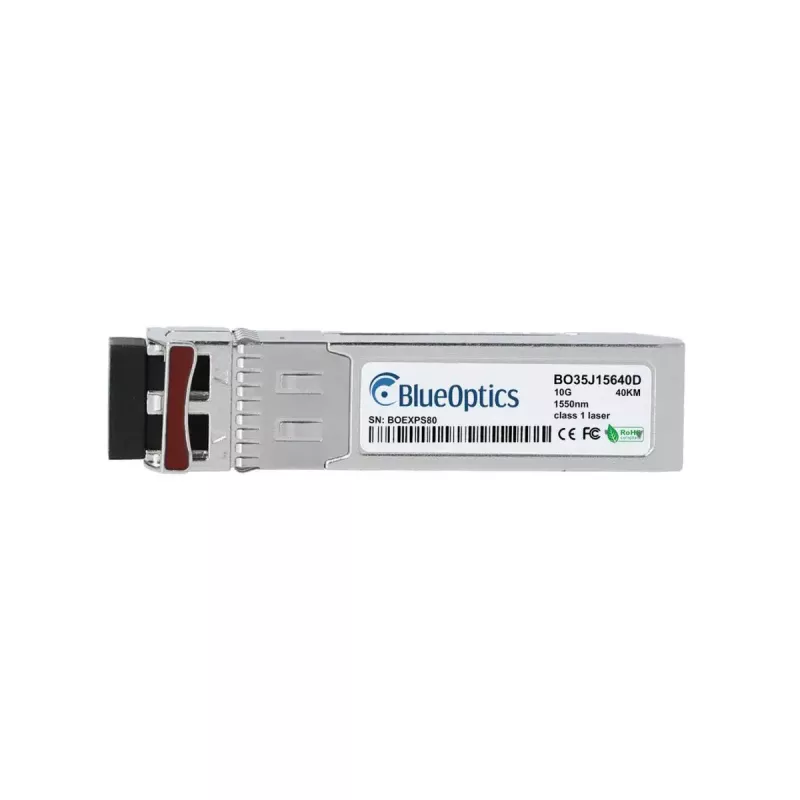

Módulo transceptor SFP+ BlueOptics USFP+-192/S2/SW-BO 10000 Mbit/s 1550 nm

The BlueOptics USFP+-192/S2/SW-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s data links over single-mode fiber. It operates at a 1550 nm wavelength and is built in a metal housing with a compact SFP+ form factor and LC duplex optical connector. The module is lightweight and intended for straightforward installation in compatible network equipment that accepts SFP+ transceivers and supports standard 10GBASE optical interfaces.

Advantages

This SFP+ transceiver supports a maximum data transfer rate of 10000 Mbit/s and provides optical transmission at 1550 nm suitable for extended-reach single-mode links. The metal housing offers mechanical robustness and helps with thermal conduction in rack-mounted and chassis environments. The module’s SFP+ interface ensures hot-pluggable installation and broad physical compatibility with equipment that follows the SFP+ MSA form factor.

Suitable for

Key specifications

How to use

Install the BlueOptics USFP+-192/S2/SW-BO by inserting the module into an available SFP+ slot of compatible network equipment while the host device is powered according to the vendor’s service instructions for hot-pluggable modules. Connect a single-mode LC duplex patch cable to the module’s optical ports, observing correct transmit/receive orientation. Verify link status on the host device and confirm that the device firmware or software supports the SFP+ module for proper operation at 10 Gbit/s.

Recommendations

Ensure the host equipment supports 10G SFP+ modules and the 1550 nm wavelength. Use single-mode fiber with appropriate attenuation budget for the intended reach and install LC duplex patch cords that meet industry quality standards. If digital diagnostic monitoring (DDM/DOM) is required, confirm that the host supports those diagnostics for real-time monitoring of optical parameters.
