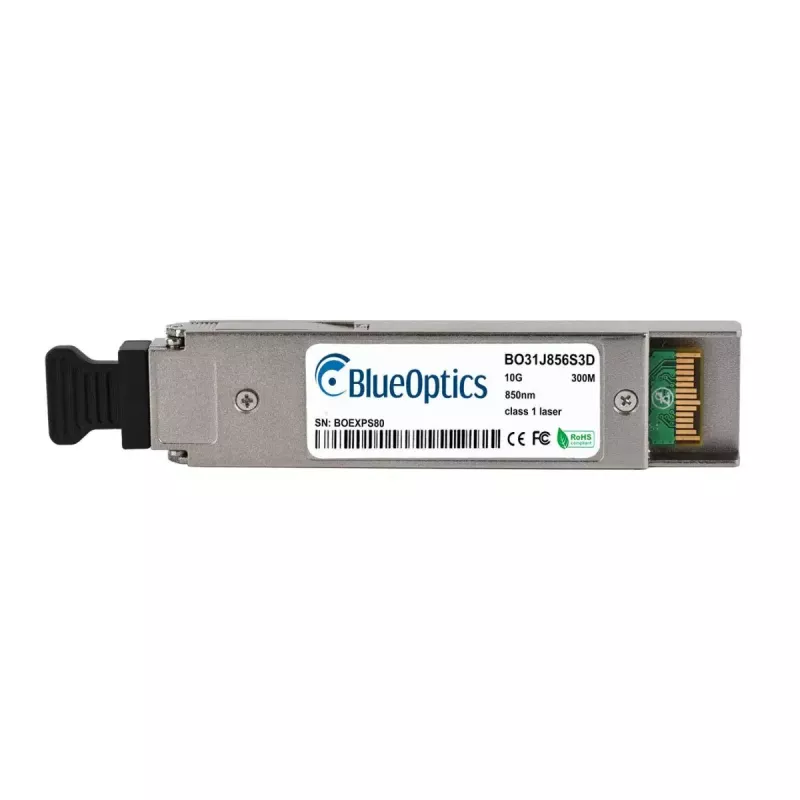

Módulo transceptor XFP BlueOptics 0231A494-BO 10000 Mbit/s

The XFP transceiver module BlueOptics 0231A494-BO 10000 Mbit/s is an XFP-form-factor optical module designed for 10G data links over multi-mode fiber. It implements 10GBASE-SR signaling with an 850 nm transmitter and receiver and uses an LC duplex connector. The module is compatible with major Huawei platforms that support the original 10GBASE-SR XFP and is intended for short-reach optical connections up to approximately 300 meters on suitable multi-mode fiber. With a chrome finish and a lightweight metal housing (about 20 g), the module is compact and straightforward to install in compatible equipment.

Advantages

The BlueOptics 0231A494-BO provides 10 Gbit/s optical transmission in the XFP form factor and follows MSA-defined mechanical and electrical standards to ensure interoperability with compliant hardware. Built with components from established suppliers for laser and IC technology, the module supports Digital Diagnostics Monitoring (DDM/DOM) features for real-time monitoring of supply voltage, temperature, laser bias current, transmit power and receive power when the host system exposes these functions. Low weight and standard LC duplex connectivity simplify installation and cabling in data center and enterprise environments.

Suitable for

• 10 Gbit/s Ethernet links (10GBASE-SR) over multi-mode fiber
• Short-reach data center uplinks and server-to-switch connections
• Switches, routers, storage systems and other network equipment with XFP slots that support 10GBASE-SR
• Environments requiring DDM/DOM-capable transceivers for remote diagnostics

Key specifications

• Interface type: XFP form factor
• Data rate: up to 10000 Mbit/s (10 Gbit/s)
• Optical wavelength: 850 nm transmitter and receiver
• Connector: LC duplex
• Reach: up to ~300 meters over appropriate multi-mode fiber
• Housing weight: approximately 0.02 kg
• Color/finish: chrome metal housing
• Digital diagnostics: DDM/DOM support (when supported by host hardware)

How to use

Install the XFP transceiver into a compatible XFP slot on the network device following the vendor’s hot-swap and safety instructions. Connect LC duplex multi-mode fiber patch cords to the module ensuring correct transmit/receive orientation. Verify that the host device recognizes the module and, if required, enable or check DDM/DOM readings in the device management interface to monitor operating parameters. Observe standard ESD precautions when handling the module and protect fiber ends with dust caps until final connection.

Recommendations

For optimal link performance, use high-quality multi-mode fiber and LC duplex patch cords rated for 10GBASE-SR, maintain clean connector endfaces, and ensure transceiver support and firmware compatibility on the target Huawei or other vendor equipment. Confirm that the host platform exposes DDM/DOM data if remote diagnostics are required. Avoid bending fiber beyond its minimum bend radius and store spare modules in anti-static packaging.
