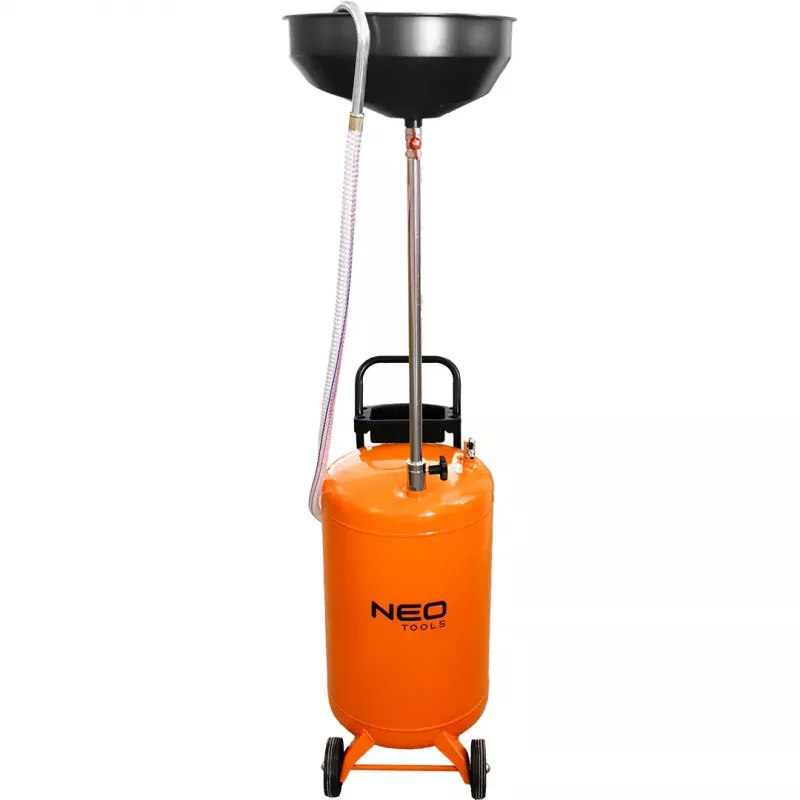

NEO TOOLS 10-810 Recogedor móvil de aceite por gravedad, depósito de 70 L, vaciado neumático, bandeja de recogida de 420 mm, altura ajustable 1000-1600 mm

With a 70 L steel tank and pneumatic emptying at just 0.8 bar, this mobile oil drainer makes used oil collection fast, clean, and effortless. The large 420 mm drain pan with anti-splash mesh grid catches every drop, while the height-adjustable frame from 1000 to 1600 mm fits cars, vans, and light trucks on lifts or jack stands. Four heavy-duty castors—two swivel, two fixed—let you position the unit precisely under the drain plug and roll it away when full. A 1.5 m oil-resistant PVC hose connects to the tank's drain valve for controlled discharge into waste oil containers, and the pneumatic emptying system uses standard workshop air to push oil out without tilting or lifting. The powder-coated steel construction resists corrosion from used engine oil, transmission fluid, and non-corrosive coolants, making this a durable addition to professional automotive workshops and home garages alike.

Overview

The NEO TOOLS 10-810 is a gravity-fed mobile oil drainer built for everyday use in busy service environments. Its 70 L capacity reduces the frequency of emptying, while the wide funnel with splash guard minimizes mess during oil changes. The telescopic column adjusts smoothly between 1000 and 1600 mm, accommodating a wide range of vehicle clearances. The tank features a built-in drain valve for gravity emptying when compressed air is unavailable, and the pneumatic connection (1/4" NPT) provides a faster, hands-free option. The unit's low center of gravity and robust castors ensure stability during movement, even when the tank is partially full.

What stands out

• 70 L steel tank with powder-coated finish for long service life
• Pneumatic emptying system requires only 0.8 bar working pressure
• 420 mm drain pan with anti-splash mesh grid
• Height adjustable from 1000 to 1600 mm for versatile vehicle access
• Four heavy-duty castors (2 swivel, 2 fixed) for easy positioning
• 1.5 m oil-resistant PVC hose with drain valve for controlled discharge
• Suitable for used engine oil, transmission fluid, and non-corrosive coolants

Technical details

• Collection method: Gravity
• Emptying method: Pneumatic (0.8 bar / 11.6 PSI)
• Tank capacity: 70 L
• Tank material: Steel
• Drain pan diameter: 420 mm
• Drain pan material: Steel
• Height adjustment range: 1000 - 1600 mm
• Number of wheels: 4 (2 swivel, 2 fixed heavy-duty castors)
• Hose length: 1.5 m
• Hose material: Oil-resistant PVC
• Air inlet connection: 1/4" NPT
• Finish: Powder-coated
• Application: Professional automotive workshops, home garages

Our verdict

The NEO TOOLS 10-810 combines a generous 70 L capacity with pneumatic convenience, making oil changes quicker and cleaner. Its sturdy steel build and smooth height adjustment deliver reliable performance for any workshop.
