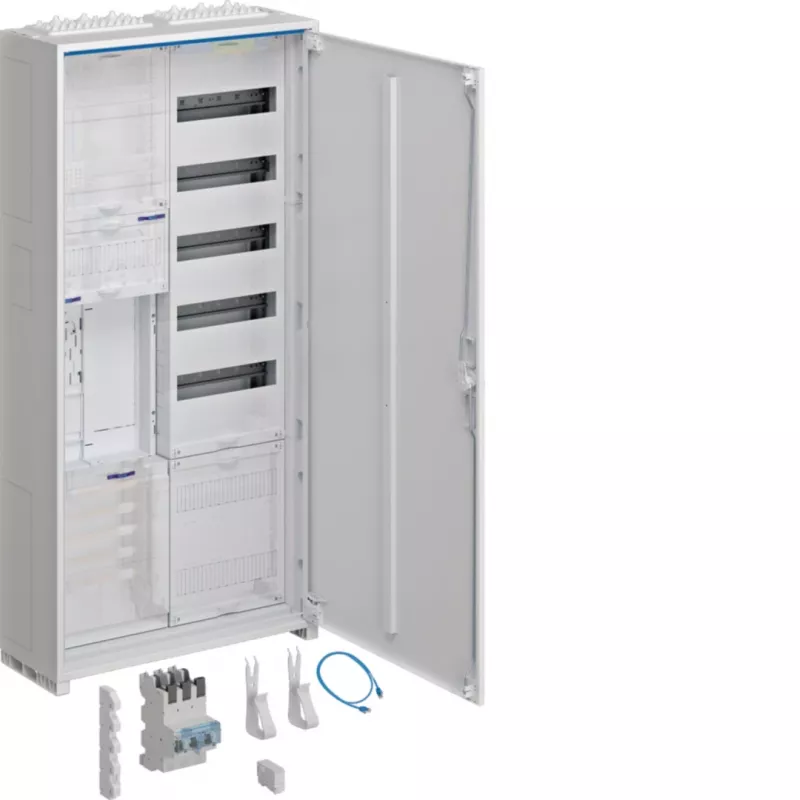

Hager ZB32SEQ15A Caja completa de contador y distribución, 1 campo de contador eHZ, campo de distribución de 5 filas, APZ integrada, montaje en superficie/empotrado, acero, blanco

Meter and distribution cabinet with integrated APZ, combining a single eHZ meter field and a 5-row distribution field in one sheet steel enclosure. The cabinet is suitable for surface or flush mounting and provides a pre-assembled 5-pole busbar system with N and PE terminals.

Advantages

The complete cabinet simplifies installation by integrating the meter field, distribution field, and APZ in one unit. Its 5-row distribution field offers ample space for circuit breakers and residual current devices, while the 5-pole busbar system reduces wiring time. The steel construction with opaque door ensures durability and protection.

Suitable for

• Residential buildings such as single-family homes and apartments
• Electrical installations requiring a combined meter and distribution point
• Applications following DIN VDE 0603-1 and DIN 43870-1 standards

Key specifications

• Configuration: Complete cabinet with 1 eHZ meter field and 1 distribution field
• Distribution field row units: 5 RH
• Integrated APZ (connection point for additional devices)
• Mounting type: Surface-mounted or flush-mounted
• Material: Sheet steel
• Colour: Traffic white (RAL 9010)
• Rated voltage: 230/400 V AC
• Rated current: up to 63 A
• Busbar system: 5-pole, pre-assembled
• Door type: Opaque steel door with standard lock

Recommendations

For a reliable and compliant electrical distribution solution in residential projects, this Hager cabinet offers a complete, ready-to-install package with integrated APZ and pre-wired busbars.
