Estación de carga/comunicación serie N7 con ranura de carga para batería de repuesto

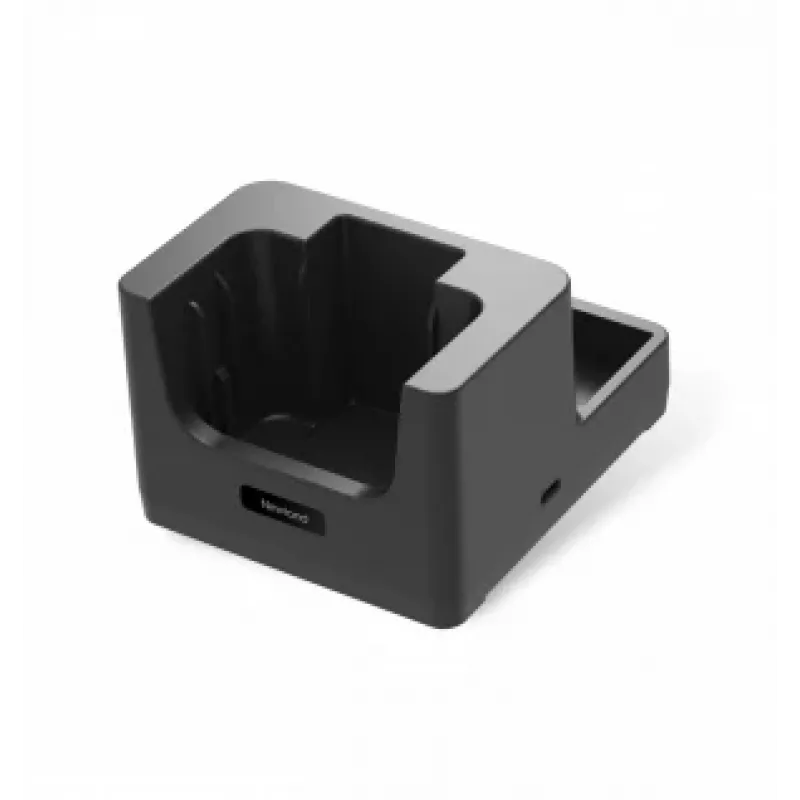

For operations that depend on continuous scanning uptime, the Newland NLS-CDN7-C-LOWV cradle eliminates the downtime of swapping devices mid-shift. Unlike basic charging stands, this unit pairs a full communication interface with a dedicated spare battery bay, so one N7 terminal can be charged and synced while a second battery powers up for immediate hot-swap readiness. It is the only cradle in its class to combine USB and Ethernet connectivity with dual-slot charging in a single desktop footprint.

Highlights

• Dual charging capability: 1x device slot and 1x spare battery slot charge simultaneously
• Fast charging technology for both the N7 terminal and spare battery
• Dual communication interfaces: USB 2.0 (Type-B) and Ethernet (RJ45) for flexible host connectivity
• Clear LED indicators for power, device charging, spare battery charging, and communication status
• High-durability ABS plastic housing with rubber feet for stable desktop placement
• Optional wall-mount kit (sold separately) for fixed workstation installations
• Includes external AC/DC power adapter with universal input (100-240V AC)

In daily use

Place the cradle on a packing bench, warehouse desk, or retail counter, and it becomes the central dock for your N7 handheld. The device slot holds the terminal at a comfortable angle for glanceable screen visibility while charging. The spare battery bay sits alongside, accepting a second battery so it is always ready when the primary runs low. With Ethernet and USB both available, you can choose the network path that fits your infrastructure—whether a wired LAN for high-throughput data sync or a direct PC connection for device management. The LED panel gives at-a-glance confirmation of charge state and link activity, reducing guesswork during busy shifts.

Full specifications

• Compatibility: Newland N7 Series handheld terminals
• Charging slots: 1x device, 1x spare battery
• Charging technology: Fast charging for device and spare battery
• Communication interfaces: USB 2.0 Type-B, Ethernet RJ45
• Data transfer rates: Up to 480 Mbps (USB 2.0), 10/100 Mbps (Ethernet)
• Power input: 12V DC, 3A (via external adapter)
• Power adapter input: 100-240V AC, 50/60 Hz (included)
• LED indicators: Power, device charging, spare battery charging, communication status
• Material: High-durability ABS plastic
• Colour: Black
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 5% to 95% non-condensing
• Mounting: Desktop (rubber feet), optional wall-mount kit
• Certifications: CE, FCC, RoHS

Final note

Keep your N7 fleet charged, connected, and ready for the next scan with the Newland NLS-CDN7-C-LOWV—the professional docking solution that never leaves a battery waiting.
