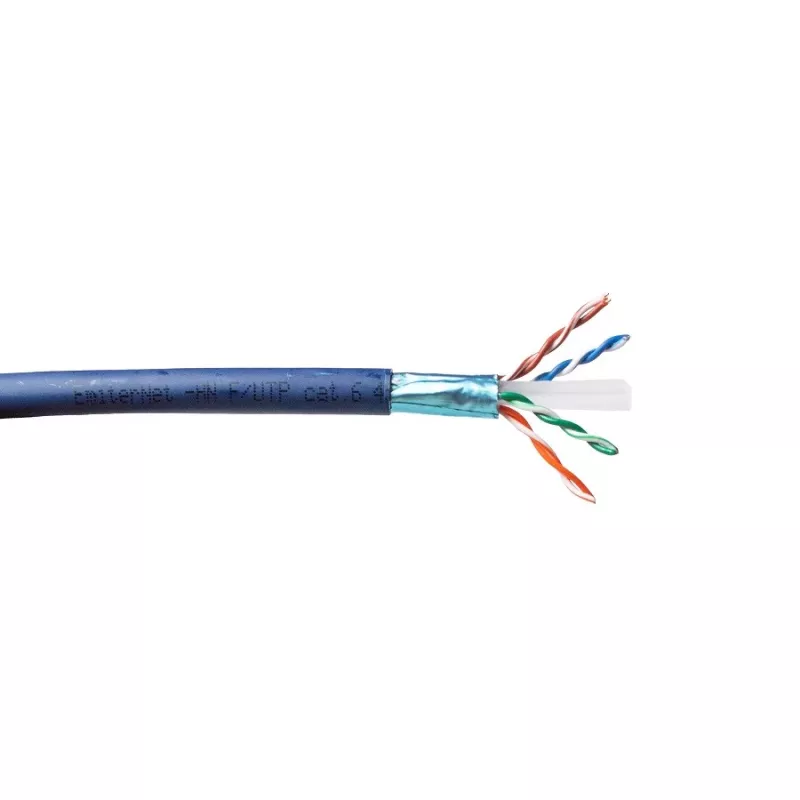

EMITER Emitter cable Net FTP (F/UTP) Cat.6 450MHz, conductor 4x2x23AWG, LSZH-FR 500m

With a bandwidth of 450 MHz, this Cat.6 F/UTP cable supports 10 Gigabit Ethernet up to 55 meters and Gigabit Ethernet up to 100 meters, making it a robust backbone for high-speed networks. The foil shielding and solid bare copper conductors ensure minimal crosstalk and excellent signal integrity, while the LSZH-FR jacket provides superior fire safety for indoor installations.

Overview

The EMITER Emitter Net FTP cable is a premium Cat.6 network cable featuring foil shielding (F/UTP) to reduce electromagnetic interference. It consists of 4 twisted pairs of 23 AWG solid bare copper conductors, ensuring excellent signal integrity and low attenuation. The LSZH-FR (Low Smoke Zero Halogen - Flame Retardant) jacket makes it suitable for environments where fire safety and low smoke emission are critical, such as offices, data centers, and public buildings. Supplied on a 500-meter wooden reel, it is ideal for professional installations.

What stands out

• 450 MHz bandwidth for high-speed data transfer
• F/UTP shielding minimizes crosstalk and EMI
• Solid bare copper conductors for superior conductivity
• LSZH-FR jacket for enhanced fire safety
• Supports 10 Gigabit Ethernet up to 55 meters
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2

Technical details

• Cable type: F/UTP (Foiled/Unshielded Twisted Pair)
• Category: Cat.6
• Frequency rating: 450 MHz
• Conductor gauge: 23 AWG
• Number of pairs: 4
• Conductor material: Solid bare copper
• Jacket material: LSZH-FR
• Cable length: 500 m
• Data transfer rate: 1 Gbps up to 100 m, 10 Gbps up to 55 m
• Impedance: 100 ± 15 Ohm
• Outer diameter: Approx. 7.2 mm
• Color: Grey
• Packaging: Wooden reel
• Operating temperature: -20°C to +60°C

Our verdict

For professional installers seeking a reliable, high-performance Cat.6 cable with excellent fire safety credentials, the EMITER Emitter Net FTP is a top choice. Its solid copper construction and 450 MHz bandwidth ensure future-ready performance for demanding network environments.
