Niedax KSV 60 S conector recto 60 mm acero galvanizado en banda

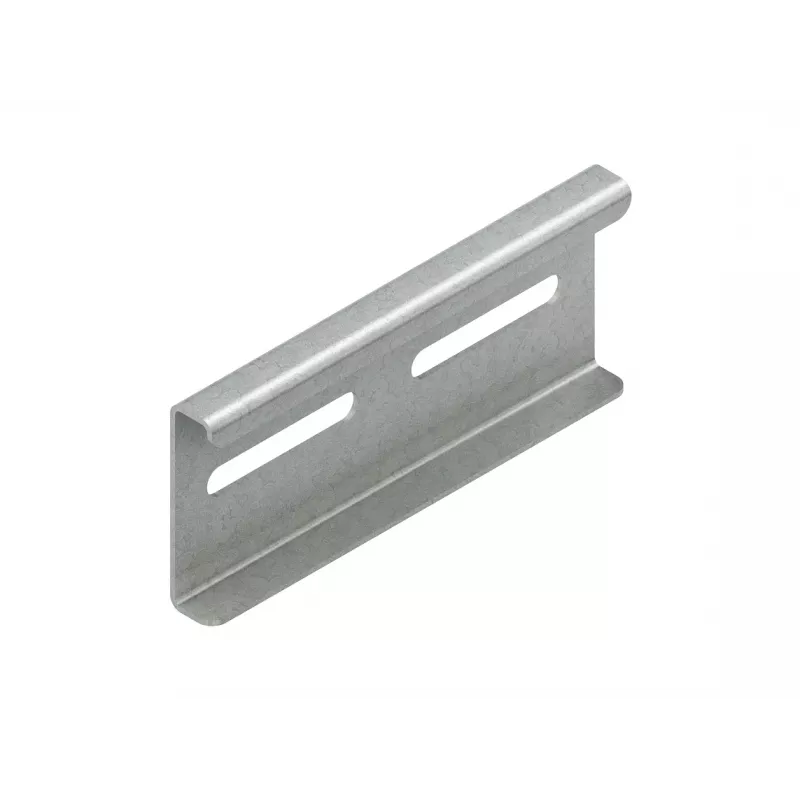

The Niedax KSV 60 S is a high-quality straight splice connector designed for joining cable tray and cable ladder systems. Manufactured from strip-galvanized steel in accordance with DIN EN 10346, this connector ensures reliable electrical continuity and mechanical strength. With a compatible system height of 60 mm, it is ideal for creating secure, corrosion-resistant connections in indoor and protected outdoor environments.

Advantages

This splice connector offers easy screw connection installation, requiring M6 screws and nuts (not included). Its strip-galvanized surface provides medium corrosion protection, making it suitable for a wide range of applications. The compact design (120 mm length, 20 mm width, 60 mm height) allows for efficient use in confined spaces.

Suitable for

• Joining cable tray sections
• Connecting cable ladder runs
• Indoor and protected outdoor installations
• Applications requiring medium corrosion protection

Key specifications

• Connector Type: Straight Splice Connector
• Compatible System Height: 60 mm
• Material: Steel
• Surface Finish: Strip-galvanized (bandverzinkt)
• Surface Finish Standard: DIN EN 10346
• Mounting Method: Screw connection
• Length: 120 mm
• Width: 20 mm
• Height: 60 mm
• Color: Metallic / Silver
• Number of Fastener Holes: 4
• Required Fasteners: M6 screws and nuts (not included)

Recommendations

For optimal performance, use with Niedax cable trays and appropriate M6 fasteners. Ensure proper torque during installation to maintain electrical continuity and mechanical stability.
