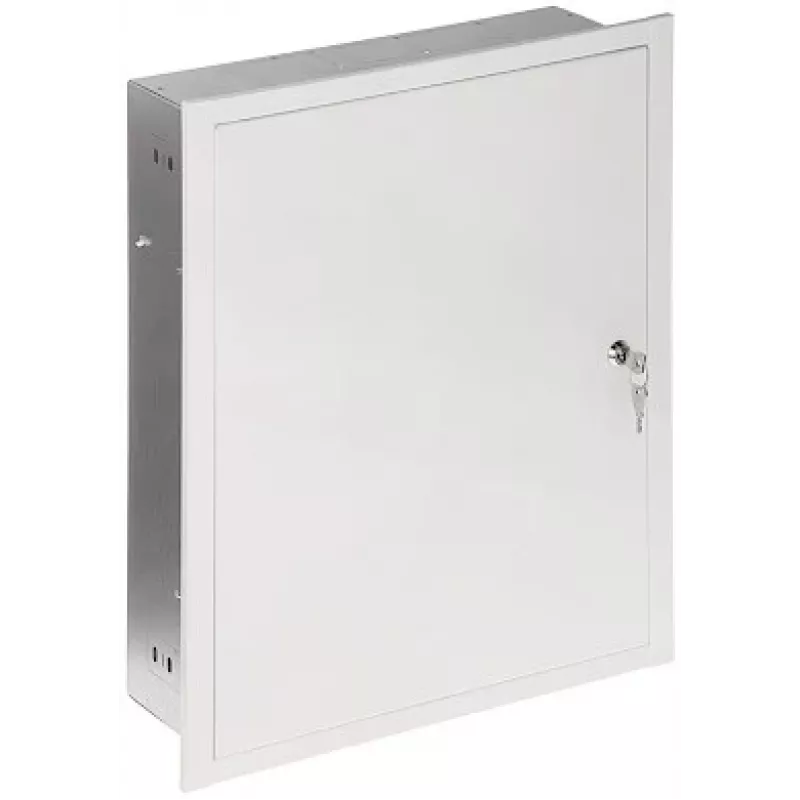

Caja empotrable MB-OMP5 539 x 444 mm para centrales de alarma SATEL

Flush-mount enclosure for SATEL INTEGRA, VERSA, and PERFECTA series control panels, expansion modules, and power supplies. Its robust welded steel construction and powder-coated white finish provide durable, tamper-protected installation in walls.

Advantages

The MB-OMP5 offers secure recessed mounting with a removable hinged door and screw-fastened locking, protecting against unauthorized access and detachment from the wall. Multiple knock-out openings simplify cable management, while the spacious interior accommodates up to two 17 Ah batteries or one 24 Ah battery.

Suitable for

• SATEL INTEGRA alarm control panels
• SATEL VERSA control panels
• SATEL PERFECTA control panels
• Expansion modules and power supplies
• Indoor security system installations

Key specifications

• External dimensions: 539 x 444 x 120 mm (W x H x D)
• Material: powder-coated steel sheet
• Color: white (RAL 9003)
• IP20 protection rating for indoor use
• Tamper protection against opening and wall detachment
• Supports up to two 17 Ah or one 24 Ah battery
• Removable hinged door with screw fastening
• Multiple knock-out cable entry openings
• Certifications: CE

Recommendations

For professional alarm installations, pair the MB-OMP5 with SATEL control panels and appropriate power supplies to ensure a clean, secure, and serviceable flush-mount setup.
