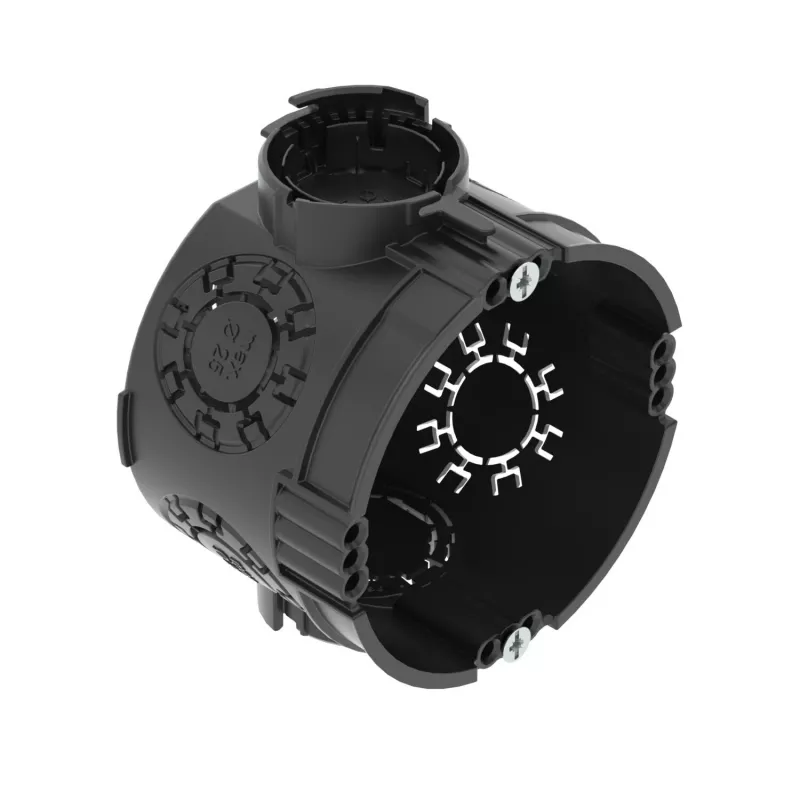

OBO Bettermann 2003701 caja de mecanismo empotrada 60x46 mm, gris, pack de 25

Electricians and installers working on solid masonry or concrete walls will find the OBO Bettermann 2003701 flush-mounted device box a dependable solution for housing sockets, switches, and junction devices. Supplied in a pack of 25, it streamlines large-scale installations in residential and commercial projects.

Key specifications

• Outer diameter: 60 mm
• Installation depth: 46 mm
• Material: polypropylene (PP)
• Colour: grey
• Number of cable entries: 8
• Cable entry compatibility: M20 conduit
• Halogen-free
• Flame retardant, self-extinguishing
• Protection class: IP20
• Temperature resistance: -5 °C to +60 °C
• Standards compliance: DIN EN 60670-1, VDE
• Wall type suitability: solid walls (masonry, concrete)
• Plaster cover included
• Pack quantity: 25 pieces

Why choose it

Its robust polypropylene construction and halogen-free, flame-retardant properties ensure safety and durability. The eight M20 cable entries provide flexible wiring options, while the included plaster cover simplifies finishing work.

Ideal use cases

• Flush-mounting electrical sockets and switches in solid walls
• Creating junction boxes in masonry or concrete structures
• Large-scale residential or commercial electrical installations

Good to know

The box is designed for flush mounting and meets relevant DIN and VDE standards. It is suitable for ambient temperatures from -5 °C to +60 °C.
