OBO BETTERMANN borne de palanca universal 61 HSK45 5 para conductores rígidos/flexibles (2054425)

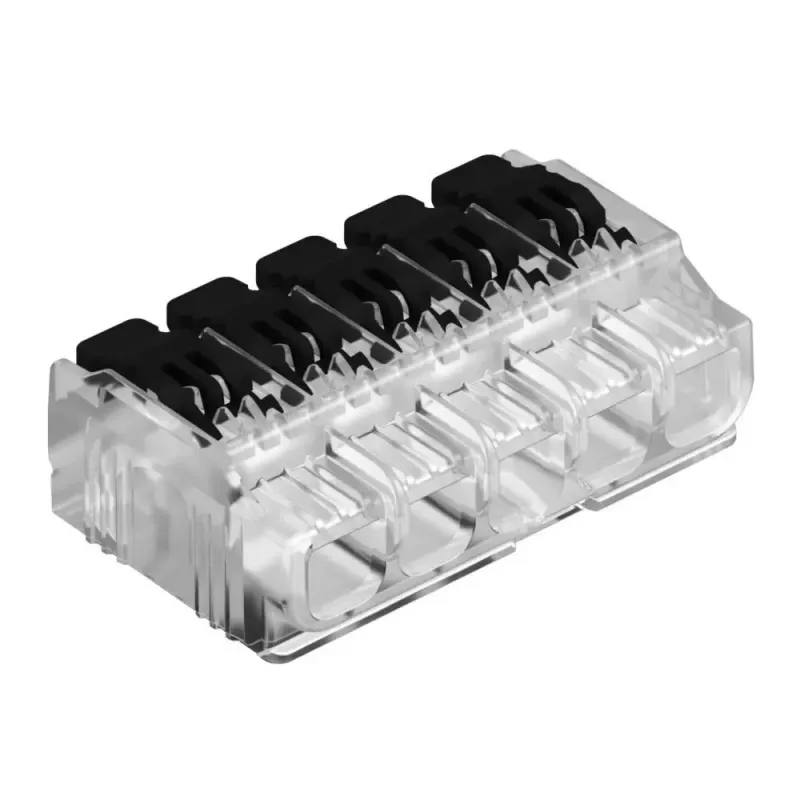

The OBO Universal Lever Clamp 61 HSK45 5 handles five solid or flexible conductors with a 24 A nominal current and 450 V nominal voltage, providing a reliable connection for distribution wiring.

Overview

Part of the 61 HSK series, this lever clamp connects five conductors from 0.5 mm² to 2.5 mm². The lever mechanism allows quick, tool-free push-in termination for both solid and stranded wires.

What stands out

• Five clamping points for multi-wire connections
• Lever clamp for fast, secure push-in termination
• Accepts solid and flexible conductors
• Transparent grey polyamide housing for visual inspection
• Rated for 450 V / 24 A

Technical details

• Number of clamping points: 5
• Nominal cross-section: 0.5 - 2.5 mm² (rigid and flexible)
• Nominal voltage: 450 V
• Nominal current: 24 A
• Connection type: Lever clamp (push-in)
• Conductor type: Solid and stranded
• Insulation material: Polyamide (PA)
• Colour: Transparent / Grey
• Stripping length: 9 - 10 mm
• Max. continuous operating temperature: 105 °C
• Pollution degree: 2
• Rated impulse voltage: 4 kV
• Flammability rating: UL 94 V-2
• Approvals: VDE, ENEC
• Mounting type: Free wiring

Our verdict

A compact, tool-free lever clamp for connecting up to five conductors in electrical installations, with a transparent housing for easy inspection.
