OBO BETTERMANN caja de empotrar para aparatos 71GDCEE para tomas CEE 117x76,5x73 6288635

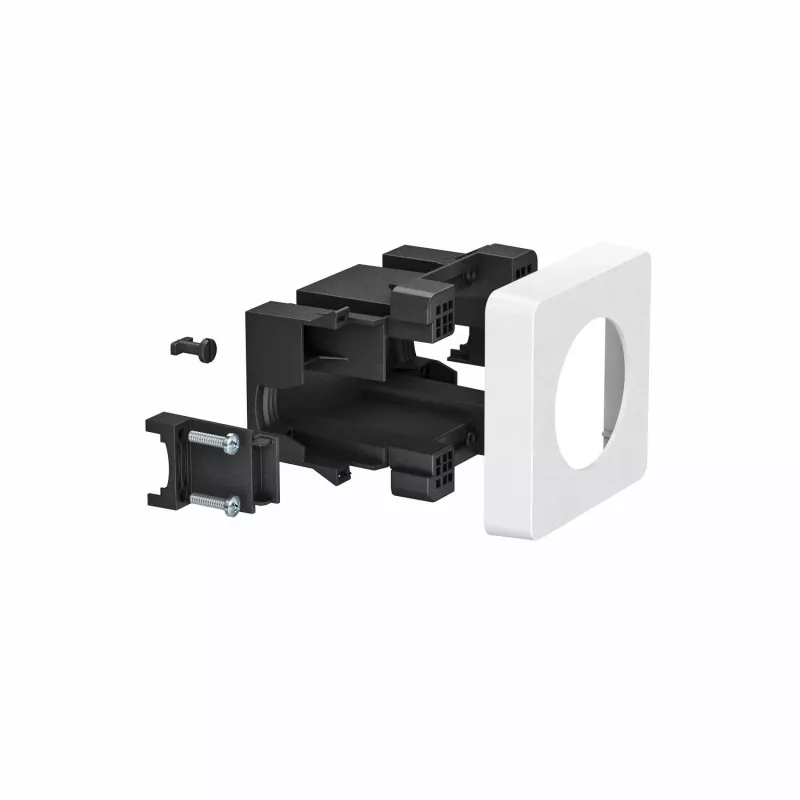

Device installation box for CEE plug devices, flush-mounted, made of polycarbonate in light grey (RAL 7035), suitable for sockets up to 32 A. The box provides a secure and durable housing for industrial sockets in demanding environments.

Advantages

Halogen-free polycarbonate construction ensures safety and durability. The box withstands impacts up to IK07 and operates reliably from -5 °C to +60 °C. Pre-punched cable entries allow quick installation without special tools.

Suitable for

• CEE plug devices and industrial sockets up to 32 A
• Flush-mounted installations in walls or panels
• Industrial and commercial applications requiring IP44 protection

Key specifications

• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Protection class: IP44
• Impact resistance: IK07
• Halogen-free: Yes
• Glow wire test: 650 °C
• Operating temperature: -5 °C to +60 °C
• Cable entries: 2x M20/M25
• Internal depth: approx. 68 mm
• Cover fastening: Screw-on
• Standards: DIN EN 60670-1, DIN EN 60670-22

Recommendations

For reliable installation of CEE sockets, pair this box with compatible OBO BETTERMANN covers and cable glands to maintain IP44 protection.
