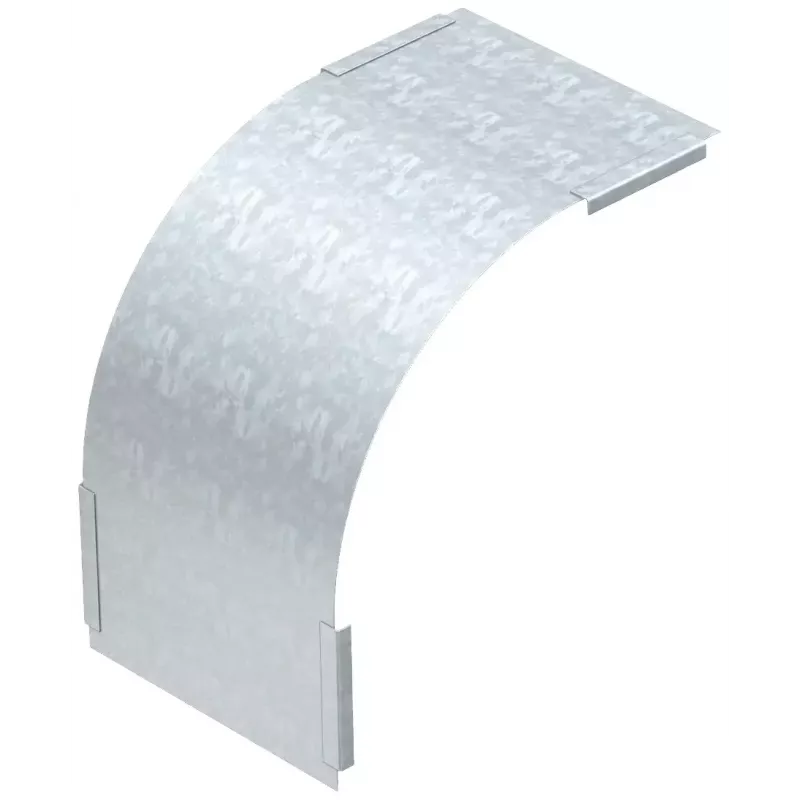

OBO BETTERMANN tapa para codo vertical DBV 60 100 f FS descendente (7130852)

Hot-dip galvanized steel cover for the OBO Bettermann FS cable tray system, designed for vertical descending bends with 100 mm width and 60 mm side height.

Overview

The OBO BETTERMANN Cover for Vertical Bend DBV 60 100 f FS is a robust accessory for cable tray installations. It is specifically engineered to fit vertical descending bends in the FS series, providing reliable protection and containment for cables in both indoor and outdoor environments.

What stands out

• Compatible with 100 mm wide cable trays with 60 mm side height
• Hot-dip galvanized steel for excellent corrosion resistance
• Quick-fastening clip-on design for easy installation
• Suitable for vertical descending bends (fallend)

Technical details

• Material: Steel
• Surface treatment: Hot-dip galvanized
• Compatible cable tray width: 100 mm
• Compatible side height: 60 mm
• Bend direction: Vertical descending
• Bend angle: 90 degrees
• System: OBO Bettermann FS

Our verdict

A durable and precise-fit cover that ensures long-term cable protection in demanding installations.
