Panel de parcheo 1U DeLOCK 43320

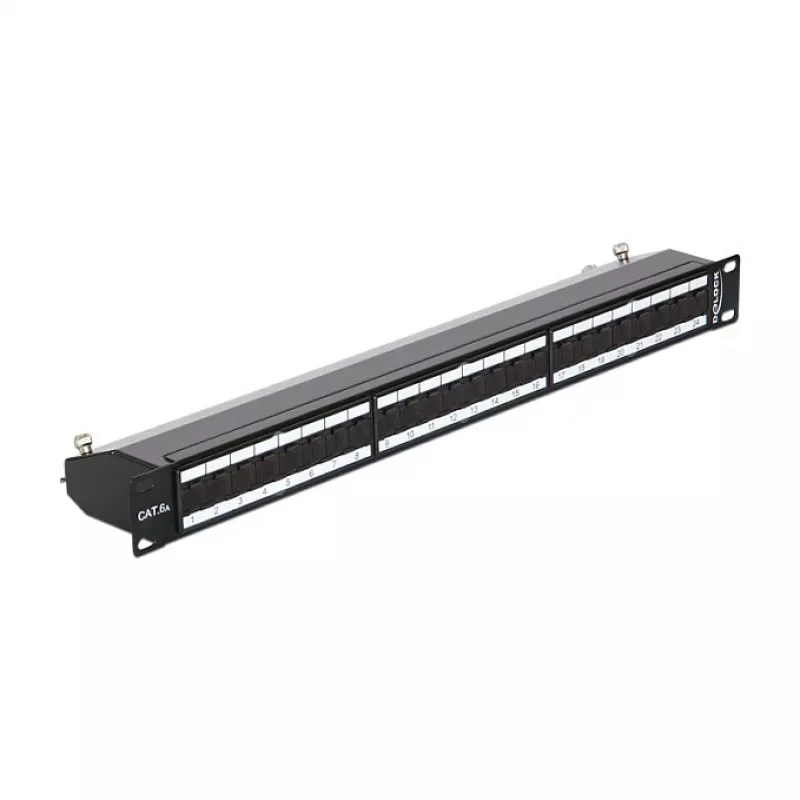

The DeLOCK 43320 patch panel is a 1U rack-mounted module for structured cabling that supports up to 24 Cat6a network connections. Made of durable metal with a black finish, it provides 24 RJ-45 termination points in a compact 483 mm × 44 mm × 109 mm housing, suitable for standard 19" racks and professional network cabinets.

Advantages

This patch panel offers a consolidated, space-saving solution for terminating and organizing Cat6a cables in a 19" rack. The metal construction ensures mechanical durability and long-term reliability, while the 24-port layout simplifies cable management and reduces clutter in patching fields. Compatible with punch-down (LSA) termination, it facilitates secure, low-resistance connections.

Suitable for

• Data centers and server rooms
• Small and medium business network racks
• Structured cabling installations using Cat6a cables
• Telecommunications closets and IT cabinets

Key specifications

• Model: DeLOCK 43320
• Rack units: 1U
• Ports: 24 RJ-45 (LSA punch-down)
• Cable category: Cat6a
• Material: Metal
• Colour: Black
• Dimensions (W×H×D): 483 × 44 × 109 mm
• Mounting: 19" rack
• MPN: 43320
• EAN: 4043619433209

How to use

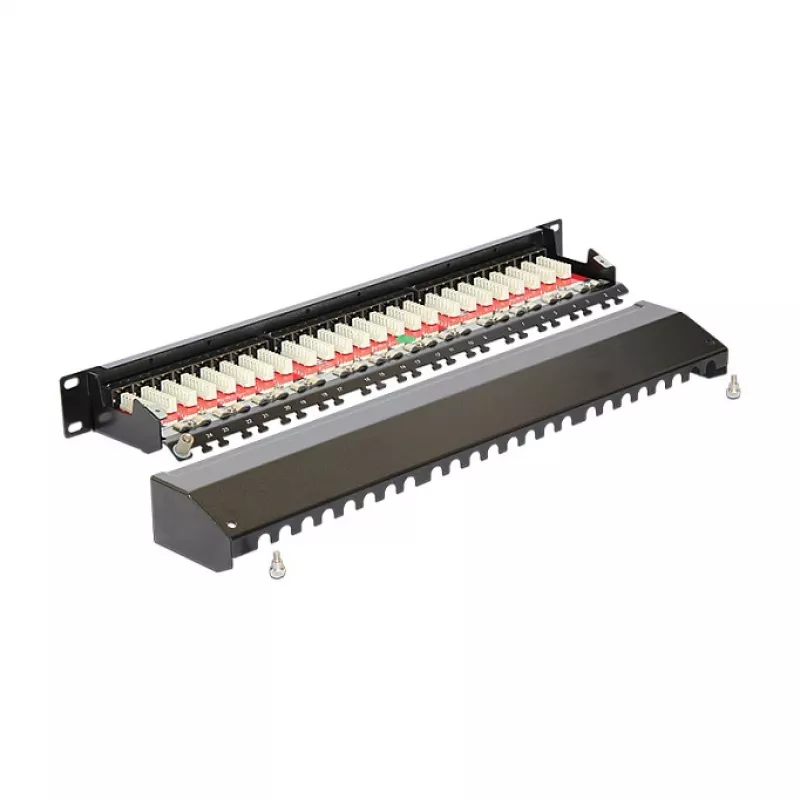

Mount the patch panel into a standard 19" rack at the desired 1U position using appropriate rack screws. Terminate each Cat6a cable onto the LSA punch-down blocks using a compatible punch-down tool, following the chosen wiring standard (TIA/EIA 568A or 568B). After termination, route and label cables to the corresponding ports to maintain clear identification and organized patching.

Recommendations

For reliable network performance, use Cat6a cables and a proper punch-down tool. Verify wiring pairs and test each connection with a network cable tester after installation. Allow sufficient bend radius for cables and secure cable runs to prevent strain on the terminations.
