Panel de parcheo de empalmes de fibra óptica METZ CONNECT 6 puertos LC-dúplex OM4 1U 19 pulgadas negro 1504677506-F

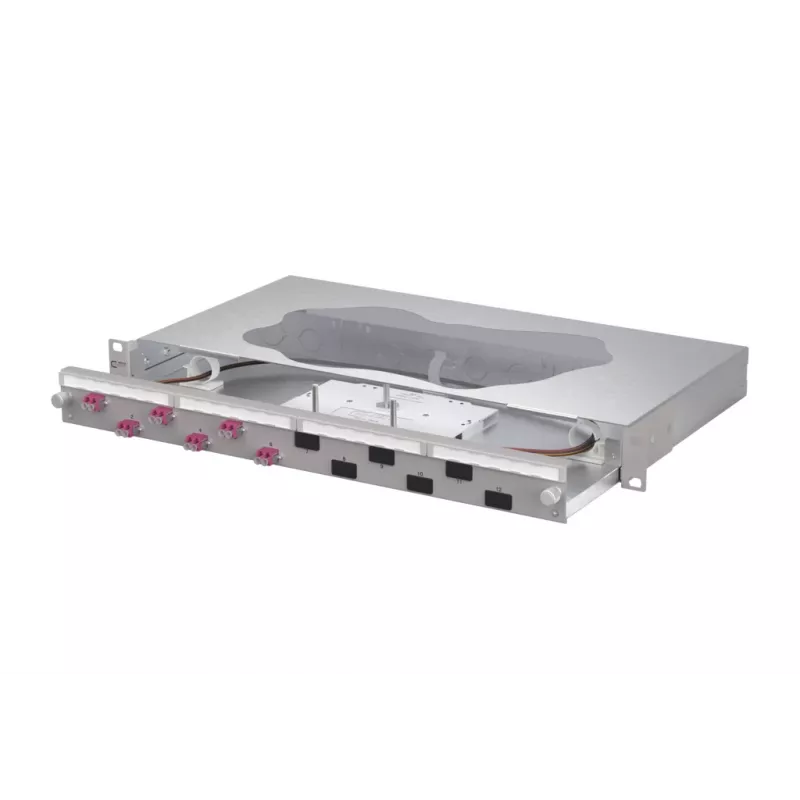

This 19-inch fiber optic splice patch panel from METZ CONNECT offers a robust and efficient solution for terminating up to 12 OM4 multimode fibers in a compact 1U form factor. Equipped with 6 LC-Duplex adapters on the front and an integrated splice cassette, it supports up to 24 crimp splice connections, making it ideal for high-density data center and LAN environments. The powder-coated steel housing in black (RAL 9005) ensures durability, while rear M20/M25 cable glands provide secure cable entry and strain relief.

Advantages

The panel simplifies fiber management with internal routing and labeling strips, reducing installation time and enhancing organization. Its removable front panel allows easy access for maintenance, and the included accessories—cable ties, glands, crimp splice protection, and instructions—provide everything needed for a professional setup. OM4 performance supports high-speed data transmission, future-proofing your network infrastructure.

Suitable for

• Data centers requiring high-density fiber patching
• Enterprise LAN backbones and distribution areas
• Telecommunications rooms with 19" racks
• Installations needing fusion or crimp splicing flexibility

Key specifications

• 6 LC-Duplex adapter ports (12 fibers total)
• Multimode OM4 fiber compatibility
• 1U rack mount height, 19-inch standard
• Integrated splice cassette for up to 24 crimp splices
• Black powder-coated steel housing
• Rear cable entry via M20/M25 glands
• Indoor use only

Recommendations

Pair this panel with OM4 LC patch cords and pre-terminated trunk cables for a complete, high-performance fiber optic infrastructure. Always verify rack space and cable management requirements before installation.
