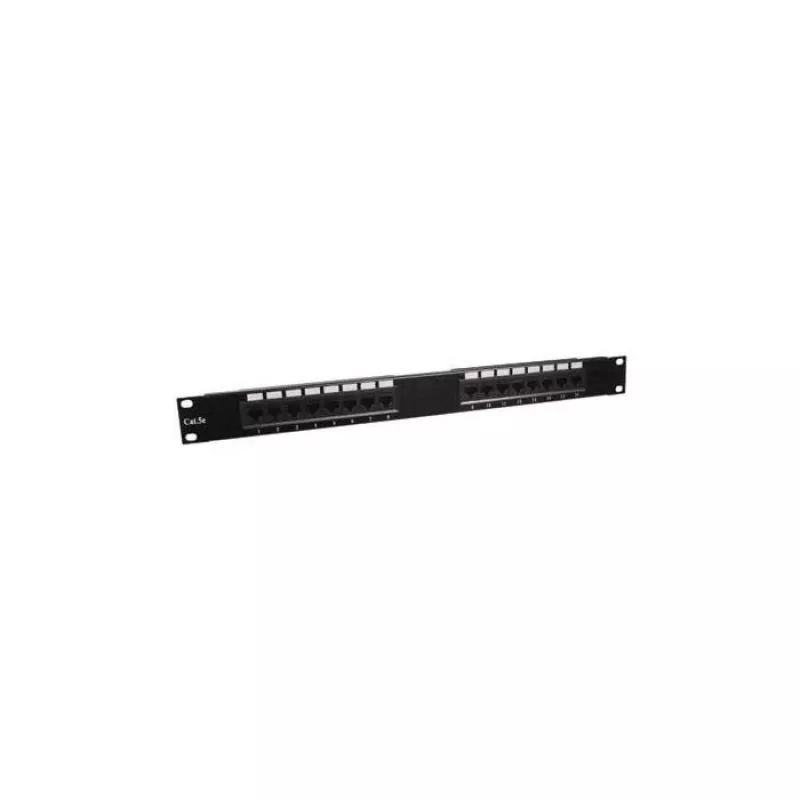

Panel de parcheo DSIT DS-Patch5-16UTP 19" 1U CAT5e UTP de 16 puertos, negro

The DSIT DS-Patch5-16UTP stands out in the crowded field of network infrastructure with its uncompromising build quality and straightforward, tool-friendly design. While many patch panels cut corners on materials or force proprietary termination methods, this 16-port 19-inch unit pairs a rugged steel chassis with universally compatible 110/Krone IDC blocks, ensuring it slots into virtually any existing cabling workflow without friction. Rated for Gigabit Ethernet and fully backward compatible with legacy CAT5 and CAT3 installations, it delivers the headroom needed for modern LAN demands while remaining a drop-in upgrade for older sites.

Highlights

• 16 RJ45 ports on a 1U rackmount footprint, maximizing density without sacrificing accessibility
• Unshielded CAT5e performance supports data rates up to 1000 Mbps (IEEE 802.3ab)
• Rear IDC termination accepts both 110 and Krone punch-down tools, eliminating adapter costs
• Phosphor bronze contacts with gold plating ensure long-term signal integrity and corrosion resistance
• Clearly numbered ports with writeable labeling areas simplify documentation and troubleshooting

In daily use

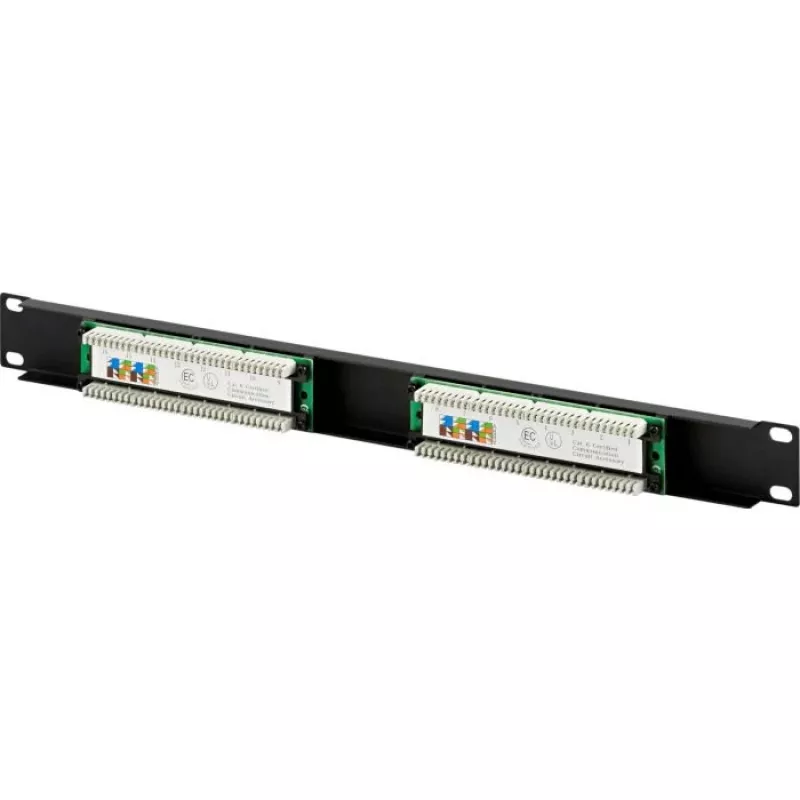

Installing the DS-Patch5-16UTP is refreshingly uncomplicated. The steel frame mounts securely into any standard 19-inch rack or cabinet, and the 1U height keeps cable management tidy even in densely populated enclosures. On the rear, color-coded TIA/EIA 568A/B wiring guides are printed directly on the IDC blocks, reducing termination errors during high-volume punch-downs. The front-facing RJ45 jacks are angled slightly downward to prevent accidental snags when patching, and the writeable port labels let technicians mark VLANs, room numbers, or device names with a simple permanent marker. Whether you are building out a new office LAN or retrofitting an aging telecom closet, this panel’s compatibility with standard tools and existing cable plants means you can complete the job without retraining staff or purchasing specialized hardware.

Full specifications

• Brand: DSIT
• Model: DS-Patch5-16UTP
• MPN: DS-Patch5-16UTP
• EAN: 8718924130780
• Number of ports: 16
• Cable category: CAT5e
• Shielding: UTP (Unshielded Twisted Pair)
• Mounting type: Rackmount
• Rack size: 19-inch
• Rack units: 1U
• Front connector type: RJ45 female
• Rear termination type: IDC (Insulation Displacement Connector)
• Wiring standard: TIA/EIA 568A/B
• Housing material: Steel
• Contact material: Phosphor bronze with gold plating
• Product colour: Black
• Termination tool compatibility: 110 or Krone type punch down tool
• Application: Local Area Network (LAN)
• Data transfer rate: Up to 1000 Mbps (Gigabit Ethernet)
• Backwards compatibility: CAT5, CAT3
• Port labeling: Numbered ports with writeable areas
• Standard compliance: IEEE 802.3ab

Final note

The DS-Patch5-16UTP proves that reliable network infrastructure does not have to be complicated or expensive. Its combination of durable construction, universal termination compatibility, and Gigabit-ready performance makes it a smart choice for installers and IT managers who value practicality over marketing hype.
