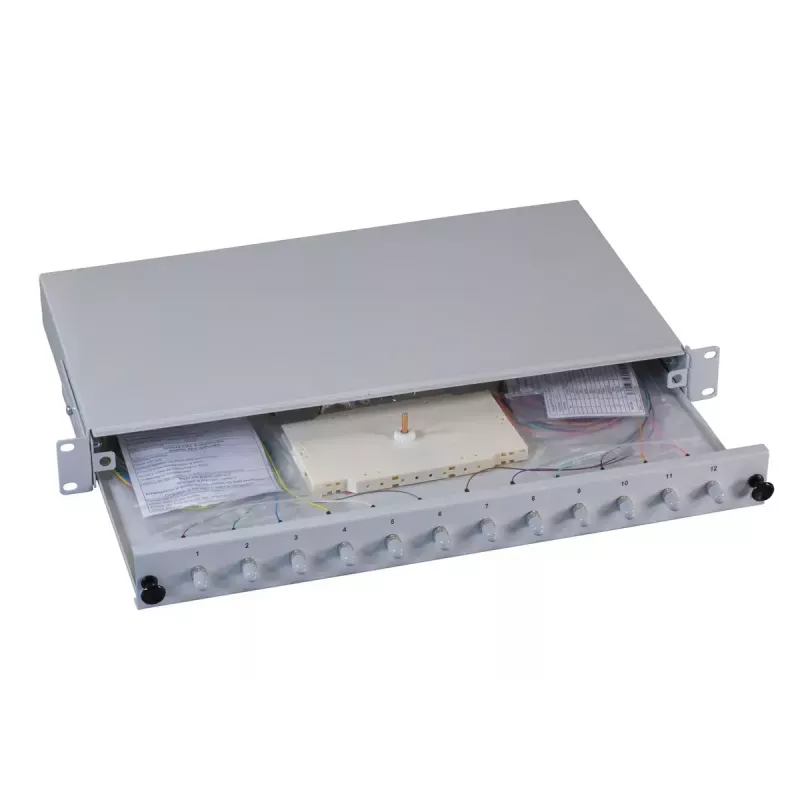

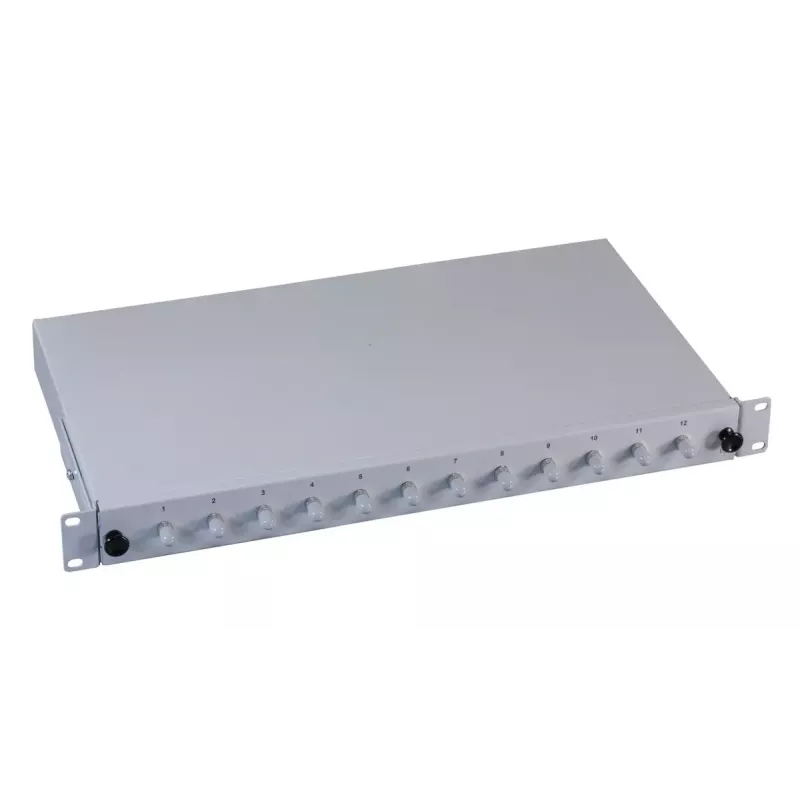

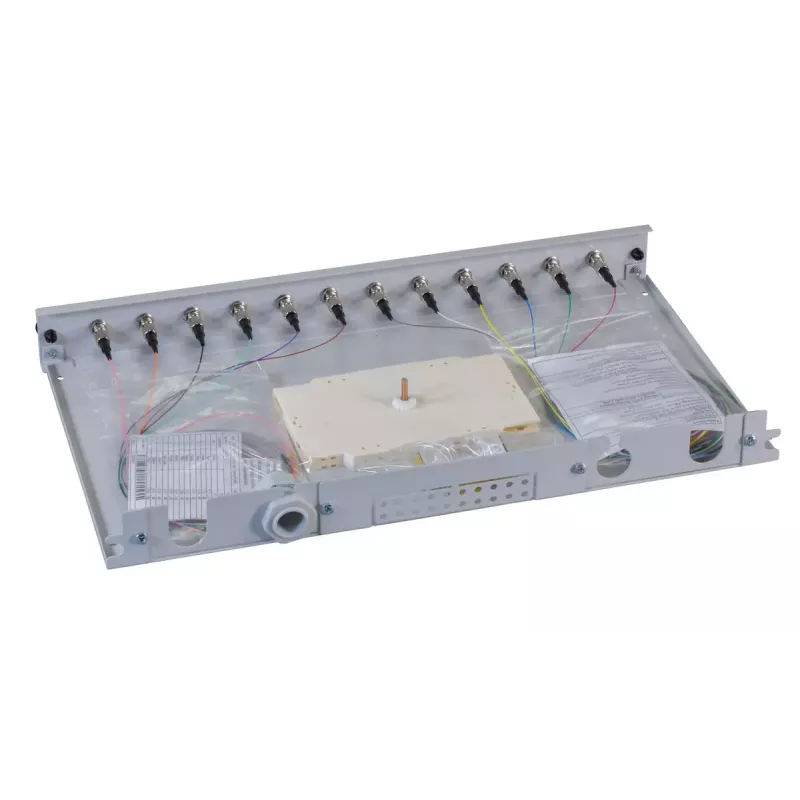

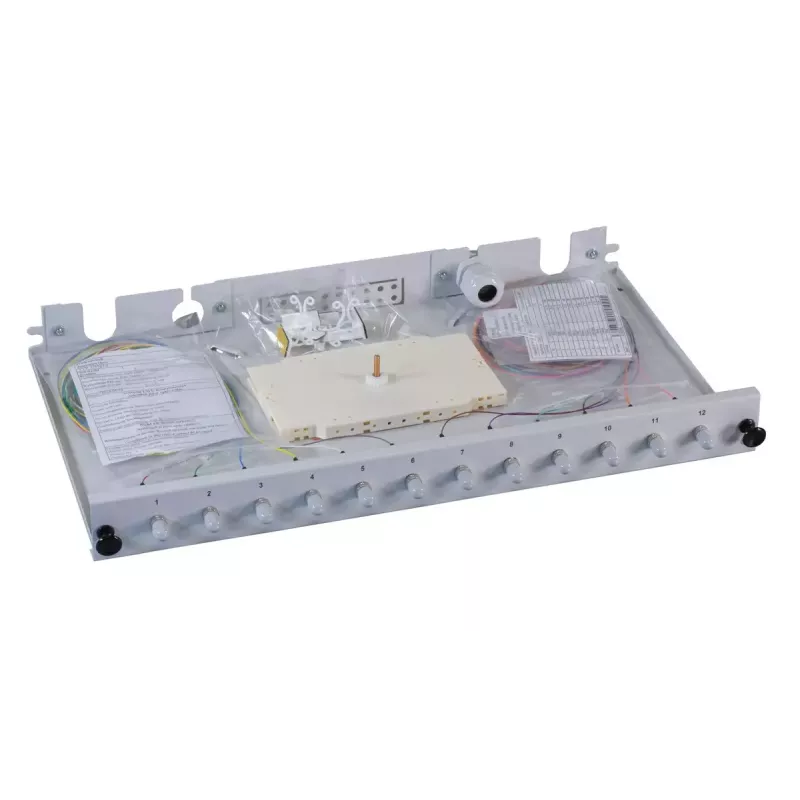

Patch panel 1U EFB Elektronik B71006.12OM4 — conector de fibra óptica ST, metal, 483×44,5×244 mm

The EFB Elektronik 1U metal patch panel B71006.12OM4 with ST fiber connectors is a rack-mountable module designed to organize and protect fiber terminations in 19" equipment racks. With external dimensions of 483×44.5×244 mm and a grey finish, the unit provides a compact, robust housing for up to 12 ST-type fiber terminations. The panel is intended for structured cabling systems in telecommunications, data centers and office networks where reliable fiber connection and orderly cable routing are required.

Advantages

The metal construction offers mechanical durability and shielding against minor impacts, while the 1U format conserves rack space. Preinstalled ST connectors simplify field termination and reduce installation time. The front-facing layout provides easy access for patching and maintenance, and the neutral grey coating ensures compatibility with standard rack aesthetics. The overall design supports organized cable management and helps prevent strain on fiber connections.

Suitable for

• Telecommunications equipment racks in central offices or exchanges
• Server rooms and data center fiber distribution panels
• Office network backbones and structured cabling closets
• Laboratory and test environments requiring ST-style fiber terminations

Key specifications

• Form factor: 1U rack-mount panel for 19" racks
• Connector type: ST fiber optic connectors, up to 12 ports
• Material: metal housing for mechanical protection
• Finish: grey coating for standard rack integration
• External dimensions: 483 × 44.5 × 244 mm (W × H × D)
• Mounting: front-mounted with standard rack screw locations

How to use

Install the patch panel into a standard 19" rack at an appropriate height and secure with rack screws. Route fiber cables to the rear cable entry, taking care to maintain minimum bend radii and avoid excessive tension on the fibers. Terminate or connect fibers to the ST connectors at the front panel, then label each port for identification. Use compatible pigtails or patch cords to link the panel ports to active equipment or distribution panels. Perform optical tests after installation to confirm continuity and acceptable attenuation levels.

Recommendations

Handle fiber connectors with clean hands and use proper cleaning tools to avoid contamination. Maintain bend radius guidelines for the specific fiber type used, secure cables with strain relief near the panel, and perform regular inspections of connectors and cable routes to ensure reliable network performance.
