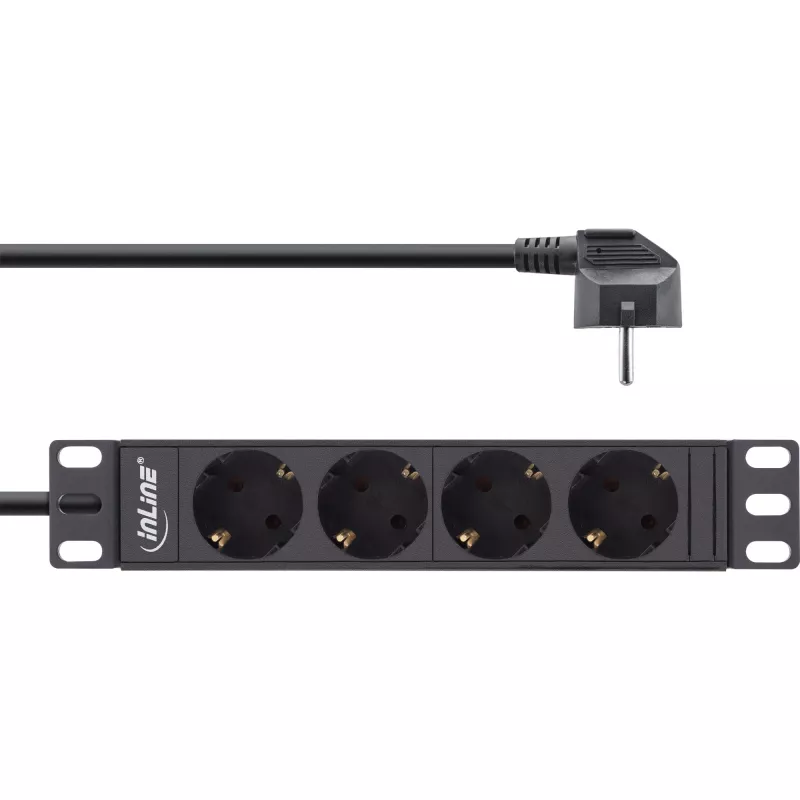

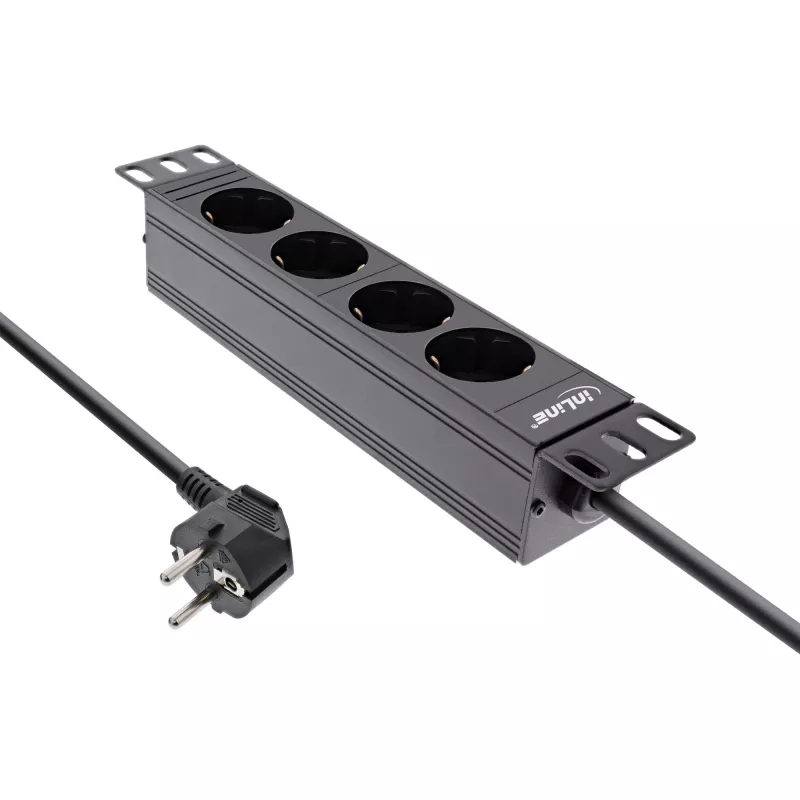

PDU de 10" InLine, 4 tomas schuko, sin interruptor, 2 m, negra

The InLine PDU 10" 4-way earthing contact without switch is a compact power distribution unit designed for installation in a 10" network cabinet. It provides four Type F AC outlets fed from a single-phase input, with a 2 m power cable and a rated maximum current of 16 A (up to 3680 W). Its dimensions (254 mm × 45 mm × 45 mm) and black finish make it suitable for space-saving rack mounting and professional network environments.

Advantages

This PDU delivers reliable basic power distribution for rack-mounted equipment, combining a small footprint with a standard Type F earthing contact configuration. The 2 m cable provides flexible positioning inside cabinets, and the 16 A rating supports typical single-phase loads. Built to fit 10" cabinets, it simplifies power management for network, server and telecom installations.

Suitable for

• Mounting in 10" network and server cabinets
• Powering small network switches, routers and patch panels
• Supplying power to telecom equipment and compact servers
• Basic rack power distribution in offices and server rooms

Key specifications

• Brand: InLine
• Model / MPN: 16420J
• EAN: 4043718302970
• Type: Basic PDU (no switch)
• AC outlets: 4 × Type F
• Maximum current: 16 A
• Maximum power: 3680 W
• Cable length: 2 m
• Surge protection rating: 16420J
• Colour: Black
• Dimensions (W × D × H): 254 mm × 45 mm × 45 mm

How to use

Install the PDU into a compatible 10" rack or cabinet using appropriate mounting points. Connect the unit to a single-phase mains outlet using the attached 2 m cable with Type F plug. Plug required devices into the four AC outlets, ensuring that the combined current does not exceed 16 A (total maximum power 3680 W). Since the unit has no switch, power control must be handled at the mains connection or via external switched devices.

Recommendations

Do not exceed the rated 16 A load. Distribute connected equipment to avoid overloading a single outlet, and ensure the cabinet has adequate ventilation. For protection against severe surges or advanced power management, consider PDUs with higher-level surge protection or switched/monitored features.
