PDU de rack Lanview LVR-2MSCH-SCH-C13-4 – Unidad de distribución de corriente Lanview modelo LVR-2MSCH-SCH-C13-4

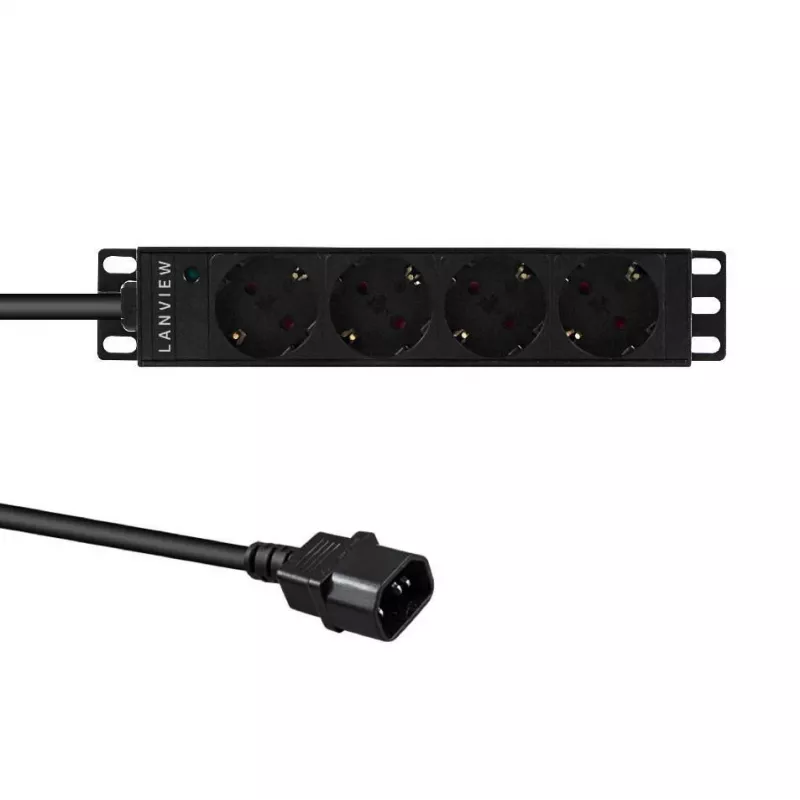

Lanview LVR-2MSCH-SCH-C13-4 is a 1U, 10" rack-mount power distribution unit designed for installation in 19" server cabinets and network racks. It provides centralized power distribution with four Schuko sockets and a C14 input plug, housed in a lightweight aluminum chassis with a frontal mounting design and a built-in indicator light.

Advantages

The PDU's low-weight aluminum chassis simplifies handling and installation in rack environments. A frontal installation layout allows accessible connection and cable routing, while the built-in indicator light provides a simple visual status of power. The included two-metre power cord with C14 plug enables straightforward connection to standard rack power sources.

Suitable for

• Server cabinets in data centers
• Network racks in server rooms
• Telecom and network closets
• IT equipment that requires multiple Schuko outlets

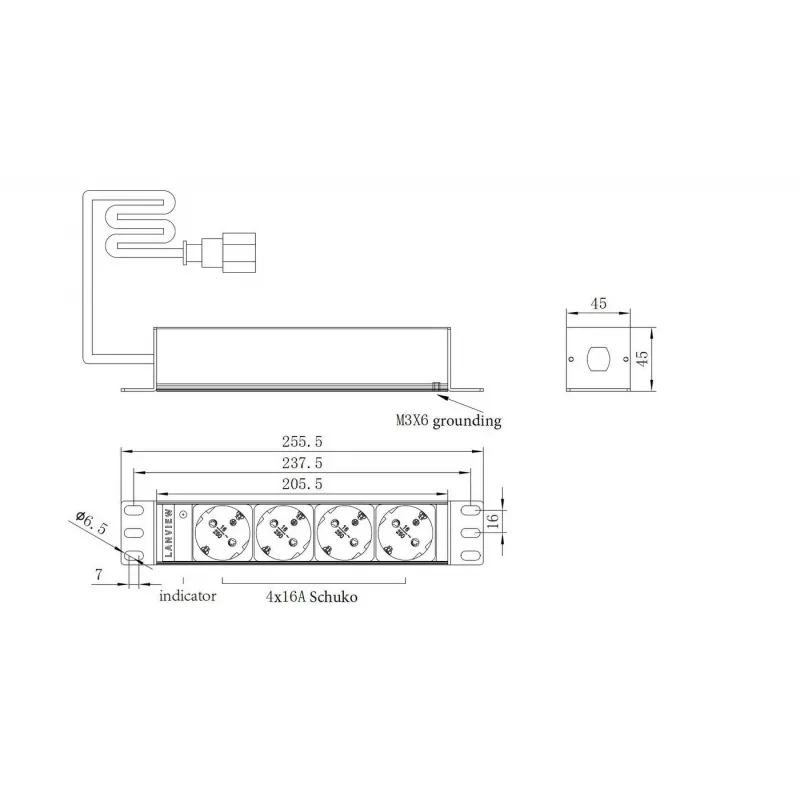

Key specifications

• Form factor: 1U, 10" rack-mount
• Input connector: C14 plug with 2 m power cord
• Output sockets: 4 × Schuko (Type F) sockets
• Chassis material: lightweight aluminum
• Installation: frontal mounting for 19" racks
• Indicator: built-in light indicator
• Rated current: 16 A

How to use

Mount the unit in a 19" rack using the frontal installation points, route the power cord to a compatible AC source and connect the C14 plug. Plug equipment into the Schuko sockets and verify the built-in indicator light shows power is present. Ensure the total connected load does not exceed the rated 16 A current.

Recommendations

For reliable operation, distribute connected devices across sockets to avoid overloading a single outlet, maintain proper ventilation around the rack-mounted PDU, and periodically inspect the power cord and sockets for wear or damage. Use within environments appropriate for IT equipment such as server rooms and data centers.
