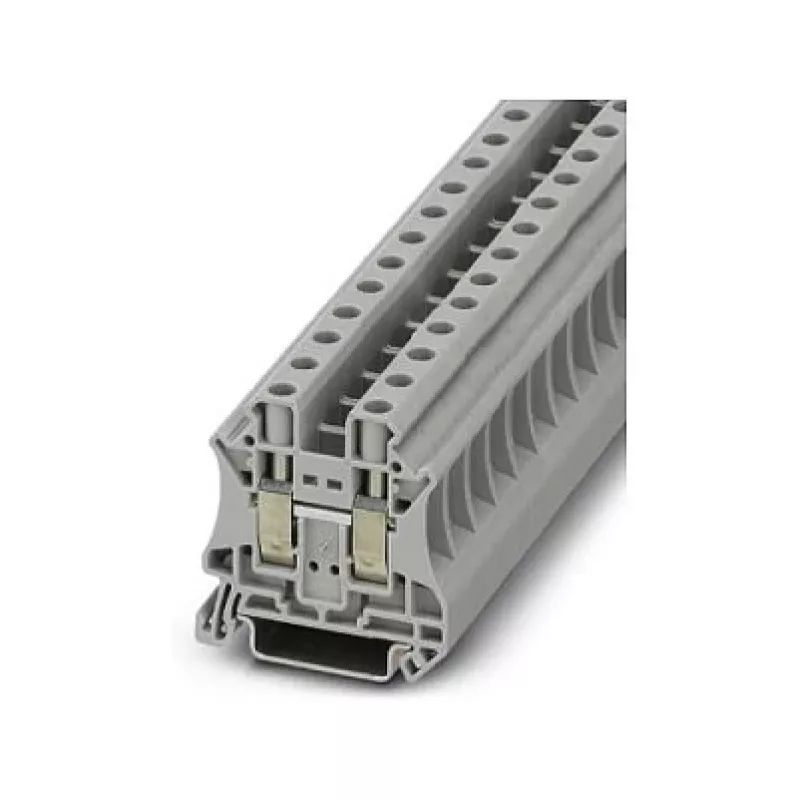

Phoenix 3044160 borne de paso UT 10 - conexión por tornillo, 10 mm², gris

Feed-through terminal block with screw connection for DIN rail mounting, engineered for reliable power distribution in industrial control panels. The UT 10 handles up to 57 A and 1000 V, making it a robust choice for demanding applications.

Advantages

The Phoenix Contact UT 10 offers a compact, one-level design with a nominal cross-section of 10 mm², accommodating wires from 20 to 6 AWG. Its polyamide housing is flame-retardant (UL 94 V0) and operates across a wide temperature range from -60 °C to 105 °C, ensuring durability in harsh environments. The screw connection with M4 thread and 1.5–1.8 Nm tightening torque provides a secure, vibration-resistant termination.

Suitable for

• Industrial control panels and switchgear
• Power distribution in machinery and automation systems
• Building installation and energy management
• Applications requiring high current and voltage ratings

Key specifications

• Type: Feed-through terminal block
• Connection: Screw connection, 2 positions, 1 level
• Nominal cross-section: 10 mm² (AWG 20–6)
• Rated voltage/current: 1000 V / 57 A (IEC)
• Mounting: DIN rail NS 35/7.5 or NS 35/15
• Housing: Polyamide, gray, UL 94 V0
• Approvals: IEC 60947-7-1, UL, CSA, VDE, EAC, cULus
• Wire stripping length: 12 mm, screw thread M4

Recommendations

For reliable and safe connections in high-power circuits, the Phoenix UT 10 is an excellent choice. Pair with compatible end covers and markers for organized installations.
