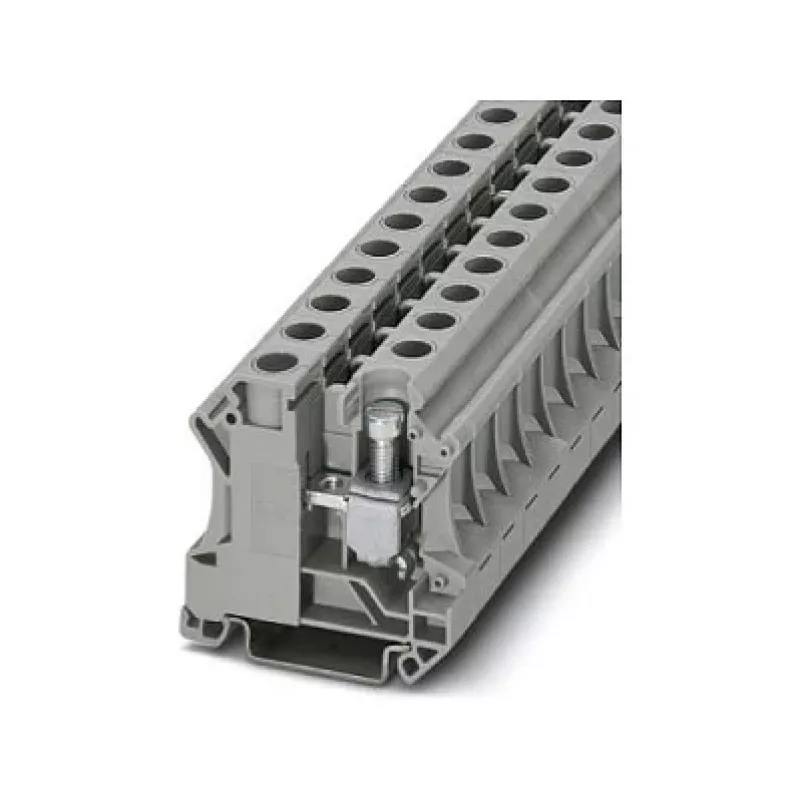

Phoenix 3073827 UTI 16 Borne de instalación

The Phoenix 3073827 UTI 16 installation terminal block provides a robust screw connection for reliable wiring in industrial applications. Its high current rating of 76 A and voltage rating of 1000 V make it suitable for demanding power distribution tasks. The gray polyamide housing ensures durability and safety with a V0 flammability rating.

Advantages

This terminal block features a compact design for DIN rail mounting, allowing efficient use of space in control cabinets. The screw connection accommodates conductors from 0.5 mm² to 16 mm² (solid or stranded), offering flexibility for various wire sizes. The PA insulating material provides excellent mechanical strength and electrical insulation, while the wide operating temperature range from -60 °C to 105 °C ensures performance in harsh environments.

Suitable for

• Industrial control panels and power distribution systems
• Building installation and electrical infrastructure
• Applications requiring high current and voltage ratings
• Harsh environments with extreme temperatures

Key specifications

• Rated voltage: 1000 V (IEC/EN)
• Rated current: 76 A
• Conductor cross section: 0.5 mm² to 16 mm² (solid/stranded), up to 6 AWG
• Mounting: DIN rail NS 35/7.5 or NS 35/15
• Stripping length: 12 mm
• Screw thread: M4, tightening torque 1.5–1.8 Nm
• Housing material: Polyamide (PA), flammability UL 94 V0
• Operating temperature: -60 °C to 105 °C

Recommendations

For reliable and safe electrical connections in industrial settings, the Phoenix UTI 16 terminal block is an excellent choice. Its high ratings and robust construction ensure long-term performance. Pair with appropriate end covers and markers for organized installations.
