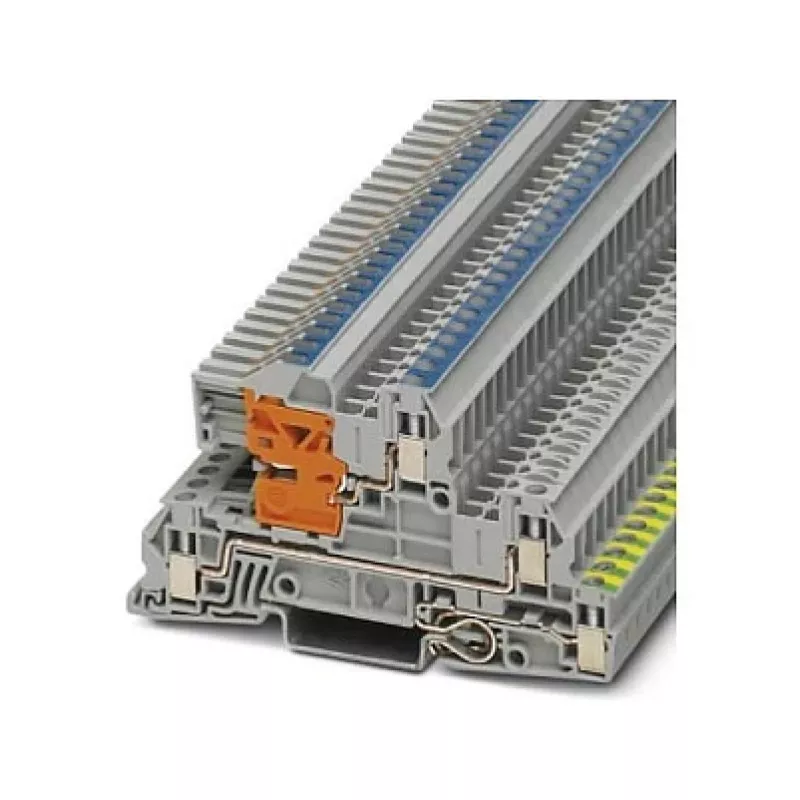

Phoenix 3076028 UTI 2,5-PE/L/NT bloque de bornes de instalación de 3 pisos, conexión por tornillo, 2,5 mm², 400 V, 24 A, montaje en carril DIN, gris

With a rated surge voltage of 6 kV and a pollution degree of 3, this 3-level installation terminal block is built for demanding electrical installations. The Phoenix 3076028 UTI 2,5-PE/L/NT combines protective earth, neutral, and three live connections in a compact DIN rail mountable unit, ensuring safe and efficient power distribution.

Overview

The Phoenix 3076028 UTI 2,5-PE/L/NT is a 3-level installation terminal block designed for DIN rail mounting. It features screw connections for reliable and maintenance-free wiring. The terminal block accommodates solid conductors from 0.2 to 4 mm² and stranded conductors from 0.2 to 2.5 mm² (AWG 24-12). With a nominal cross section of 2.5 mm², it is rated for 400 V and 24 A according to IEC standards.

What stands out

• Three levels in one block: PE, N, and 3x L connections for complete circuit wiring.
• High surge voltage rating of 6 kV for enhanced safety in transient conditions.
• Wide operating temperature range from -60 °C to 105 °C for harsh environments.
• Flammability rating UL 94 V0 ensures self-extinguishing properties.
• Color-coded levels: grey housing, green/yellow PE, blue N for easy identification.

Technical details

• Connection method: Screw connection, M3 thread, tightening torque 0.5-0.6 Nm.
• Stripping length: 9 mm.
• Mounting type: DIN rail NS 35/7.5 or NS 35/15.
• Insulating material: Polyamide (PA).
• Degree of pollution: 3.
• Rated voltage (IEC): 400 V; rated current (IEC): 24 A.
• Conductor cross section: solid 0.2-4 mm², stranded 0.2-2.5 mm², AWG 24-12.

Our verdict

A robust and versatile terminal block that simplifies installation with its integrated PE/N/L configuration. Ideal for industrial control panels and building installations where space and reliability are critical.
