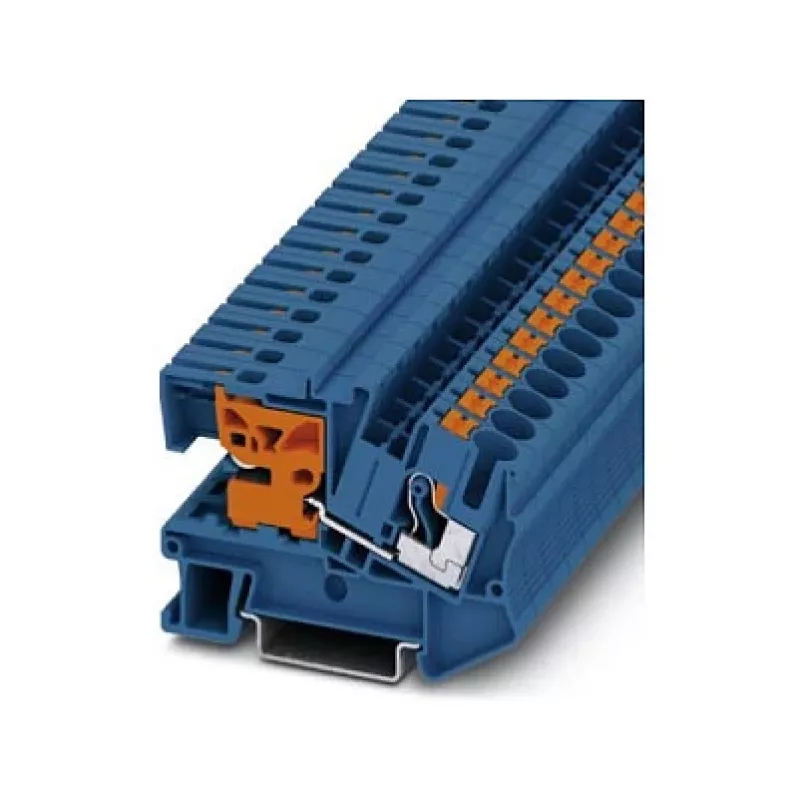

Phoenix 3213967 borne de seccionamiento N PTN 6, Push-in, 6 mm², 500 V, 41 A, gris

The Phoenix PTN 6 N-disconnect terminal block stands out with its push-in connection technology, enabling tool-free wiring for solid and ferruled conductors up to 6 mm². Unlike screw-clamp alternatives, it reduces installation time by up to 50% while maintaining a secure, gas-tight contact. The integrated disconnect slide allows safe circuit isolation without removing wiring, making it ideal for testing and maintenance in control panels.

Highlights

• Push-in connection for fast, tool-free wiring of solid and ferruled conductors
• Disconnect slide provides quick circuit isolation for testing and commissioning
• Compact 8.2 mm width saves space on DIN rail
• High current rating of 41 A and 500 V nominal voltage for industrial loads
• UL 94 V0 flame-retardant polyamide housing ensures safety
• Wide operating temperature range from -60 °C to +105 °C

In daily use

Mount the PTN 6 on a standard NS 35/7.5 or NS 35/15 DIN rail. Strip conductors to 10 mm and insert them into the push-in ports—no tools required for solid wires or ferruled flexible wires. The disconnect slide can be operated with a standard screwdriver to open or close the circuit, clearly indicating its status. The grey housing blends into most industrial environments, while the PA material resists chemicals and mechanical stress.

Full specifications

• Connection method: Push-in
• Nominal cross section: 6 mm²
• Conductor cross section solid: 0.5–10 mm²
• Conductor cross section flexible: 0.5–6 mm²
• Stripping length: 10 mm
• Nominal voltage: 500 V
• Nominal current: 41 A
• Number of connections: 2
• Number of positions: 1
• Number of levels: 1
• Mounting type: DIN rail NS 35/7.5 or NS 35/15
• Insulating material: PA (Polyamide)
• Flammability rating: V0 (UL 94)
• Operating temperature: -60 °C to +105 °C
• Pollution degree: 3
• Overvoltage category: III
• Standards/Approvals: IEC 60947-7-1, UL, cUL, EAC, VDE

Final note

The Phoenix PTN 6 is a reliable choice for panel builders and maintenance technicians who value speed, safety, and long-term durability in a compact disconnect terminal block.
