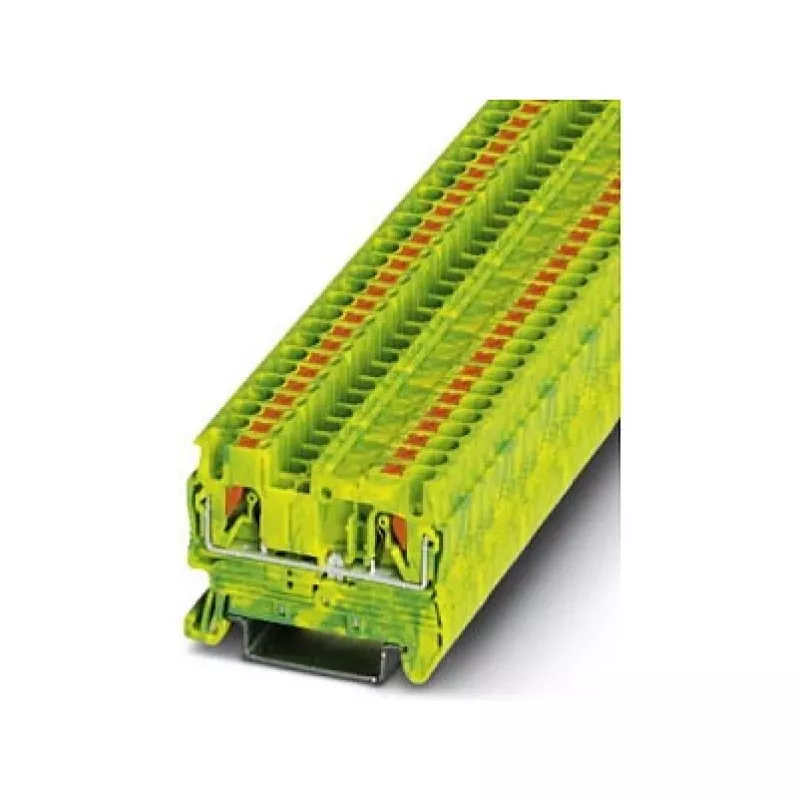

Phoenix Contact PT 2,5-PE Borne de toma de tierra, Push-in, 2,5 mm², verde-amarillo

In industrial control cabinets and building installations, electricians rely on the Phoenix Contact PT 2,5-PE protective earth terminal block to establish safe and reliable grounding connections. This push-in terminal block accommodates conductors from 0.14 to 4 mm² solid and 0.14 to 2.5 mm² stranded, with a nominal cross section of 2.5 mm². Its green-yellow housing clearly identifies it as a PE terminal according to international standards.

Key specifications

• Type: Protective Earth (PE) terminal block
• Connection technology: Push-in
• Nominal cross section: 2.5 mm²
• Conductor cross section solid: 0.14 - 4 mm²
• Conductor cross section stranded: 0.14 - 2.5 mm²
• AWG wire size: 26 - 12
• Number of positions: 1
• Number of connections: 2
• Rated voltage: 1000 V
• Rated current: 24 A
• Mounting type: DIN rail (NS 35/7,5, NS 35/15)
• Housing material: Polyamide (PA)
• Flammability rating: UL 94 V0
• Stripping length: 8 - 10 mm
• Pollution degree: 3
• Overvoltage category: III
• Operating temperature: -60 °C to 105 °C
• Standards/Approvals: IEC 60947-7-2, UL, cUL, EAC, VDE

Why choose it

The push-in connection technology allows for tool-free wiring of conductors with ferrules or solid conductors, significantly reducing installation time. The terminal block is designed for high vibration and shock resistance, ensuring long-term reliability in demanding industrial environments. Its compact dimensions save space on the DIN rail, while the green-yellow color provides clear identification for safety.

Ideal use cases

• Grounding connections in control panels and distribution boards
• Building installation for protective earth circuits
• Machine building and automation systems
• Railway and transportation applications

Good to know

The PT 2,5-PE is part of the Phoenix Contact CLIPLINE complete terminal block system, offering a wide range of accessories for marking, testing, and bridging. It is rated for use in potentially explosive atmospheres (ATEX) when installed according to the relevant guidelines. The terminal block meets the requirements of IEC 60947-7-2 for protective conductor terminal blocks.
