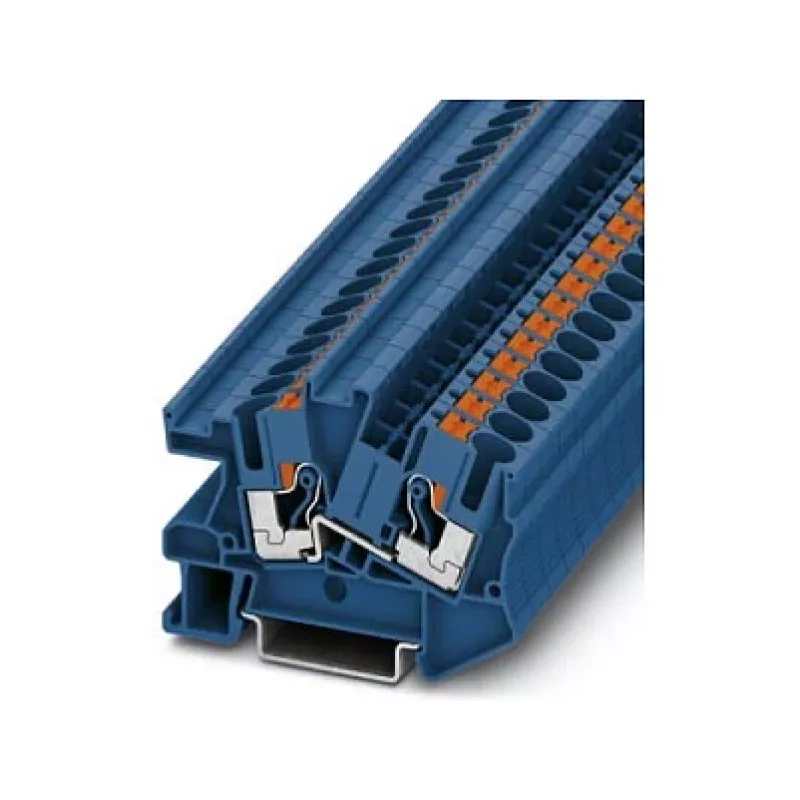

Phoenix Contact PTI 6 BU Borne de instalación push-in, azul, 6 mm², 500 V, 41 A, carril DIN

In industrial control panels and building installations, reliable wire termination is critical for safety and uptime. The Phoenix Contact PTI 6 BU installation terminal block solves this challenge with a push-in connection system that accepts solid and flexible conductors without tools, reducing wiring time and ensuring vibration-proof connections. Its compact 6 mm² design fits standard DIN rails, making it ideal for distribution boards, machine building, and HVAC systems.

Who is it for

Electricians, panel builders, and maintenance technicians who need a fast, secure, and maintenance-free connection for power distribution and control circuits. It suits applications where space is limited but performance cannot be compromised.

Main features

• Push-in connection technology: simply insert stripped conductor – no tools required for solid wires.
• High current capacity: rated for 41 A and 500 V (IEC), suitable for power distribution up to 6 mm².
• Three connection points on one potential: allows easy potential distribution and looping.
• Blue housing for clear identification of neutral conductors or specific circuit groups.
• DIN rail mounting on NS 35/7.5 and NS 35/15, compatible with standard enclosures.
• Flammability class V0 (UL 94) and wide temperature range from -60 °C to +105 °C for harsh environments.

Specifications

• Connection technology: Push-in
• Nominal cross section: 6 mm²
• Nominal voltage (IEC): 500 V
• Nominal current (IEC): 41 A
• Number of connections: 3
• Number of potentials: 1
• Colour: Blue
• Mounting type: DIN rail NS 35/7,5, NS 35/15
• Insulating material: PA (Polyamide)
• Flammability rating (UL 94): V0
• Operating temperature: -60 °C ... 105 °C
• Conductor cross section solid: 0.5 mm² - 10 mm²
• Conductor cross section flexible: 0.5 mm² - 6 mm²
• Stripping length: 10 mm
• Rated surge voltage: 6 kV
• Pollution degree: 3
• Overvoltage category: III
• Standards/Approvals: IEC 60947-7-1, VDE, UL, cUL, EAC

Tips

For reliable push-in connections, always strip the conductor to exactly 10 mm and ensure no insulation is trapped. Use a screwdriver to open the clamping spring for flexible conductors without ferrules. The blue colour is ideal for marking neutral conductors in three-phase systems. Combine with end plates and marking tags for a professional panel layout.
