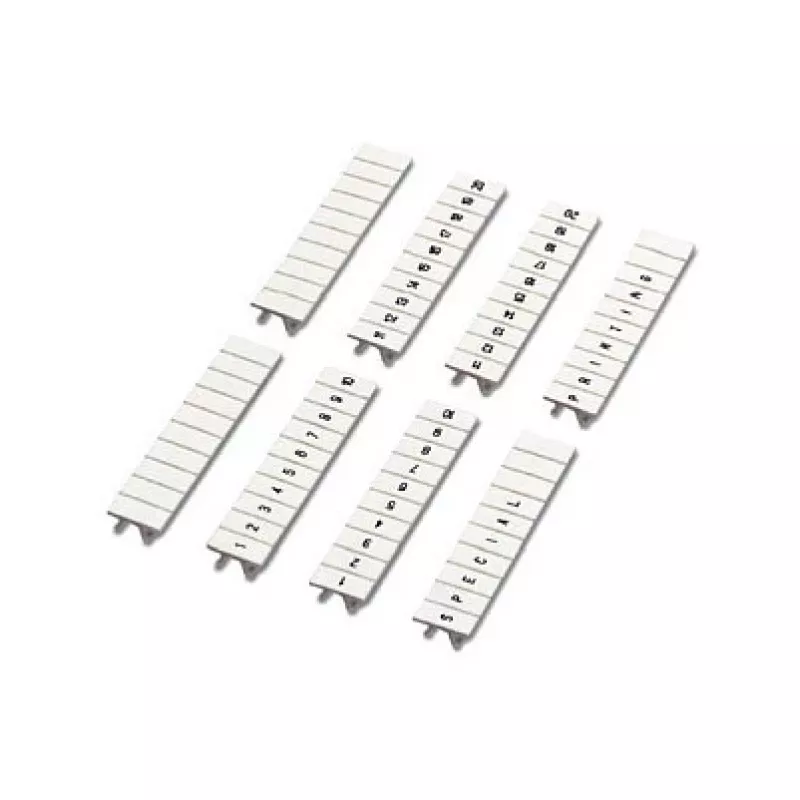

Phoenix Contact ZB 5.2-10 tiras de marcado para regletas de bornes, blancas, 10 marcadores, 5,2 mm de ancho

The Phoenix Contact ZB 5.2-10 terminal block marker strip is a high-quality labeling solution designed for clear and durable identification of terminal blocks. This white marker strip features consecutive numbering from 1 to 10, making it ideal for organized wiring in industrial control panels, automation systems, and electrical installations. Each marker is made from polyamide (PA) and snaps onto the tall marker groove of compatible terminal blocks with a width of 5.2 mm. The markers are resistant to wiping and solvents according to DIN EN 61010-1, ensuring long-lasting legibility in demanding environments.

Advantages

• Clear and permanent labeling with inkjet printing
• Easy snap-on mounting without tools
• Resistant to wiping and solvents for reliable identification
• Halogen-free and RoHS compliant for environmental safety
• Wide operating temperature range from -40 °C to 100 °C

Suitable for

• Industrial control cabinets
• Automation systems
• Electrical distribution panels
• Terminal block wiring identification

Key specifications

• Product Type: Zack Marker Strip
• Color: White
• Number of Markers: 10
• Individual Marker Width: 5.15 mm
• Individual Marker Height: 10.5 mm
• Compatible Terminal Block Width: 5.2 mm
• Mounting Type: Snap-on (Tall Marker Groove)
• Material: Polyamide (PA)
• Operating Temperature: -40 °C to 100 °C
• Flammability Rating: UL 94 V2
• Printing Method: Inkjet
• Resistance to Wiping: Yes (DIN EN 61010-1)
• Resistance to Solvents: Yes (DIN EN 61010-1)
• Halogen-free: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Series: ZB (Zack Band)

Recommendations

For optimal results, use with Phoenix Contact terminal blocks of 5.2 mm width. Ensure the marker groove is clean before installation. Store in a cool, dry place.
