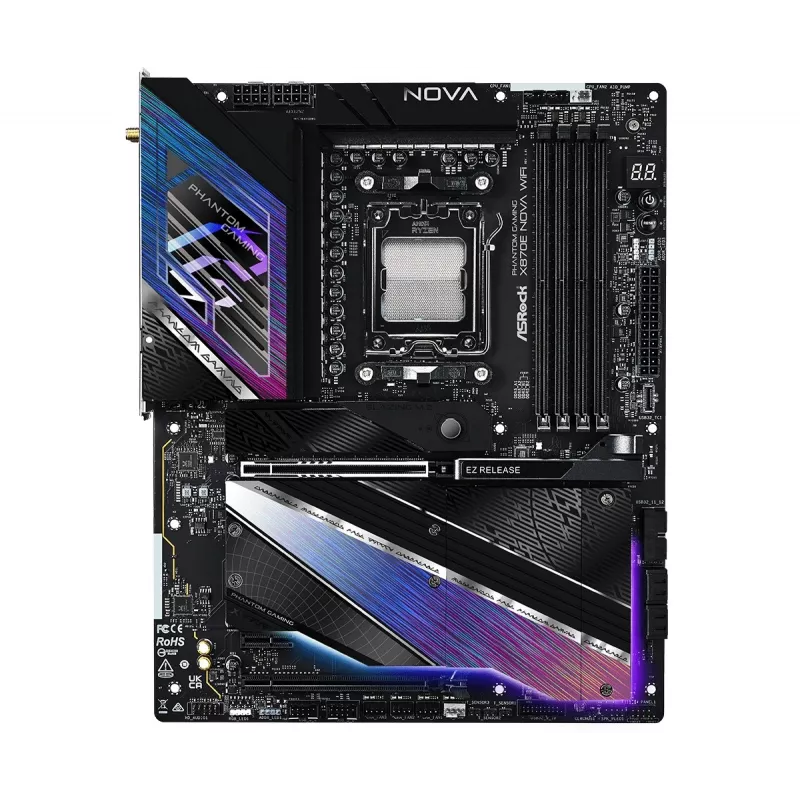

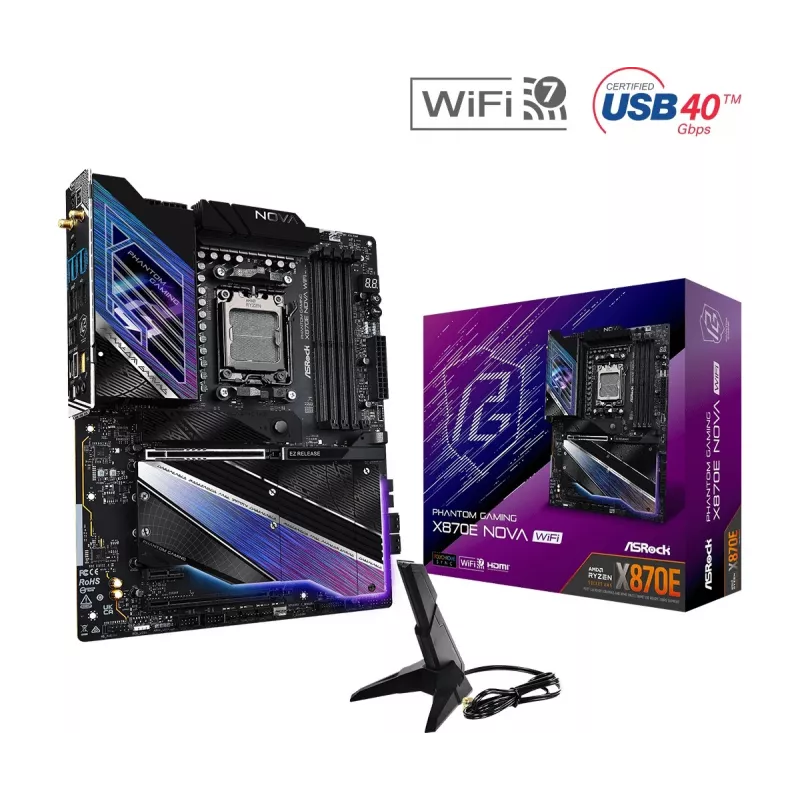

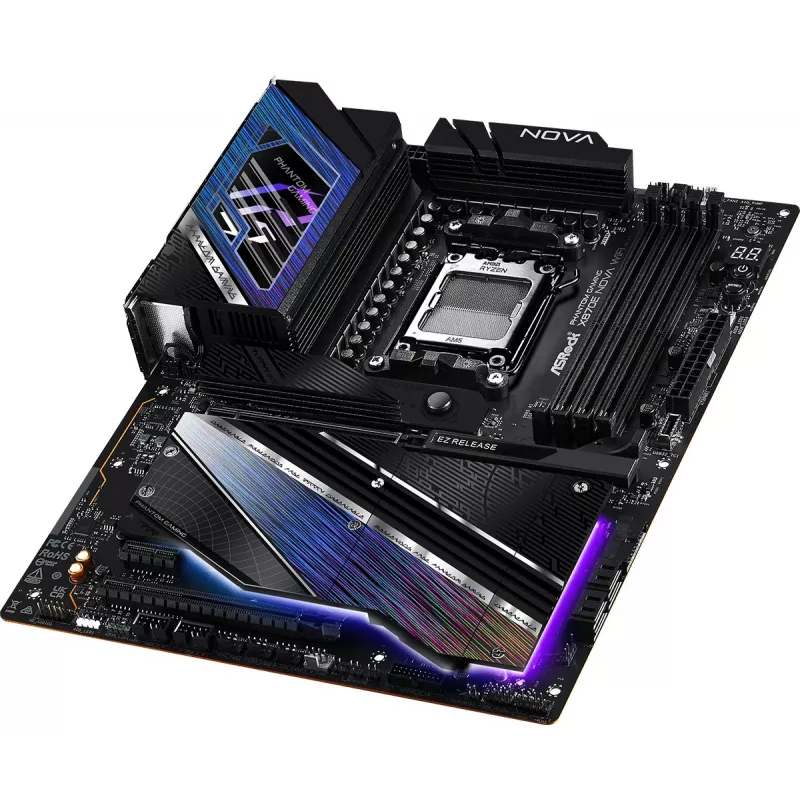

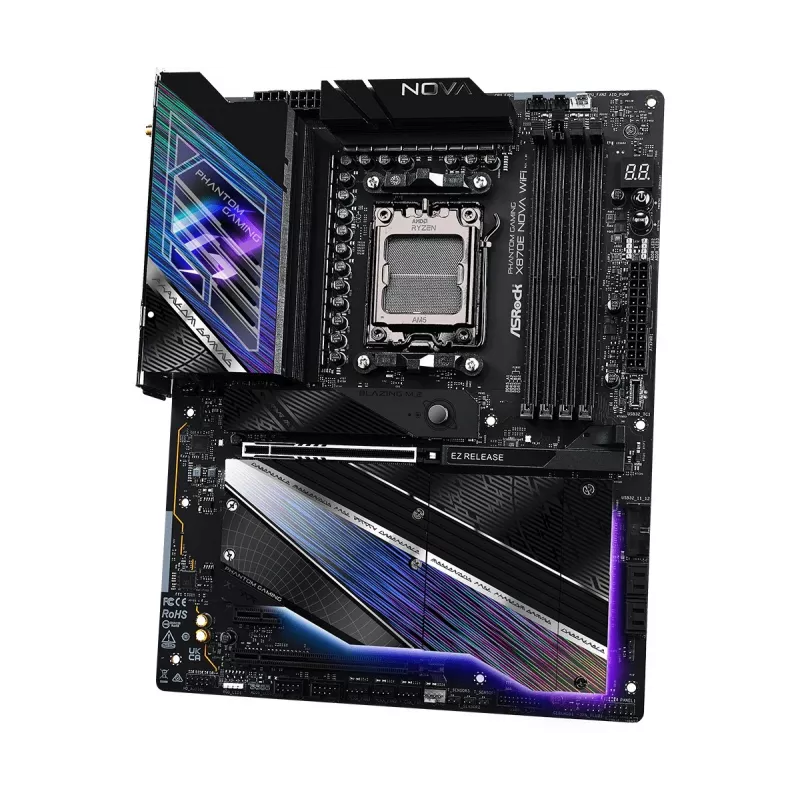

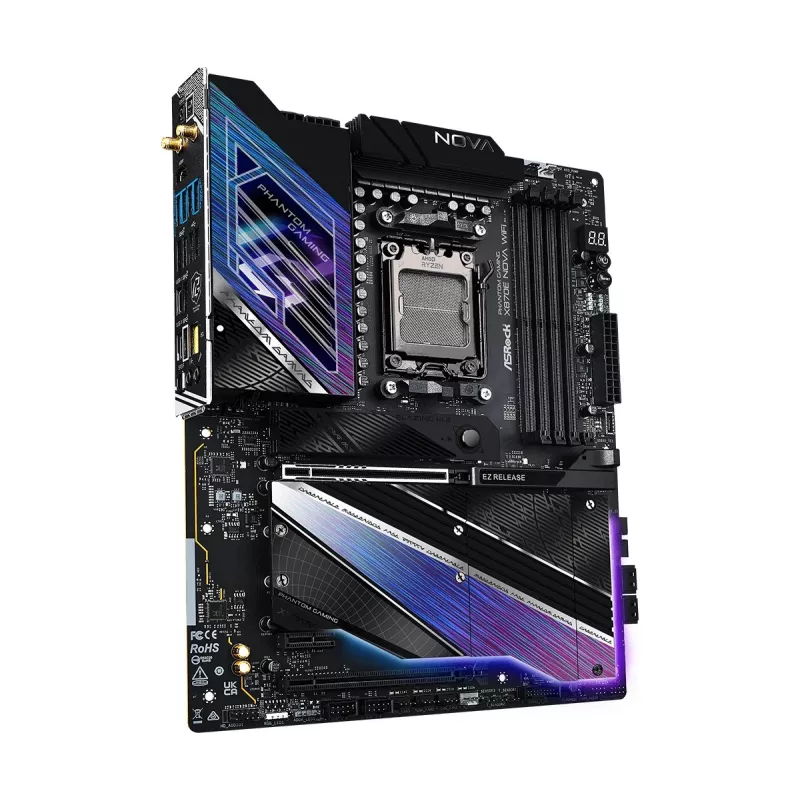

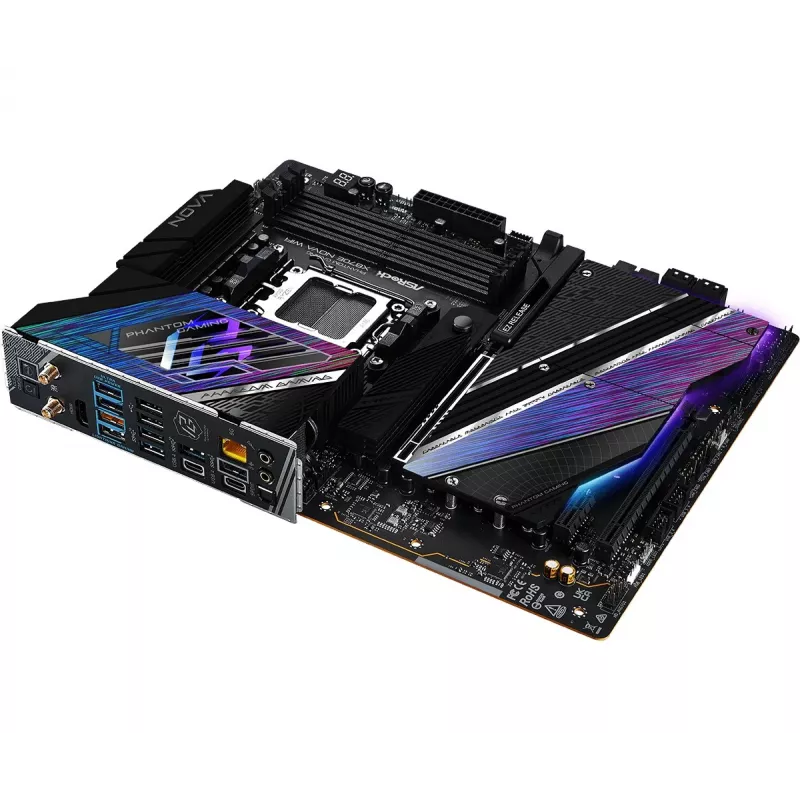

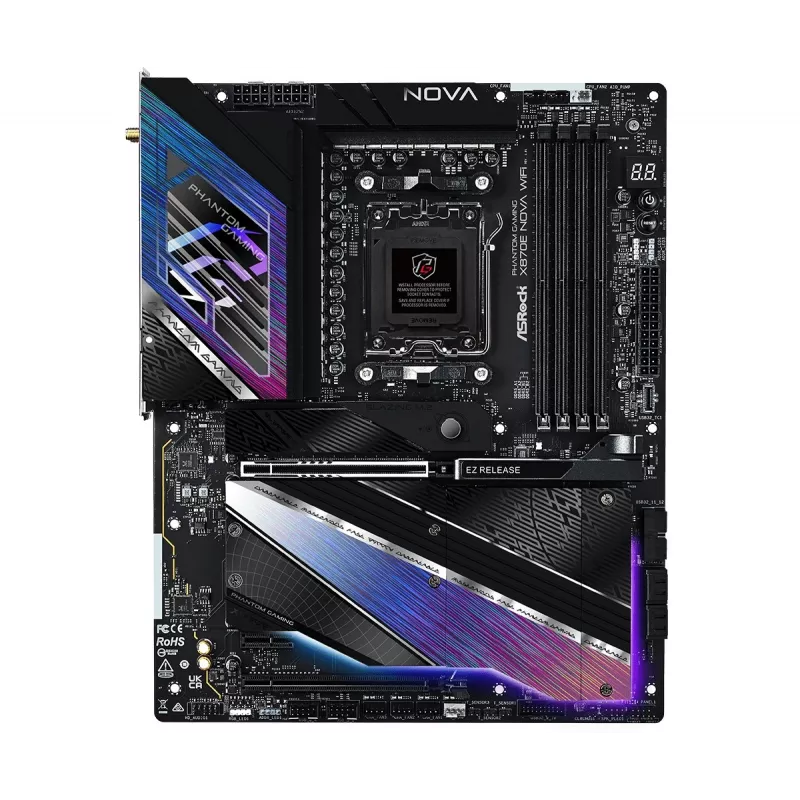

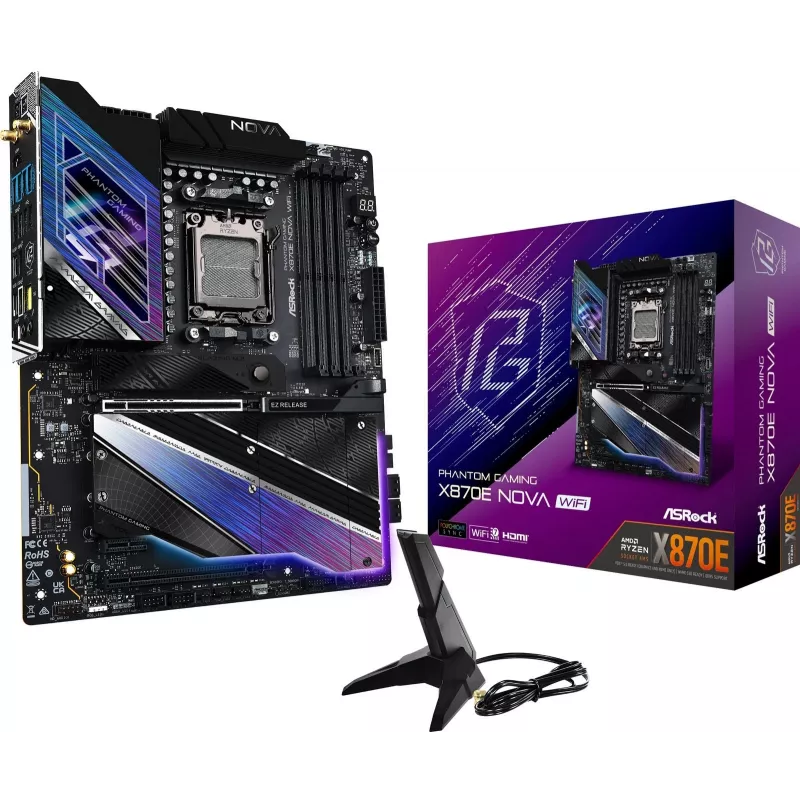

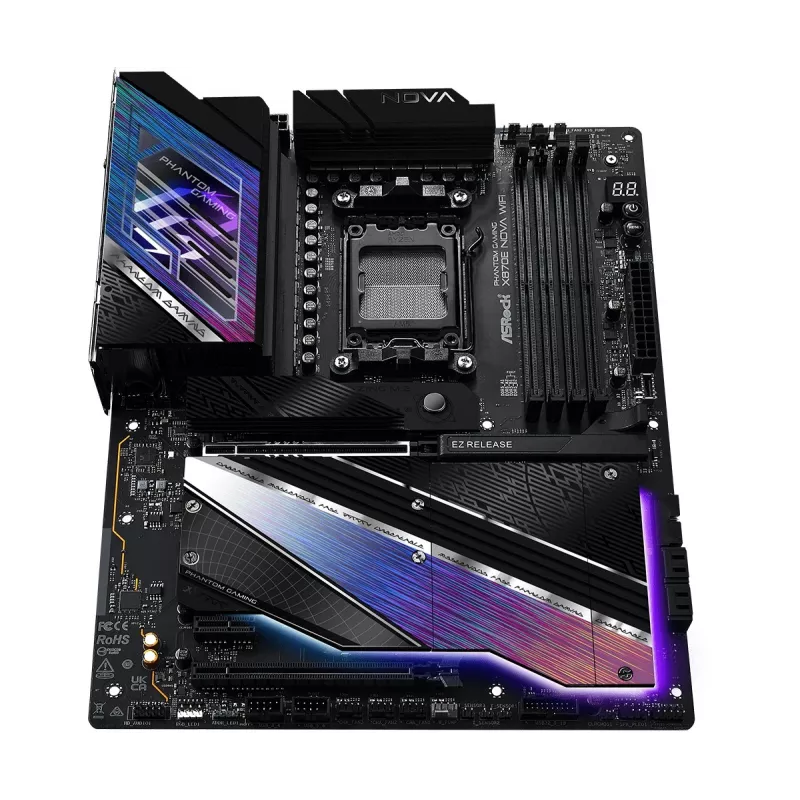

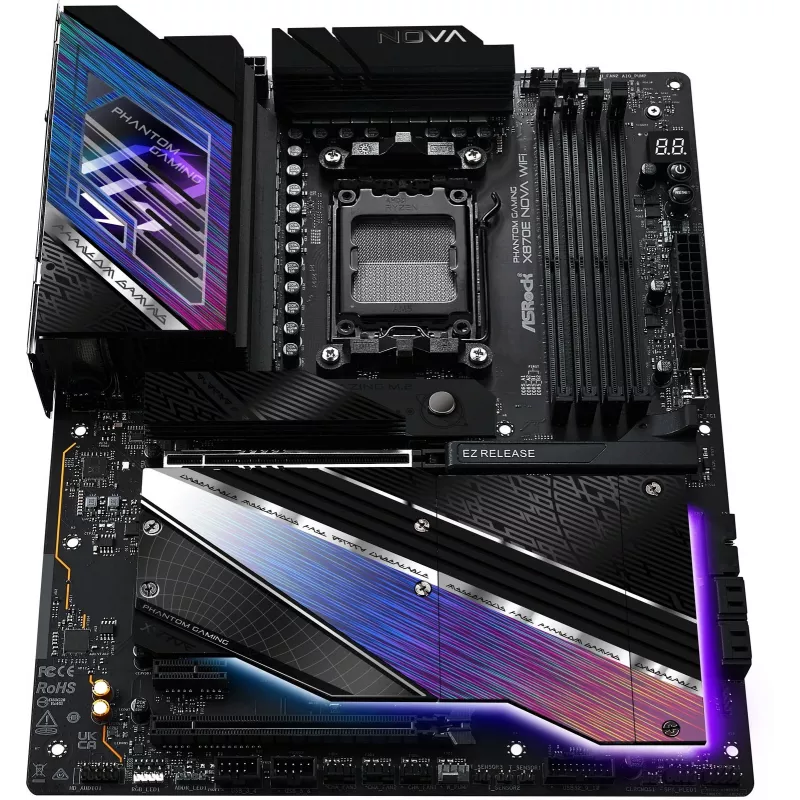

Placa base ASROCK MK X870E NOVA WIFI AMD X870E Socket AM5 ATX, DDR5, 4x DIMM, 256GB, Wi-Fi 7, BT 5.4, 5Gb LAN, PCIe Gen5 M.2

Phantom Gaming motherboard is engineered for gamers, offering a robust power delivery system, advanced cooling solutions, and support for the latest connectivity and memory standards. Built with a 20+2+1 power phase design, Dr.MOS Smart Power Stage monitoring, upgraded 20K 1000µF capacitor, and reinforced power connectors, the board targets stable overclocking and consistent performance. Additional features include server-grade low-loss PCB with 2oz copper and 8-layer construction, PCIe 5.0 support for GPU and M.2, DDR5 XMP/EXPO compatibility, USB4 Type-C, 5 Gb/s LAN, and extensive M.2 cooling to support high-speed SSDs.

Advantages

The motherboard provides stable and efficient power delivery for advanced CPU overclocking thanks to the 20+2+1 phase topology, SPS Dr.MOS design, Hi-Density power connectors and a high-capacitance 20K 1000µF capacitor. An 8-layer, server-grade low-loss PCB with 2oz copper improves signal integrity and thermal characteristics, enabling PCIe Gen5 support and better memory overclocking. Thermal management is enhanced by XXL M.2 and aluminum heatsinks that keep critical components cool under load. Modern connectivity options include USB4 Type-C (40Gbps), front-panel USB 3.2 Gen2x2 Type-C (20Gbps), optimized 5 Gb/s LAN, Lightning Gaming Ports, and comprehensive RGB control via Polychrome RGB and SignalRGB.

Key specifications

• Power design: 20+2+1 power phases with SPS (Smart Power Stage) Dr.MOS
• Capacitors: 20K Black upgraded cap, 1000µF
• PCIe/M.2: PCIe Gen5 support; PCIe Gen5 Blazing M.2 (up to 128Gb/s)
• Memory: DDR5 with XMP and AMD EXPO profile support
• PCB: Server-grade low-loss 8-layer PCB with 2oz inner copper
• Cooling: XXL M.2 heatsink, aluminum VRM and PCH heatsinks, advanced thermal design

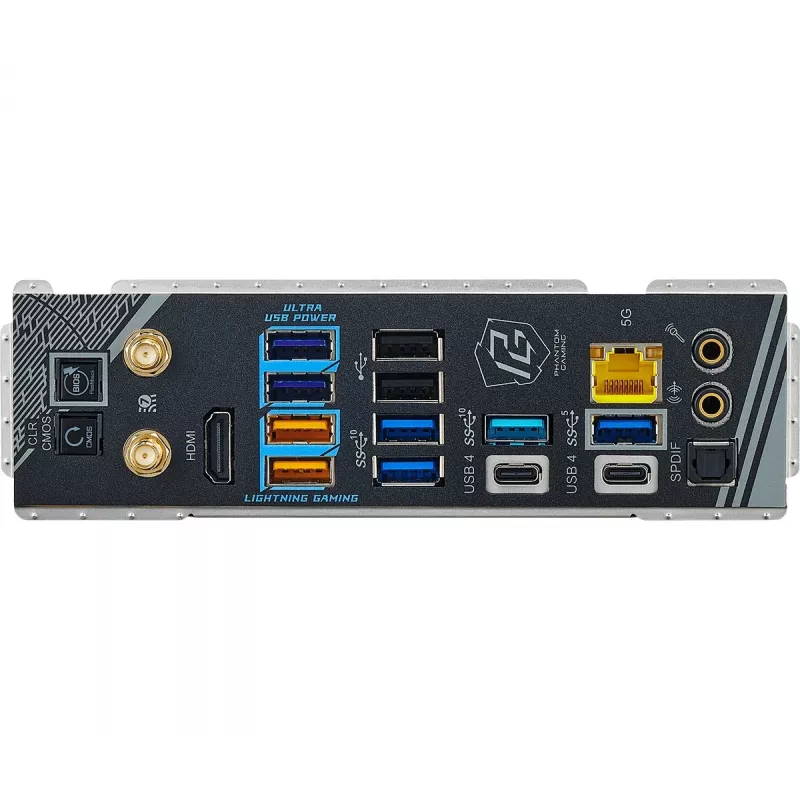

• USB: USB4 Type-C (40Gbps) rear; Front-panel USB 3.2 Gen2x2 Type-C (20Gbps)
• LAN: Optimized 5 Gb/s LAN connector with improved EMI resistance
• Special ports: Lightning Gaming Ports for low-latency mice/keyboards; Graphics Card EZ Release
• RGB: Onboard RGB and addressable headers; Polychrome RGB and SignalRGB support

How to use

Install the motherboard into a compatible ATX case, connect the CPU, DDR5 memory modules that support Intel XMP or AMD EXPO if overclocking is desired, and install graphics and storage devices into the appropriate PCIe and M.2 slots. Attach power using the reinforced Hi-Density CPU and 24-pin ATX connectors. Enable XMP or EXPO profiles in the BIOS to apply pre-tested DDR5 overclocking settings. Ensure M.2 SSDs are mounted with the XXL heatsink in place and verify that fans and chassis airflow are configured to aid thermal management. Use the dedicated Lightning Gaming Ports for high-speed gaming peripherals and the USB4/USB 3.2 Type-C ports for high-bandwidth devices.

Recommendations

For stable overclocking and maximum performance, use high-quality power supply units with sufficient amperage on the 12V rail, install compatible DDR5 modules with Intel XMP or AMD EXPO support, and maintain good case airflow to allow the XXL M.2 and aluminum heatsinks to dissipate heat effectively.
