EMITER Cuadro de distribución hermético AC IP65 con protector contra sobretensiones Noark Type 2, 10A trifásico, diferencial Type A 40A/300mA

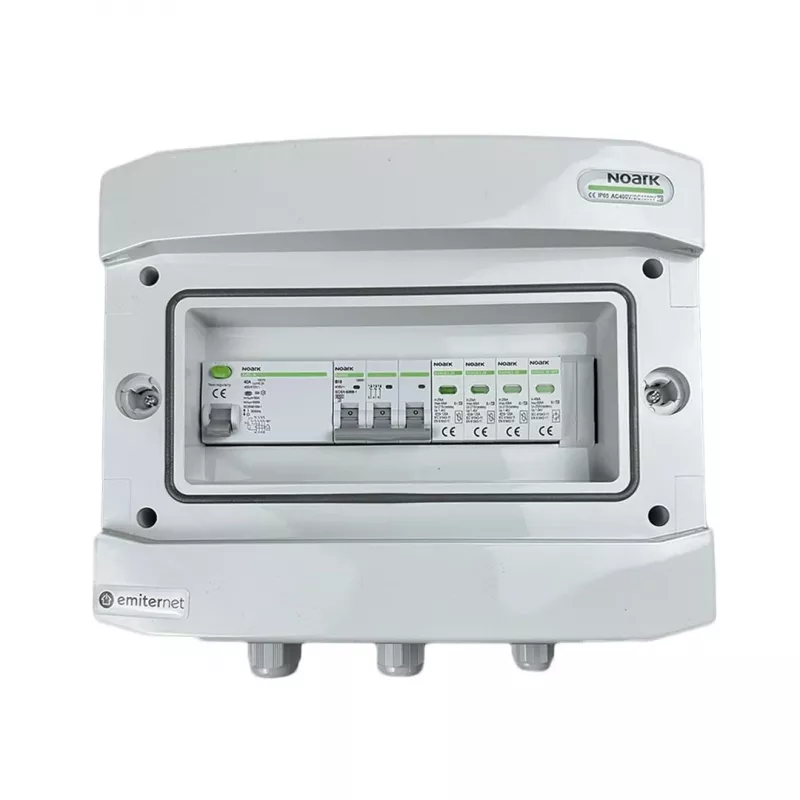

The EMITER EM-296N_AC is a high-quality hermetic AC distribution board designed for outdoor and industrial applications. It features an IP65-rated enclosure, ensuring protection against dust and water jets. This unit integrates a 3-pole 10A circuit breaker, a Type A residual current device (RCD) with 40A rated current and 300mA tripping current, and a Type 2 surge protection device (SPD) from Noark. The board is surface-mounted and made from UV-resistant ABS/Polycarbonate, providing durability and long service life.

Advantages

This distribution board offers comprehensive protection for electrical installations. The hermetic IP65 enclosure allows safe outdoor use, while the integrated surge arrester and RCD safeguard against overvoltages and earth faults. The 3-phase design supports balanced loads, and the 10A circuit breaker provides reliable overcurrent protection. With 12 DIN modules, there is ample space for additional components.

Suitable for

• Outdoor electrical distribution in residential, commercial, and industrial settings
• Protection of sensitive equipment against surges and residual currents
• Installations requiring IP65 ingress protection

Key specifications

• Product Type: Hermetic AC Distribution Board
• Enclosure IP Rating: IP65
• Rated Voltage: 230/400V AC
• Number of Phases: 3-Phase
• Main Circuit Protection: 3-Pole Circuit Breaker 10A
• Residual Current Device (RCD) Type: Type A
• RCD Rated Current: 40A
• RCD Tripping Current: 300mA
• Surge Protection Device (SPD) Type: Type 2
• SPD Brand: Noark
• Enclosure Material: UV-resistant ABS/Polycarbonate
• Mounting Type: Surface Mount
• Application Environment: Outdoor, Industrial, Commercial
• Number of DIN Modules: 12
• Terminal Blocks: PE and N terminals included
• Operating Temperature Range: -25°C to +40°C
• Standards Compliance: IEC 61439-3, IEC 60529
• Cable Entry: Gland entries (pre-drilled or knockouts)

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. Verify that the system's short-circuit capacity and voltage ratings match the board's specifications. Regular testing of the RCD and SPD is recommended to maintain safety.
