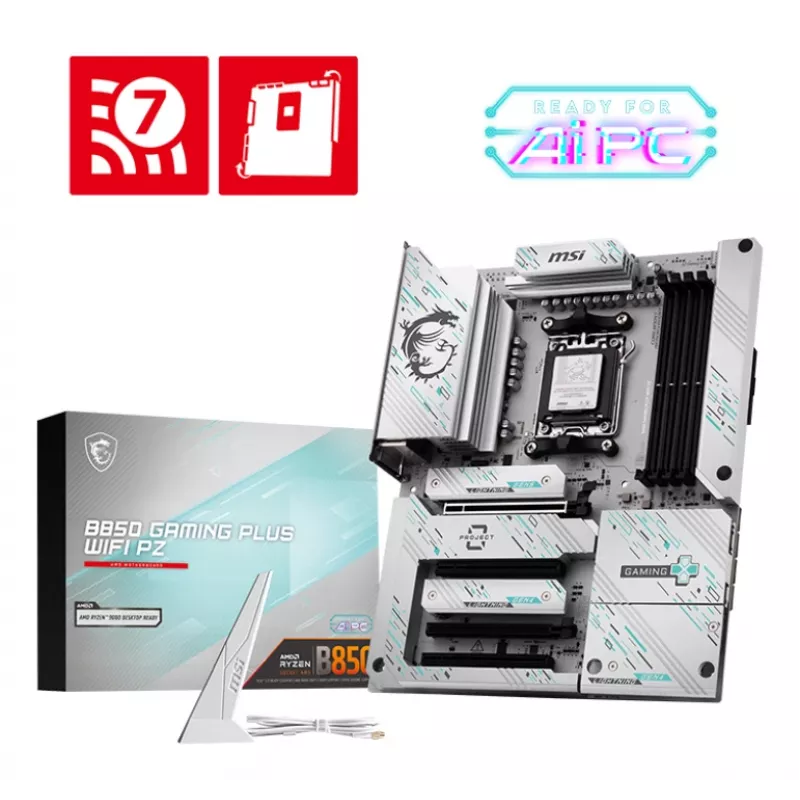

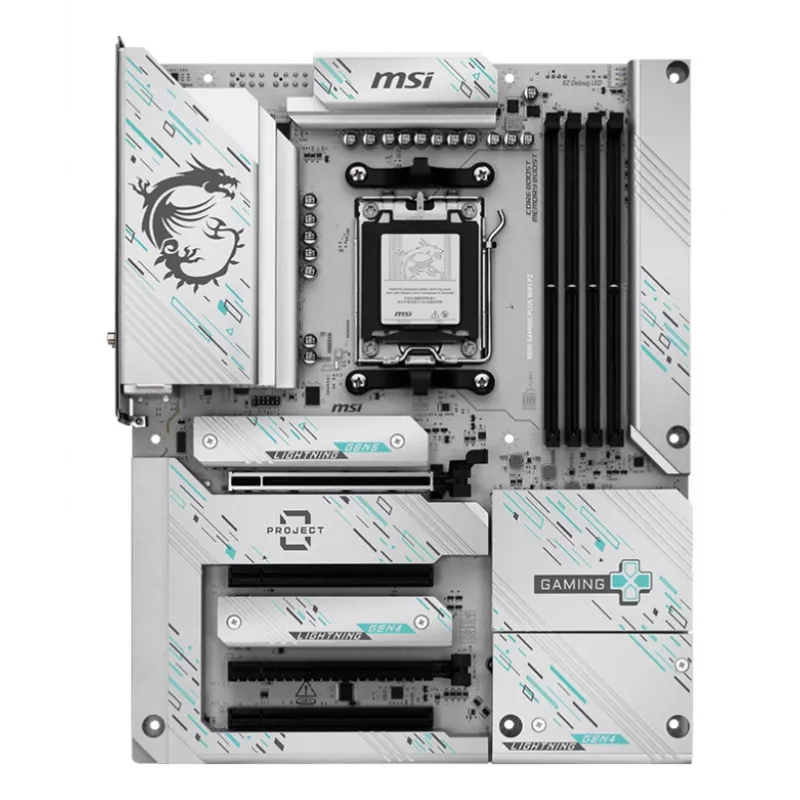

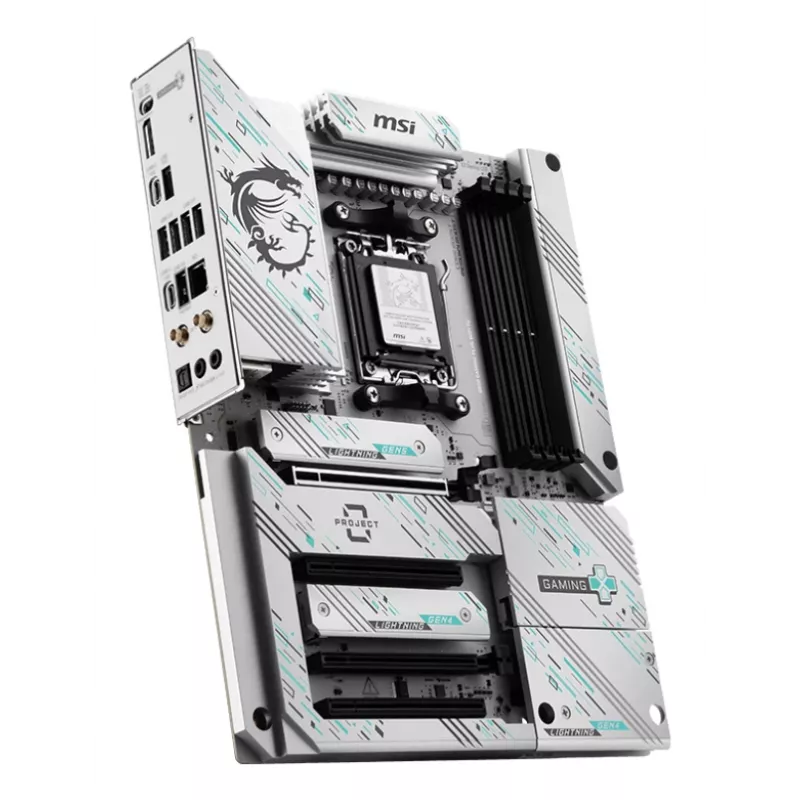

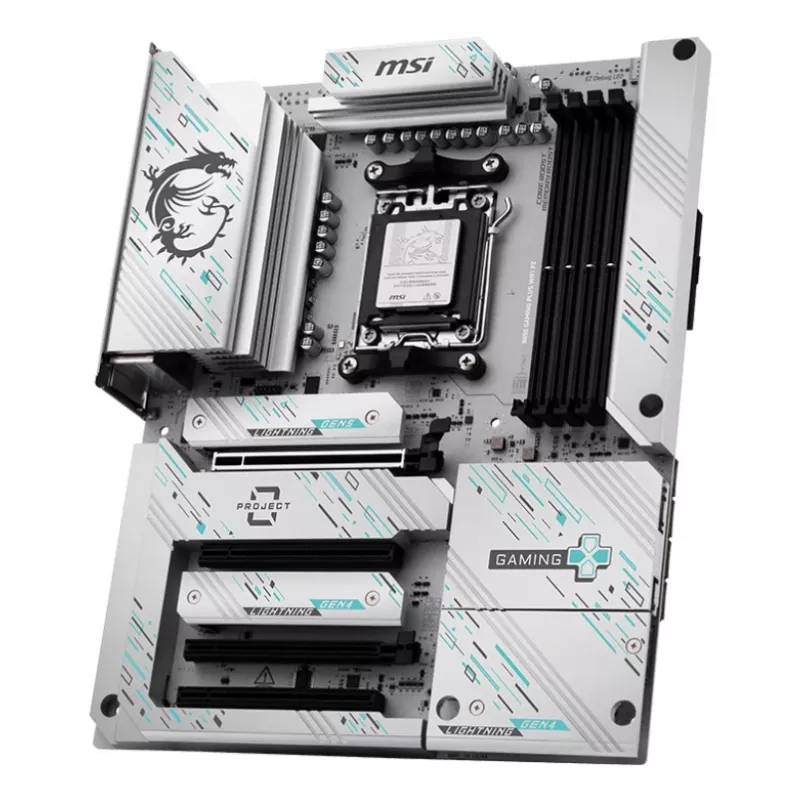

Placa base MSI B850 GAMING PLUS WIFI PZ — AMD B850, zócalo AM5, ATX, DDR5, 4x DIMM, 3x M.2, Wi‑Fi, Bluetooth

The MSI B850 GAMING PLUS WIFI PZ is an ATX motherboard with AMD B850 chipset and Socket AM5 designed for gaming PCs. It supports AMD Ryzen 7000, 8000 and 9000 series processors, DDR5 memory up to 256 GB across four slots, multiple storage interfaces including M.2 and SATA III, RAID 0/1/5/10, PCIe 5.0-ready expansion and advanced networking with full-speed Wi‑Fi 7 and 5 Gigabit LAN. The board integrates enhanced cooling solutions and a back-connect layout that relocates power and common connectors to the rear for cleaner cable management.

Advantages

The B850 GAMING PLUS WIFI PZ offers extensive connectivity and performance-oriented features such as a 12+2+1 Duet Rail digital power design with dual 8-pin CPU connectors and Core Boost for sustained CPU loading, PCIe 5.0-ready slots, reinforced M.2 thermal protection, enlarged VRM and chipset heatsinks, and high-quality thermal pads. Built-in Wi‑Fi 7 and 5G LAN deliver high bandwidth and low latency for online gaming and heavy data transfer. MSI firmware and software improvements include AI-assisted tools in MSI Center and BIOS for easier system tuning.

Suitable for

• Building a high-performance gaming PC with AMD Ryzen (AM5)
• Content creation and multitasking with DDR5 memory and multiple PCIe/M.2 slots
• Systems requiring fast network connectivity (Wi‑Fi 7 / 5 GbE)
• Custom builds where tidy cable management and robust cooling are desired

Key specifications

• Form factor: ATX
• Chipset: AMD B850
• Socket: AM5 (supports Ryzen 7000/8000/9000)
• Memory: 4 × DDR5 slots, up to 256 GB
• Storage: M.2 slots, SATA III (Micro SATA III), RAID 0/1/5/10
• Expansion: PCIe slots with PCIe 5.0 support
• Networking: Wi‑Fi 7 (802.11be), 5 Gigabit LAN

How to use

Install the motherboard into a compatible ATX case, mount an AM5 CPU supported by the board, populate DDR5 DIMMs across the four slots following the manual’s channel recommendations, and attach storage devices to the M.2 and SATA connectors. Connect the dual 8-pin CPU power and main 24-pin ATX power using the relocated back-connect headers if applicable for your chassis layout. Configure RAID arrays in BIOS if required and install the latest drivers and MSI Center software for network, thermal and BIOS management.

Recommendations

For sustained heavy loads, ensure adequate case airflow and use the provided VRM and chipset heatsinks effectively; populate memory in matched pairs and keep M.2 modules covered by the M.2 Shield Frozr to maintain thermal stability. Update BIOS and drivers to the latest versions to guarantee compatibility with Ryzen 8000/9000 series processors and Wi‑Fi 7 functionality.
