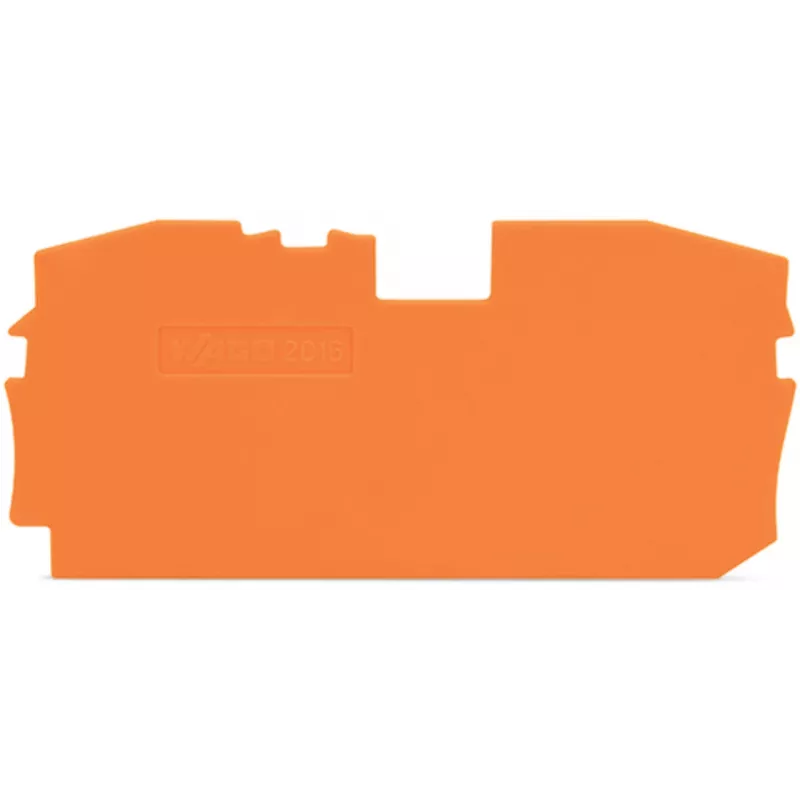

Placa final WAGO 2016-1292 para bornes TOPJOB S, naranja, 1 mm de grosor, 73 mm de altura, 36,5 mm de profundidad, 2,44 g

The WAGO 2016-1292 End Plate is a high-quality insulating and finishing component designed for use with WAGO TOPJOB S terminal block assemblies. Made from durable polyamide (PA 66) with a UL 94 V-0 flammability rating, this orange end plate ensures reliable electrical insulation and mechanical stability in demanding industrial environments.

Advantages

This end plate provides a secure snap-on mounting that simplifies installation and maintenance. Its halogen-free, RoHS-compliant construction meets modern environmental and safety standards. The bright orange color aids in quick visual identification, reducing wiring errors.

Suitable for

• Insulating and finishing the ends of WAGO TOPJOB S terminal block assemblies
• Use in control cabinets, junction boxes, and industrial automation systems
• Applications requiring a compact, lightweight end plate with a wide operating temperature range (-35 to +105 °C)

Key specifications

• Product Type: End Plate
• Series Compatibility: WAGO TOPJOB S
• Color: Orange
• Material: Polyamide (PA 66)
• Flammability Rating: UL 94 V-0
• Operating Temperature Range: -35 to +105 °C
• Mounting Type: Snap-on
• Thickness: 1 mm
• Height: 73 mm
• Depth: 36.5 mm
• Weight: 2.44 g
• Halogen-Free: Yes
• RoHS Compliant: Yes
• Approvals: UL, CSA, VDE

Recommendations

For optimal performance, pair this end plate with WAGO TOPJOB S terminal blocks. Ensure the mounting rail is clean and properly aligned before snap-on installation. Always follow local electrical codes and manufacturer guidelines.
