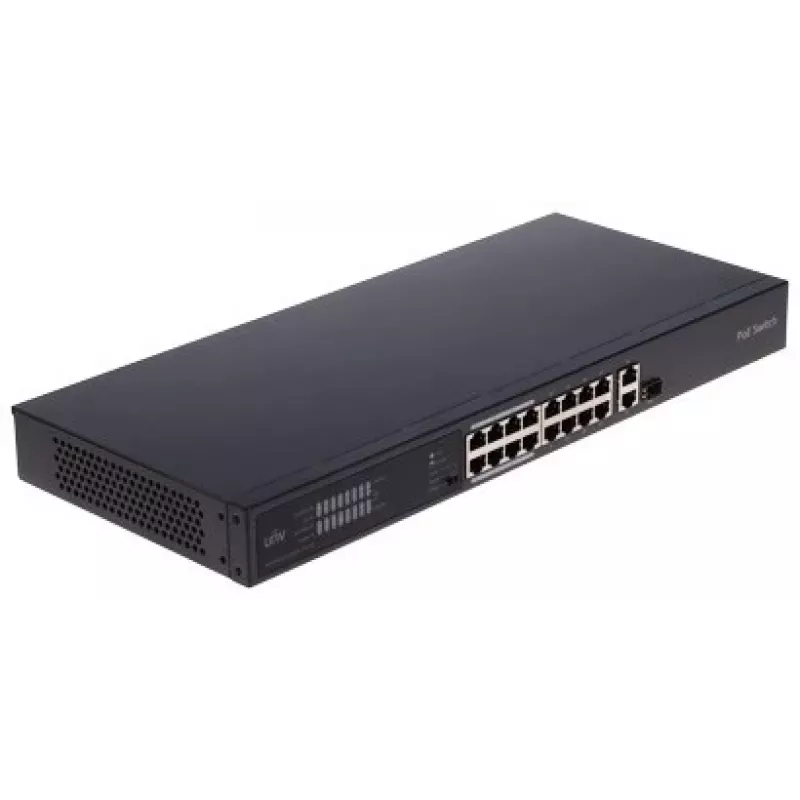

POE LANG NSW2020-16T1GT1GC-POE-IN Switch PoE+ no gestionado, 16 puertos PoE, 230W

The POE LANG NSW2020-16T1GT1GC-POE-IN is a high-performance unmanaged PoE+ switch designed for small to medium-sized networks. With 16 PoE+ ports and a total power budget of 230W, it provides reliable power and data connectivity for IP cameras, wireless access points, and VoIP phones. The switch also features one Gigabit RJ45 uplink port and one Gigabit SFP slot for flexible network expansion.

Advantages

This switch simplifies network deployment by eliminating the need for separate power cables for PoE devices. Its unmanaged design ensures plug-and-play operation, while advanced features like Extend Mode (up to 250m PoE transmission), VLAN Mode, and QoS enhance network performance and security. The robust metal housing supports both rackmount and desktop installation.

Suitable for

• Small business networks requiring PoE for IP cameras and access points
• Surveillance systems needing long-distance PoE transmission
• Office environments with mixed data and PoE devices

Key specifications

• 16 x 10/100Mbps PoE+ ports (IEEE 802.3af/at, up to 30W per port)
• 1 x 10/100/1000Mbps Gigabit RJ45 uplink port
• 1 x 1000Mbps Gigabit SFP slot
• Total PoE power budget: 230W
• Switching capacity: 7.2 Gbps
• MAC address table: 8K
• Jumbo frame support: 10K Bytes
• Internal power supply: AC 100-240V, 50/60Hz
• Lightning protection: 6KV for all ports
• Operating temperature: 0°C to 45°C

Recommendations

For optimal performance, use Category 5e or higher cabling. The Extend Mode is ideal for long-distance camera installations up to 250 meters. Ensure the total PoE power consumption does not exceed 230W.
