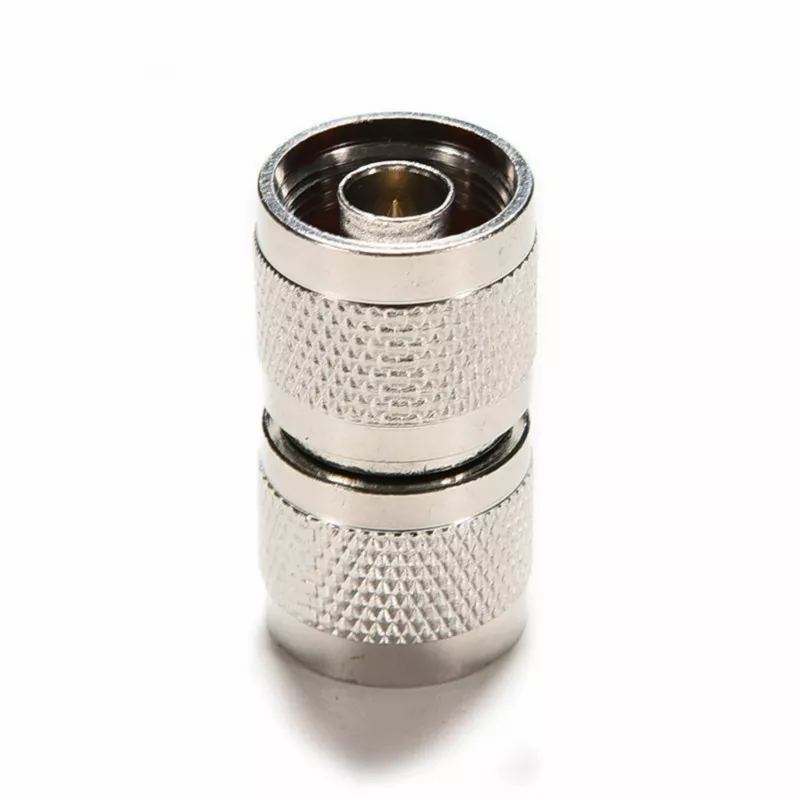

Poynting A-ADPT-042 Adaptador coaxial RF de conector N macho a conector N macho

The Poynting A-ADPT-042 is a high-quality N-Type male to N-Type male coaxial RF adapter, designed for reliable interconnection in antenna systems and RF applications. Manufactured with precision, this straight adapter ensures minimal signal loss and excellent performance across a wide frequency range.

Advantages

This adapter offers low insertion loss (0.1 dB max) and a low VSWR of 1.2:1, ensuring efficient signal transmission. Its robust construction with brass body, nickel plating, and gold-plated contacts guarantees durability and corrosion resistance. With a durability of 500 mating cycles, it is built for long-term use.

Suitable for

• RF coaxial interconnection in antenna systems
• Extending or connecting N-Type male cables
• Test and measurement setups
• Telecommunications and broadcast equipment

Key specifications

• Connector Type: N-Type (Male) to N-Type (Male)
• Impedance: 50 Ohm
• Frequency Range: DC - 11 GHz
• VSWR (Max): 1.2:1
• Insertion Loss (Max): 0.1 dB
• Body Material: Brass, Nickel Plated
• Contact Material: Beryllium Copper / Brass, Gold Plated
• Insulator Material: PTFE
• Operating Temperature: -55°C to +125°C
• Durability: 500 Mating Cycles

Recommendations

For optimal performance, use with high-quality N-Type cables and connectors. Ensure proper torque when mating to avoid damage.
