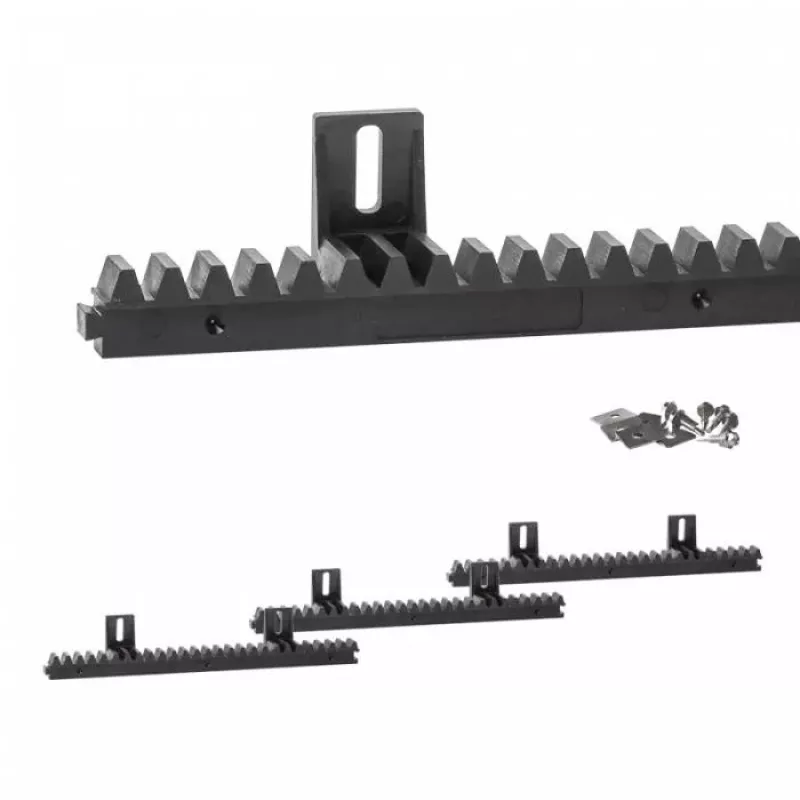

PSG 60.055.01 Cremallera de nylon corta para puertas correderas hasta 800 kg - TW.3XL333X20 (compatible con 60.056.01)

Sliding gate gear rack delivering smooth, low-noise operation with a robust 800 kg load capacity. This short nylon rack (TW.3XL333X20) is the core transmission element for automating heavy sliding gates, ensuring reliable power transfer from the gate motor to the gate leaf. Its polyamide construction offers excellent corrosion and UV resistance, making it ideal for outdoor installations in all weather conditions. The rack is designed as a direct replacement or extension piece, fully compatible with PSG 60.056.01 for longer gate runs.

Advantages

The nylon (polyamide) material provides superior durability and silent operation compared to steel racks, reducing wear on the drive pinion and eliminating metallic grinding noises. Integrated spacers and three mounting points allow for quick, precise screw-on installation without additional hardware. The module 4 tooth profile guarantees a perfect mesh with standard gate motor pinions, ensuring efficient power transmission and minimal backlash.

Suitable for

• Automated sliding gates up to 800 kg (residential and light commercial)
• Outdoor gate systems exposed to rain, sun, and temperature fluctuations
• Replacement or extension of existing PSG 60.056.01 rack sections
• DIY gate automation projects requiring a reliable, low-maintenance rack

Key specifications

• Length: 333 mm, width: 20 mm, height: 20 mm
• Gear module: M4, straight tooth profile
• Material: Nylon (polyamide), black colour
• Maximum gate weight: 800 kg
• Mounting: Screw-on with integrated spacer

Recommendations

For optimal performance, pair this rack with a compatible gate motor using a module 4 pinion. Ensure proper alignment during installation to maximize lifespan and minimize noise.
