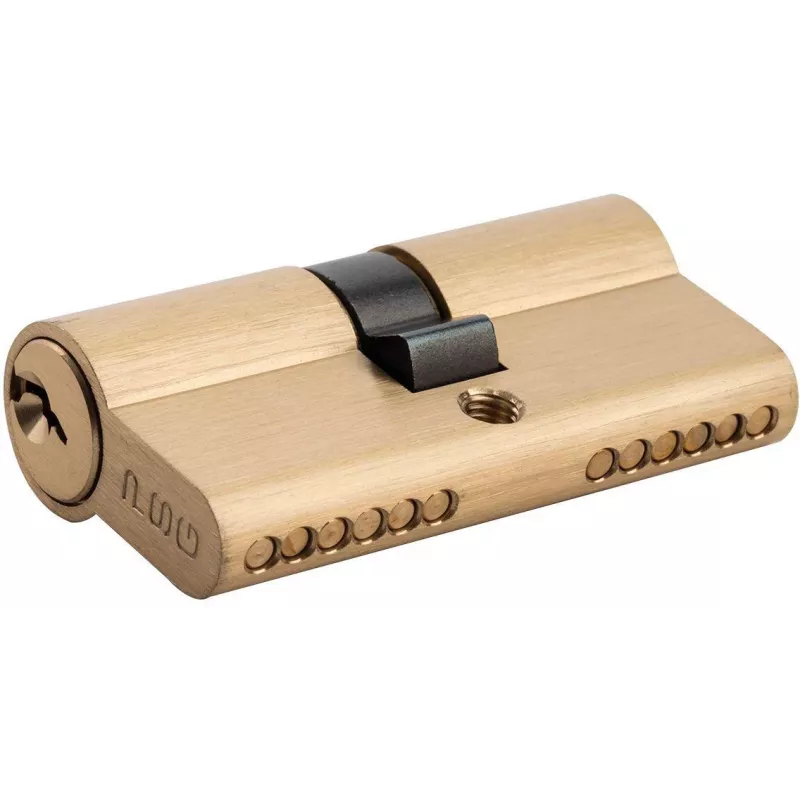

PSG 63.63030.MM Bombín de perfil europeo doble de latón 30/30 mm

Euro profile double cylinder lock with brass body and 30/30 mm length, delivering reliable key-operated security for residential and light commercial doors. Its solid brass construction ensures high corrosion resistance and long-term durability, while the standard DIN cam and through-bolt mounting provide straightforward installation in most European lock cases.

Advantages

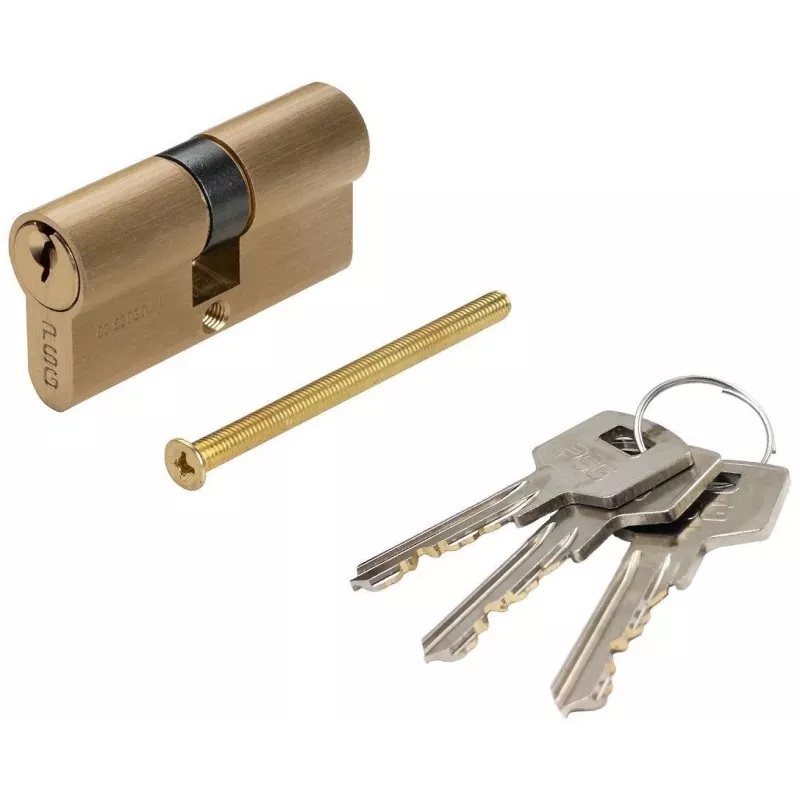

The PSG 63.63030.MM cylinder combines a classic pin tumbler mechanism with a robust brass finish that resists tarnishing and wear. Supplied with three standard profile keys, it offers convenient key duplication and everyday usability. The 30/30 mm symmetrical sizing fits doors with standard thickness, and the through-bolt fixing keeps the cylinder securely in place without additional screws.

Suitable for

• Residential entrance and interior doors with Euro profile locks
• Light commercial doors in offices, shops, and workshops
• Replacement of worn or damaged cylinders in existing hardware
• New installations where a standard, non-electronic cylinder is required

Key specifications

• Product type: Lock cylinder
• Cylinder type: Double cylinder (key-key)
• Profile type: Euro profile
• Material: Brass
• Finish/color: Brass

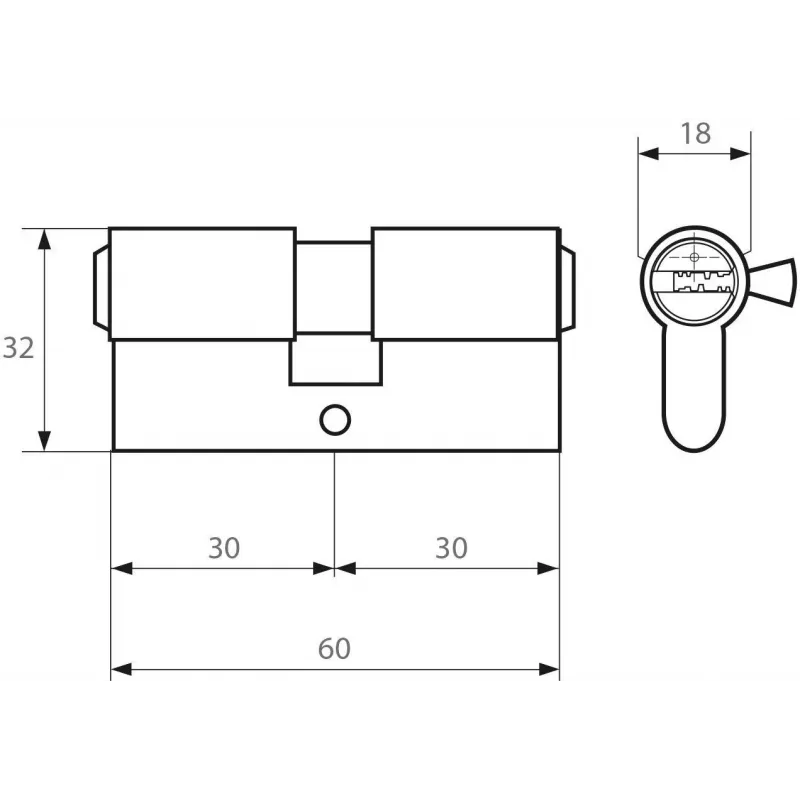

• Cylinder size (A/B): 30/30 mm
• Total cylinder length: 60 mm
• Key type: Standard profile key
• Number of keys included: 3
• Mechanism: Pin tumbler
• Application: Residential and light commercial doors
• Security level: Standard
• Corrosion resistance: High
• Mounting type: Through-bolt
• Cam type: Standard DIN cam
• Brand series: PSG Standard Line
• Reversible key: No
• Anti-drill protection: No
• Anti-pick protection: No

Recommendations

For optimal performance, install the cylinder in doors with a thickness of 35–45 mm and ensure the lock case is compatible with Euro profile cylinders. Lubricate the mechanism annually with a graphite-based lock lubricant. Keep the spare keys in a secure location; for higher security needs, consider upgrading to a cylinder with anti-drill and anti-pick features.
