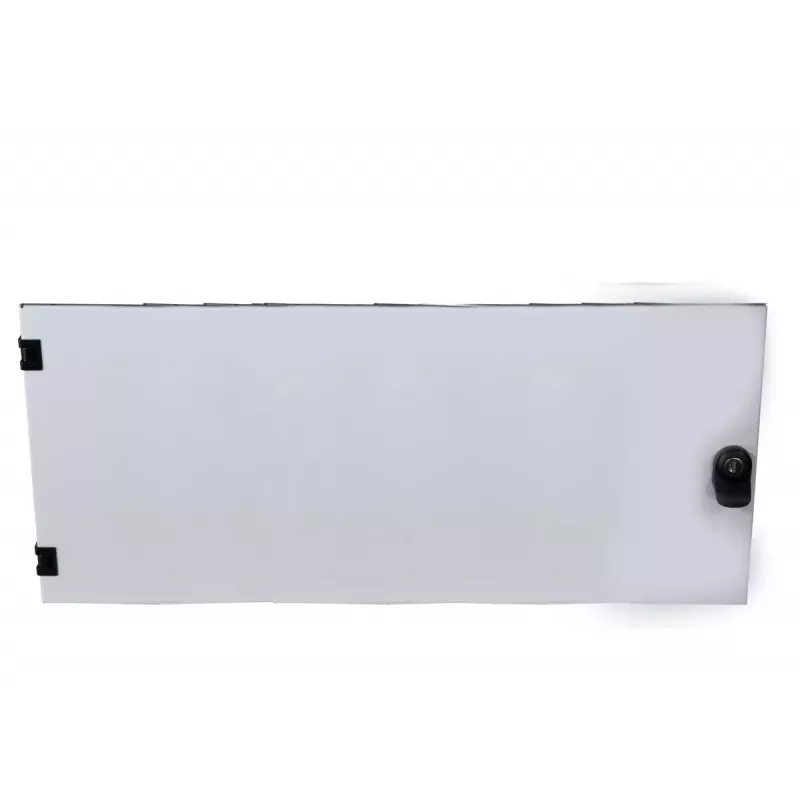

Puerta frontal EFB Elektronik 102130GR.18S

When a rack door fails, the whole installation looks neglected. The EFB Elektronik 102130GR.18S replaces that tired panel with a robust steel front door sized for 18U wall-mount enclosures. Unlike generic blanks, this unit is engineered as a direct-fit spare for EFB wall distributors, so alignment and locking remain factory-precise. The powder-coated light grey finish (RAL 7035) matches surrounding hardware and hides fingerprints better than darker tones. A full-view tempered safety glass insert lets you monitor equipment LEDs without opening the door, while the swivel lever handle with profile half cylinder keeps access controlled. Two keys are included, and the hinges are reversible for left- or right-hand opening up to 180 degrees. Installation is straightforward: align the door with the existing hinge points, secure the screws, and the rack is closed and presentable again.

Highlights

• Direct replacement for EFB Elektronik 18U wall-mount enclosures, 600 mm width
• Sheet steel frame with tempered safety glass insert for visibility and protection
• Light grey RAL 7035 powder-coated finish blends into standard rack environments
• Swivel lever handle with profile half cylinder; includes two keys
• Reversible hinges allow left- or right-hand mounting, opening angle approx. 180°
• Designed for IP20 enclosures in IT, network, and telecom applications

In daily use

This front door restores both security and aesthetics to a wall-mount rack. The steel frame adds rigidity to the cabinet, reducing flex when equipment is installed or serviced. The safety glass panel is tempered for impact resistance, so accidental bumps in a busy server room won't shatter it. Because the door opens a full 180 degrees, you get unobstructed access to patch panels, switches, and cable management. The reversible hinge design means you can adapt the door to the room's traffic flow, not the other way around. The lock is a standard profile half cylinder, so it can be keyed alike with other enclosures if your facility uses a master key system. The powder coating resists scratches and corrosion, keeping the door looking clean even after years of use.

Full specifications

• Product type: Front door for wall-mount rack enclosure
• Rack capacity: 18U
• Enclosure width compatibility: 600 mm
• Material: Sheet steel frame, tempered safety glass insert
• Colour: Light grey RAL 7035
• Surface finish: Powder-coated
• Door design: Single-leaf, full-view safety glass
• Locking system: Swivel lever handle with profile half cylinder
• Keys included: 2
• Hinge type: Reversible, left/right mounting
• Opening angle: approx. 180°
• Protection class: IP20
• Application: IT, network, telecommunications enclosures
• Installation: Easy replacement or new mounting

Final note

For facilities managers and integrators, this EFB door is a practical way to extend the life of an existing wall-mount rack. It fits precisely, locks securely, and keeps equipment visible—all without the cost of a whole new enclosure.
