Puesto de control de parada de emergencia Eaton FAK-R/V/KC01/IY, cableado, carcasa amarilla, pulsador de seta rojo, IP66/IP67/IP69 229747

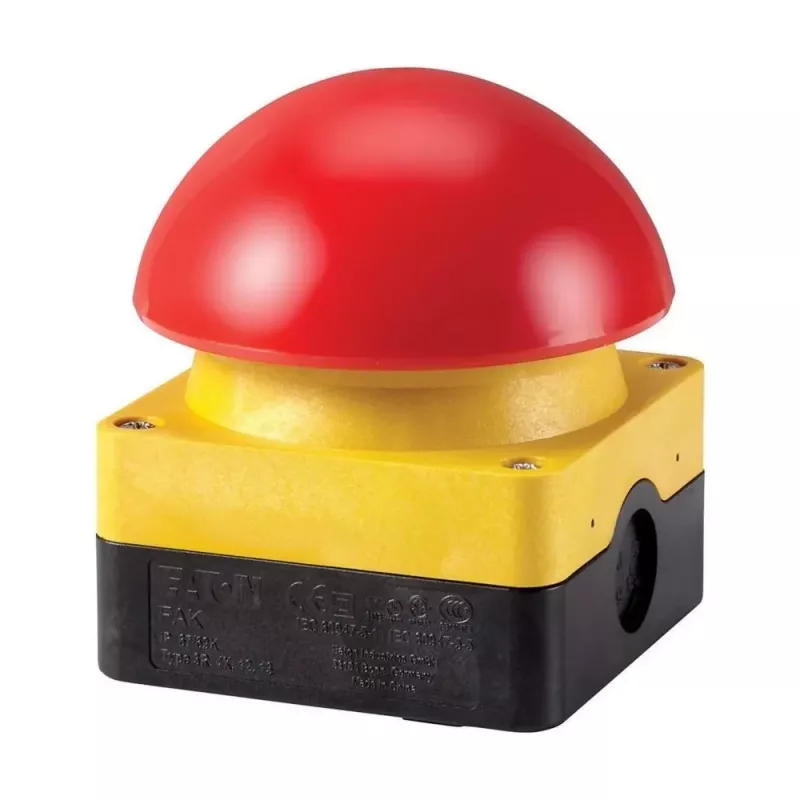

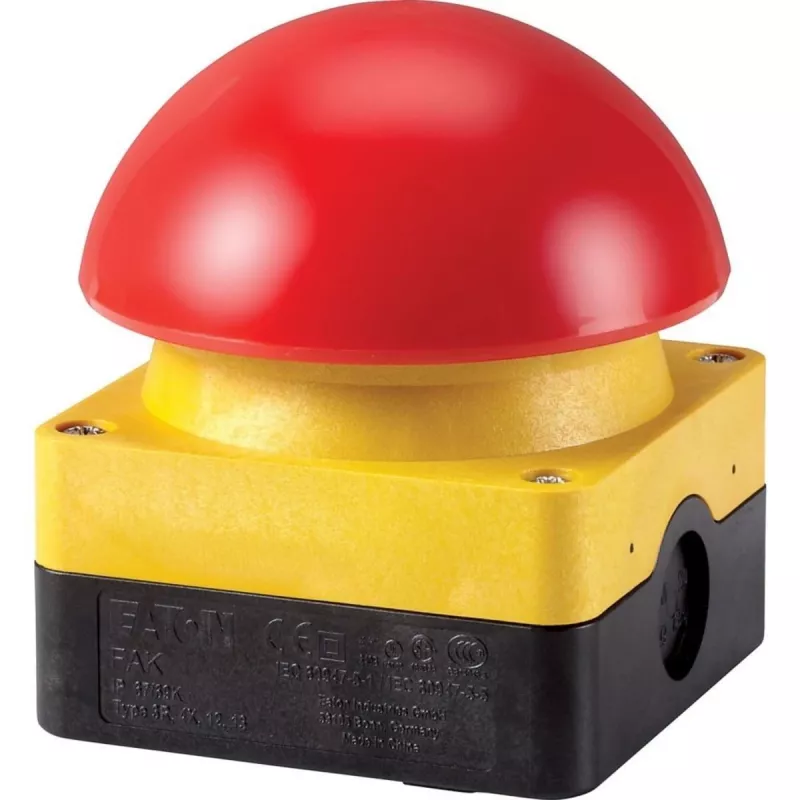

The Eaton FAK-R/V/KC01/IY stands out as a robust emergency stop control station engineered for demanding industrial environments. Unlike standard push-button stations, it combines a latching red mushroom-head actuator with a high-visibility yellow insulated enclosure, ensuring immediate recognition and reliable operation when safety is critical.

Highlights

• Latching mushroom-head emergency stop button with twist-to-release mechanism
• Durable yellow polycarbonate enclosure with surface mounting
• Exceptional ingress protection: IP66, IP67, and IP69
• Complies with IEC/EN 60947-5-5 and VDE 0660; UL/CSA Type 3R, 4X, 12, 13
• Wide operating temperature range from -25 to +70 °C

In daily use

Designed for quick, intuitive activation, the red button is easily pressed in an emergency, and its latching action ensures the stop condition remains until deliberately reset. The enclosure's high IP ratings mean it can withstand dust, temporary immersion, and high-pressure washdowns, making it suitable for food processing, heavy machinery, and outdoor installations.

Full specifications

• Product type: Emergency Stop Control Station
• Series: FAK
• Connectivity: Wired
• Enclosure colour: Yellow
• Button colour: Red
• Actuator type: Mushroom-head, latching (twist-to-release)
• Number of actuators: 1
• IP rating: IP66, IP67, IP69
• Dust resistant: Yes
• Water resistant: Yes
• Standards: IEC/EN 60947-5-5, VDE 0660, UL/CSA Type 3R, 4X, 12, 13
• Mounting type: Surface mount
• Enclosure material: Insulated plastic (polycarbonate)
• Cable entry: M20
• Contact configuration: 1 NC
• Rated operational voltage: 400 V AC
• Rated operational current: 6 A at 230 V AC
• Operating temperature: -25 to +70 °C

Final note

With its rugged construction and compliance with international safety standards, the Eaton FAK-R/V/KC01/IY provides dependable emergency stop functionality for critical applications.
