PULSAR AWO353 Carcasa metálica universal, Gris (RAL 7035), IP20, montaje en pared

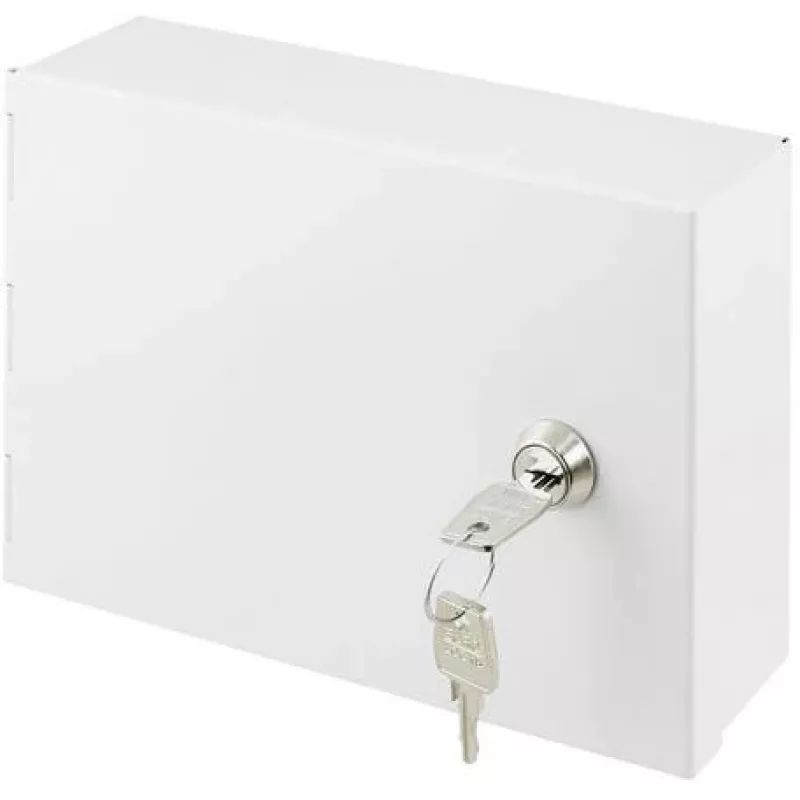

The PULSAR AWO353 is a robust universal metal enclosure designed for housing alarm systems, access control, CCTV, and intercom equipment. Manufactured from high-quality steel with a powder-coated finish in grey (RAL 7035), this surface-mounted enclosure offers reliable protection and tamper security for your electronic installations.

Advantages

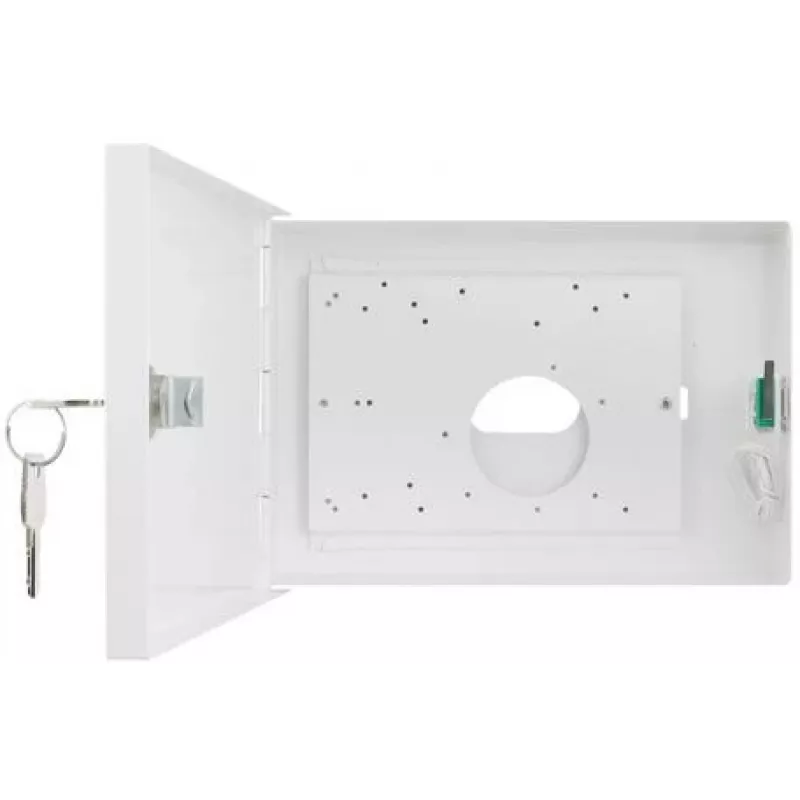

Durable steel construction with powder coating ensures long-lasting performance. The integrated tamper microswitch (NC) and key lock provide enhanced security. Removable mounting plate simplifies installation and maintenance. Ventilation openings allow for passive cooling of internal components.

Suitable for

• Alarm systems
• Access control systems
• CCTV equipment
• Intercom systems
• Pulsar power supplies and modules

Key specifications

• Enclosure Type: Universal Metal Enclosure
• Material: Steel
• Colour: Grey (RAL 7035)
• Mounting Type: Surface-mounted (Wall-mounted)
• Protection Rating: IP20
• Tamper Detection: Microswitch (NC)
• Lock Mechanism: Key lock (2 keys included)
• Cable Management: Knock-out cable entries
• Ventilation: Integrated ventilation openings
• Internal Battery Capacity: Up to 2 x 7Ah or 1 x 17Ah
• Removable Mounting Plate: Yes
• Operating Temperature: -10°C to +40°C
• Relative Humidity: 20% to 90% (non-condensing)
• Finish: Powder coated
• Certifications: CE, RoHS

Recommendations

This enclosure is ideal for professional security and low-voltage installations where a sturdy, lockable metal housing is required. Ensure adequate ventilation and avoid exceeding the specified battery capacity.
