Punto de acceso inalámbrico Ubiquiti NSM2

The Ubiquiti NSM2 (NanoStation M2) is an indoor/outdoor airMAX CPE designed for long-range wireless connectivity on the 2.4 GHz band. With an integrated 11.2 dBi panel antenna and 2x2 MIMO, it delivers up to 150+ Mbps real outdoor throughput and supports links beyond 15 km in favorable conditions. The compact, weather-resistant enclosure and dual-Ethernet ports with software-enabled PoE output make the NSM2 suitable for Point-to-MultiPoint (PtMP) CPE deployments, Point-to-Point (PtP) bridging, and powering external PoE devices such as IP cameras.

Advantages

The NanoStation M2 combines a sleek, compact CPE design with 2x2 MIMO performance and a high-gain 11.2 dBi panel antenna to provide extended range and improved link stability. It supports remote hardware reset (optional) and can be made 48V 802.3af compliant with an adapter. Easy, mostly tool-free installation and Ubiquiti’s airOS and airMAX software features enable flexible configuration, low-latency multi-point networking and integrated management.

Suitable for

• WISP CPE for residential or business subscriber connections
• Point-to-Point bridges between buildings
• Wireless backhaul for IP video surveillance systems
• Outdoor coverage where compact, pole- or wall-mounted antennas are needed

Key specifications

• Model: Ubiquiti NanoStation M2 (NSM2)
• Frequency band: 2.4 GHz
• Maximum real outdoor throughput: 150+ Mbps
• Maximum range: 15 km+ (environment-dependent)
• Antenna: integrated panel, dual-polarity, 11.2 dBi gain
• MIMO: 2x2

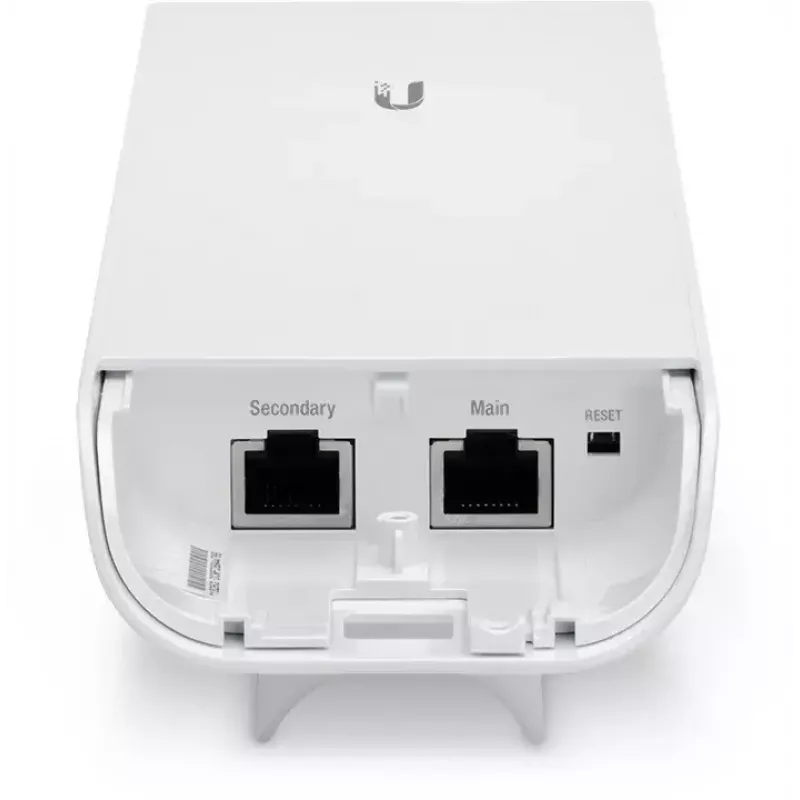

• Ethernet: 2 × 10/100 Mbps ports; secondary port supports software-enabled PoE output
• Power: PoE; typical consumption ~8 W
• Weight: 0.4 kg
• Certifications: RoHS, FCC, IC, CE

How to use

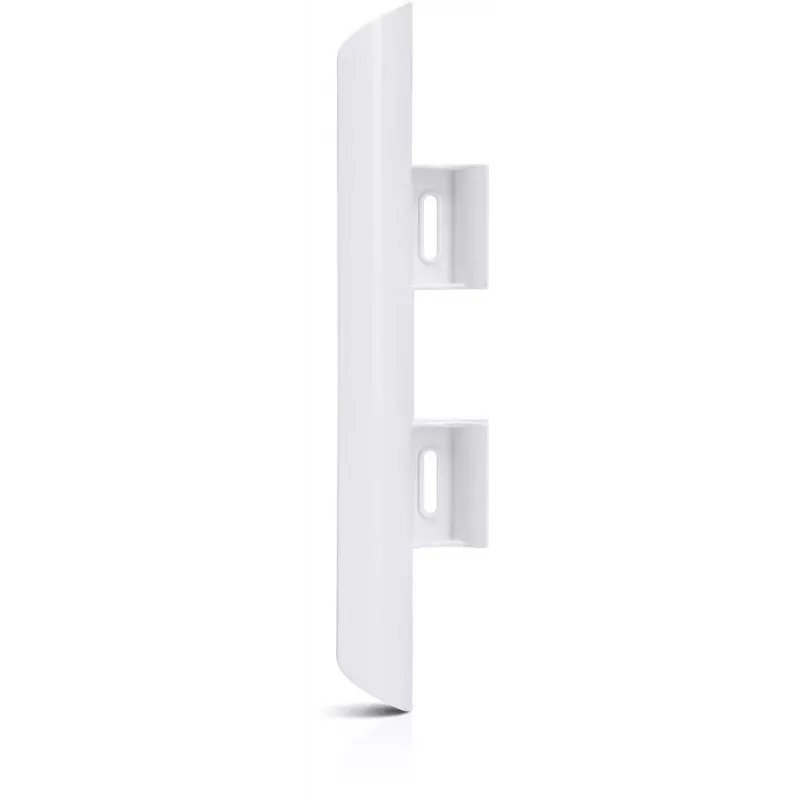

Mount the NSM2 using the supplied window/wall mount or universal arm bracket for pole mounting; only a single wrench is required for pole installation. Connect the primary Ethernet port to a PoE power source and configure network settings via airOS. Position and aim the panel antenna toward the base station or remote unit for best signal; use the 180° vertical/horizontal adjustment on the window mount or 90° tilt on the arm bracket to fine-tune alignment. If powering an external PoE device, enable the software PoE output on the secondary Ethernet port.

Recommendations

Install the NSM2 at a clear line-of-sight location, elevated and away from large obstructions for optimal range. Use the appropriate mount for stable alignment, and verify country-specific regulatory settings in airOS before operation.
