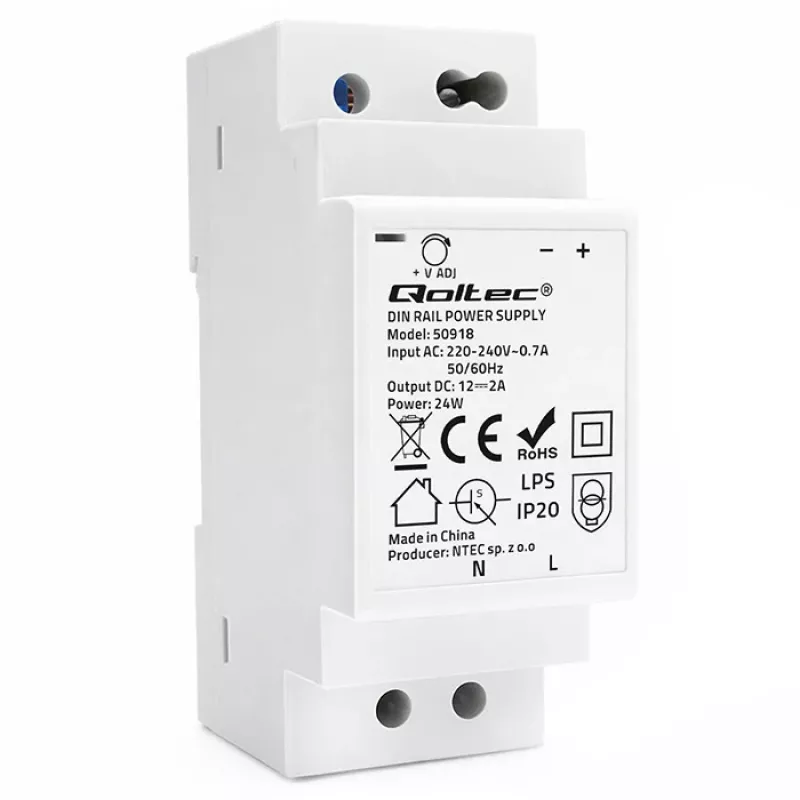

Qoltec Fuente de Alimentación para Carril DIN 24W 12V 2A Gris

The Qoltec DIN Rail Power Supply is a reliable and efficient solution for industrial and commercial applications requiring a stable 12V DC output. With a power rating of 24W and a current output of 2A, this power supply is designed to meet the demands of various automation, control, and security systems. Its compact grey housing is made from durable ABS plastic and mounts easily on standard TS-35 DIN rails.

Advantages

High efficiency of 85% reduces energy waste and heat generation. Built-in protection features including overload, overvoltage, and short circuit safeguard connected equipment. Wide input voltage range (100-240V AC) ensures compatibility with global power grids. Natural convection cooling ensures silent operation and long service life.

Suitable for

• Industrial automation systems
• Building management and control panels
• Security and surveillance equipment
• LED lighting and signage
• Telecommunication devices

Key specifications

• Output Power: 24W
• Output Voltage: 12V DC
• Output Current: 2A
• Input Voltage: 100-240V AC, 50/60Hz
• Mounting: DIN Rail (TS-35/7.5 or TS-35/15)
• Efficiency: 85%
• Protection: Overload, Overvoltage, Short Circuit
• Operating Temperature: -20°C to 50°C
• Housing Material: ABS Plastic
• Colour: Grey
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation around the power supply and do not exceed the rated output current. Suitable for use in dry, indoor environments only.
