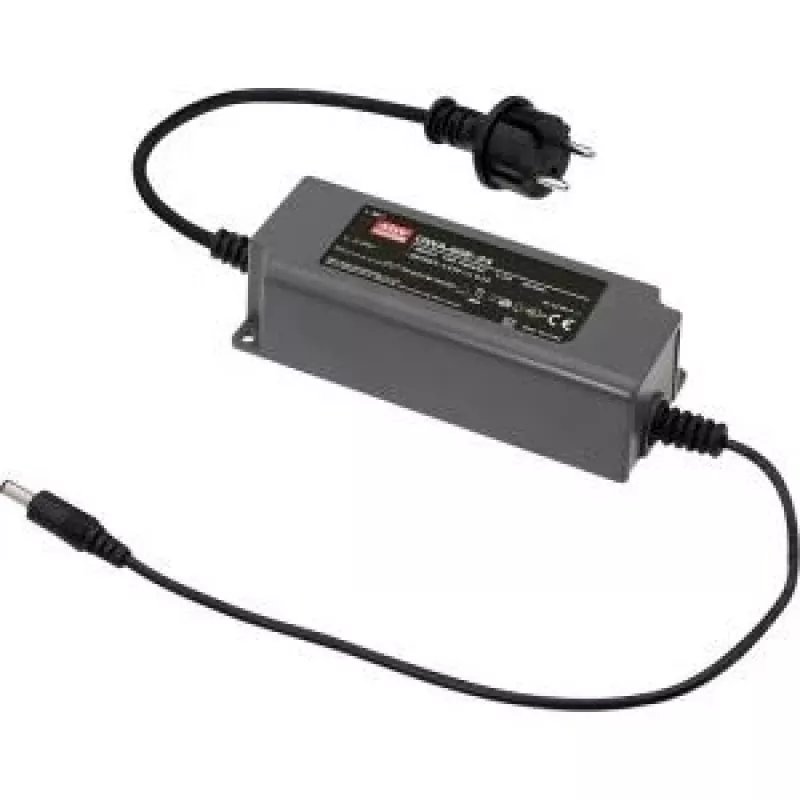

Fuente de alimentación encapsulada IP67 MEAN WELL OWA-60E-12 60W 12V 5A con enchufe de CA y cable DC

Outdoor LED installations, industrial sensors, and automation systems often need a reliable DC source that can withstand moisture and dust. The MEAN WELL OWA-60E-12 delivers a steady 12 V DC at up to 5 A, fully encapsulated in a rugged IP67-rated plastic housing. Its integrated European AC plug and hardwired DC output simplify wiring, while built-in protections guard against short circuits, overload, overvoltage, and overheating. With an efficiency of 87% and operation from -35 to +70 °C, this 60 W unit is a dependable choice for challenging environments.

Key specifications

• Output: 12 V DC, 5 A, 60 W
• Input: 90–264 V AC (127–370 V DC)
• Efficiency: 87%
• IP rating: IP67 (dust-tight, protected against temporary immersion)
• Protections: short circuit, overload, overvoltage, overtemperature
• Operating temperature: -35 to +70 °C
• Connectors: fixed AC cable with European (Schuko) plug; fixed DC cable with bare wires
• Ripple & noise: 120 mVp-p
• Safety standards: UL60950-1, TUV EN60950-1, EN61347-1, EN61347-2-13
• EMC: EN55032 Class B, EN61000-3-2 Class C, EN61000-3-3
• Cooling: free air convection
• MTBF: >100K hrs min. per MIL-HDBK-217F at 25 °C

Why choose it

This power supply is built for long-term outdoor and industrial use. The fully encapsulated plastic case prevents moisture ingress and mechanical damage, while the wide input voltage range allows operation on unstable mains. Its high efficiency reduces heat generation, extending component life. Compliance with major safety and EMC standards ensures safe integration into professional systems.

Ideal use cases

• Outdoor LED lighting and signage
• Industrial automation and control cabinets
• Sensor networks and IoT gateways
• Vending machines and kiosks
• Any 12 V DC device requiring a sealed, plug-in power source

Good to know

The OWA-60E-12 comes with a fixed European plug, so it is ready for use in most of Europe without an adapter. The DC output uses bare wires, allowing custom termination to match your installation. No additional enclosure is needed thanks to the IP67 rating. For best results, ensure adequate airflow around the unit during operation.
