Rack autoportante Triton RCA-12-A68-CAX-A1 12U blanco

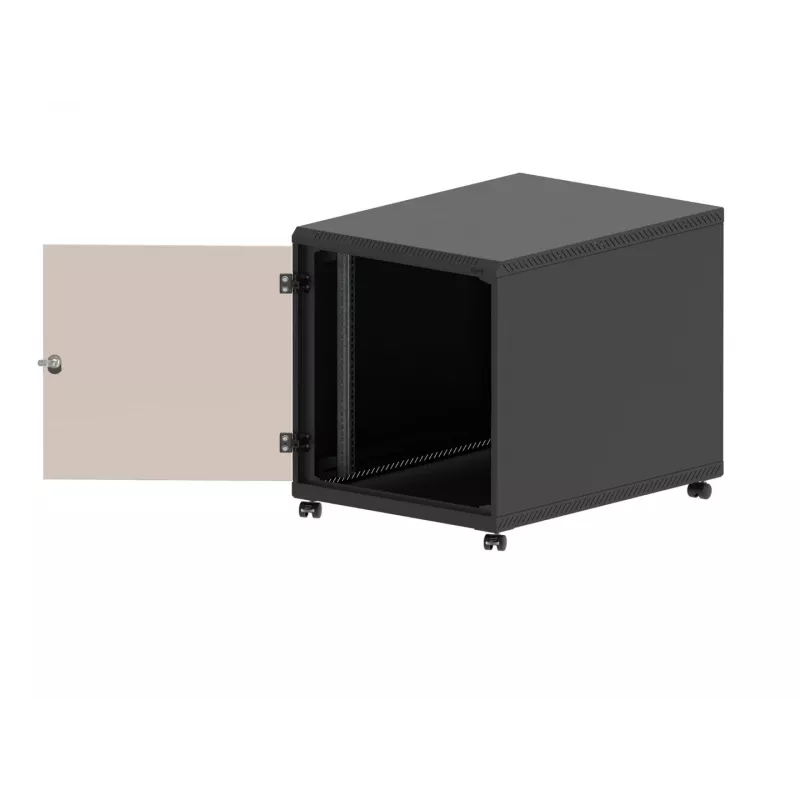

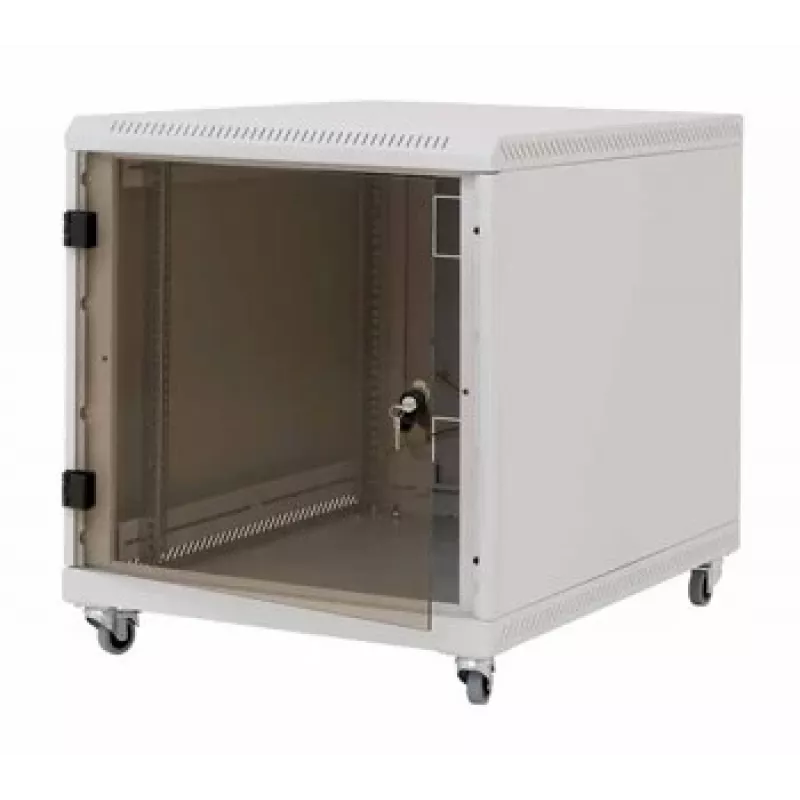

The Triton RCA-12-A68-CAX-A1 freestanding rack is a 12U cabinet designed to concentrate office network infrastructure under a desk. It features a robust welded steel construction with modern finishing and a standard glass door (alternative steel or perforated doors available). The rack is supplied on castors for mobility and includes two braked castors for secure positioning.

Advantages

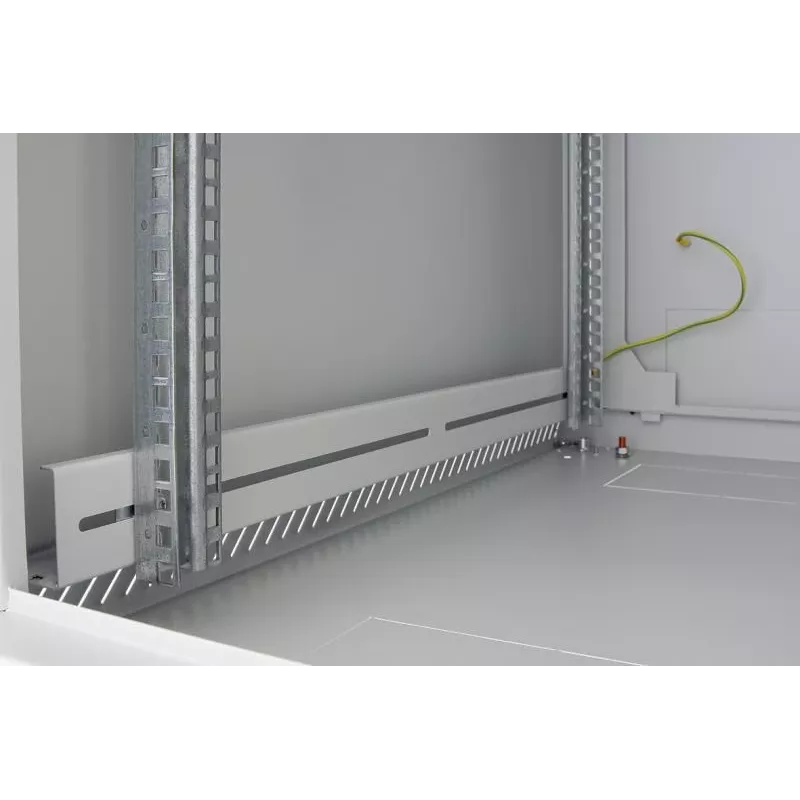

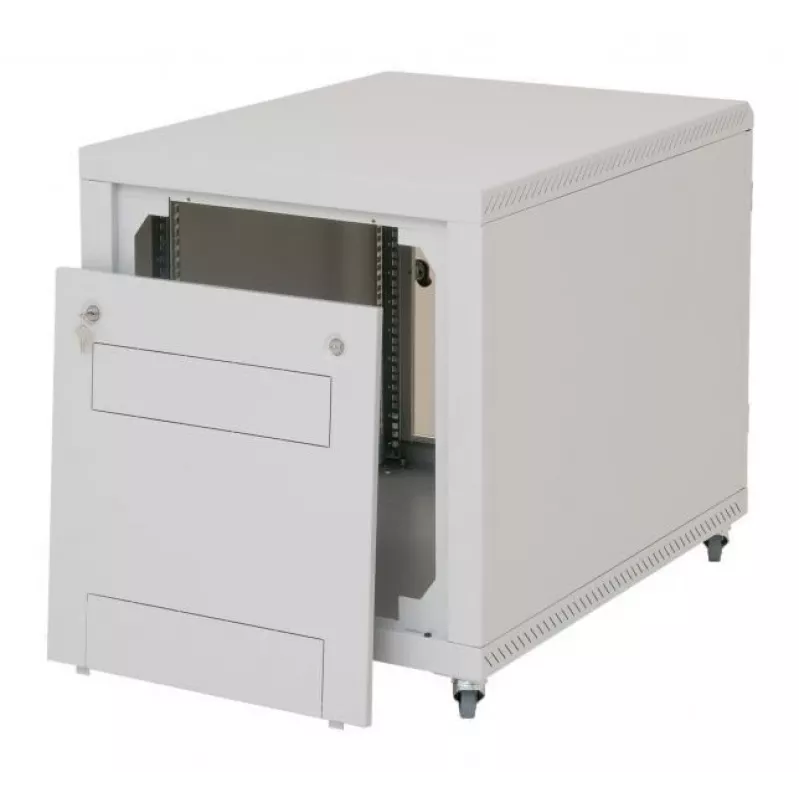

The welded construction and quality processing provide a durable and stable frame for equipment. The door hinge system allows an almost 180° opening and removable doors for easier access. Two pairs of adjustable 19" vertical rails are provided (with an additional pair of middle rails for 900 and 1000 mm depths). Breakout-type blanking panels and included brush-sealed frames protect cable entries from dust.

Suitable for

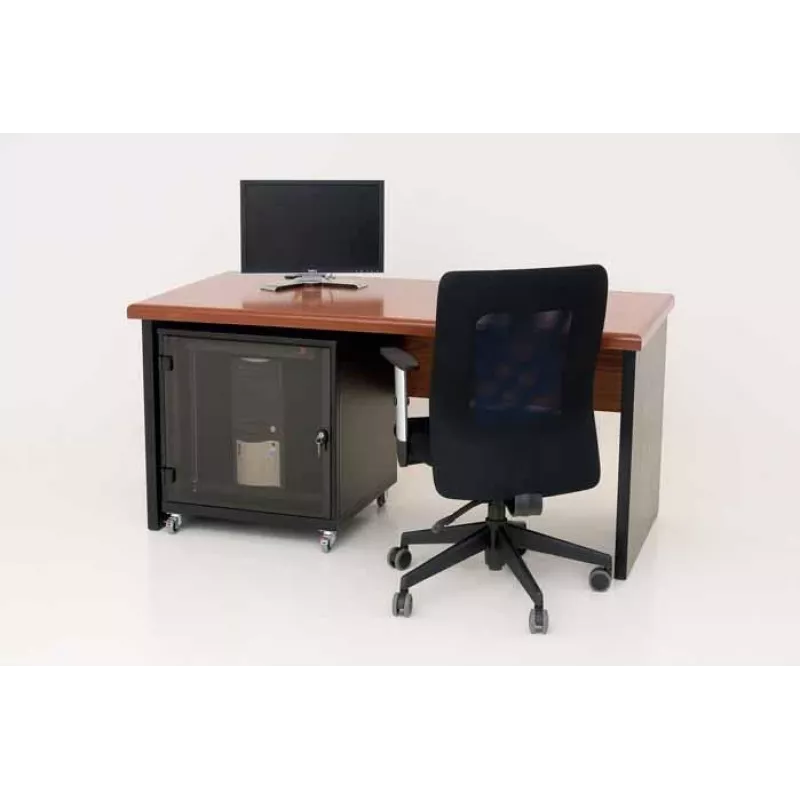

• Small office network equipment placement under desks
• Housing 19" switches, patch panels and small servers up to 12U
• Temporary installations that require mobility and easy access

Key specifications

• Rack capacity: 12U
• Size: 19"
• Weight: 40.1 kg
• Colour: White
• Construction: welded steel
• Door: glass (standard), optional steel or perforated

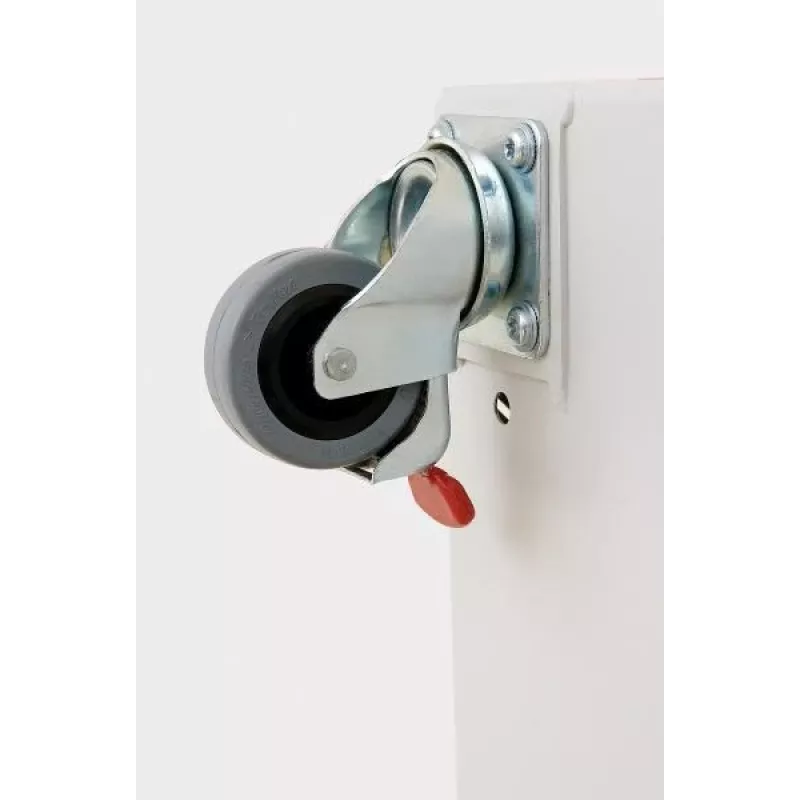

• Castors: included, two with brake
• Adjustable vertical rails: two pairs; additional middle rails for 900/1000 mm depths
• Cable openings: breakout-type blanking panels with brush-sealed frames

How to use

Place the rack in the required location and lock the braked castors to secure it. Install equipment on the adjustable 19" vertical rails, positioning the middle rails when using deeper cabinet variants. Use the hinge system for wide door opening or remove the door to facilitate installation. Route cables through the bottom or rear cable openings and seal them with the supplied plastic frame and brush blanking panel to reduce dust ingress.

Recommendations

For stable operation, distribute equipment weight evenly across the 12U frame and fix heavy devices at the lower U positions. Use the braked castors when the rack is stationary and ensure cable seals are fitted to maintain the internal environment.
