Rack de pared Triton Triton rack de 19 pulgadas montaje en pared 4U/500 puerta de cristal

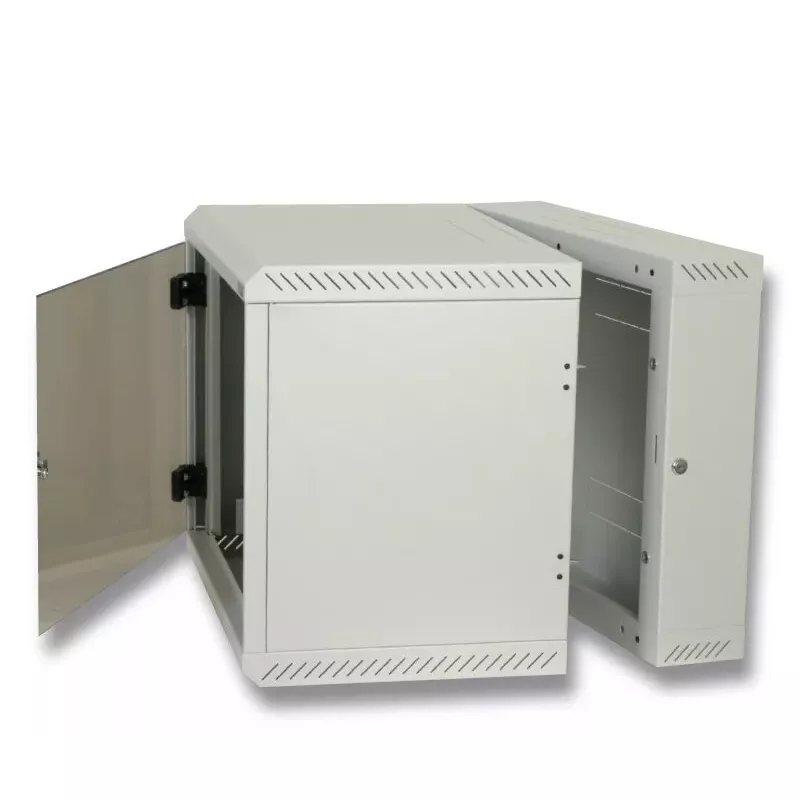

The Triton 19" Rack Wall-mount 4U/500 is a wall-mounted network cabinet with a 5 mm safety-hardened glass front door and steel construction. Designed to save floor space, the cabinet supports standard 19" equipment mounted on adjustable vertical rails and provides cable entry points on the top and bottom. The cabinet depth corresponds to the nominal size (shown in decimetres) and exact dimensions and technical parameters are listed in the product tables.

Advantages

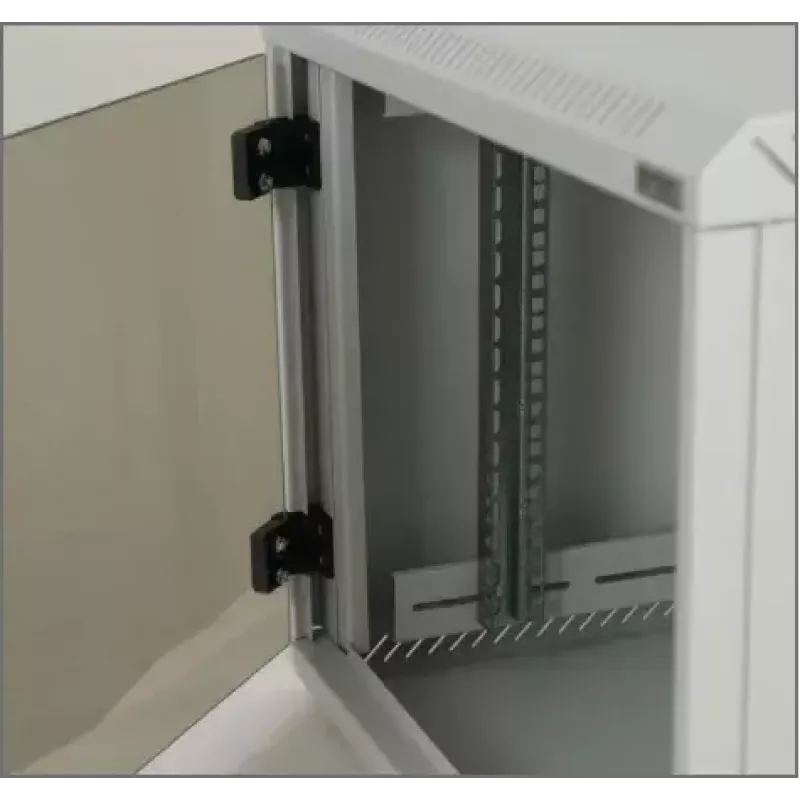

Front and fully metal doors open up to 180° on robust hinges, allowing easy access to installed devices. Perforated vertical rails and paneling enable natural air circulation around installed components, supporting passive cooling. Break-out style blanking panels at top and bottom provide convenient cable entry without additional cutting, and adjustable rails permit forward and backward depth adjustment for flexible mounting of 19" equipment.

Suitable for

• Mounting small network equipment such as switches, patch panels and routers
• Wall-mounted installations in offices, server rooms or comms cabinets
• Environments requiring space-saving equipment organization

Key specifications

• Form factor: 19" wall-mount rack
• Units (U): 4U
• Depth: 500 mm (nominal, shown as 5 decimetres)
• Front door: 5 mm safety-hardened glass
• Material: steel
• Maximum weight capacity: 20 kg
• Net weight: 15.5 kg
• Colour: Grey
• MPN: RBA-04-AD5-CAX-A1
• EAN: 8595105015285

How to use

Securely mount the cabinet to a suitable structural wall using appropriate anchors and fasteners rated for the combined weight of the cabinet and installed equipment. Install 19" devices on the vertical rails, adjusting the rails forward or backward to accommodate device depth. Route cables through the top and bottom break-out blanking panels by removing the required sections; use cable management and strain relief to protect connections. Ensure the glass door or metal door is fully opened on its hinges for easier access during installation and maintenance.

Recommendations

Please verify exact dimensions and load requirements in the product tables before installation. For equipment exceeding the specified maximum weight or producing significant heat, consider a larger cabinet or active cooling to maintain safe operating conditions.
