Rack independiente Digitus DN-19 42U-8/10-1

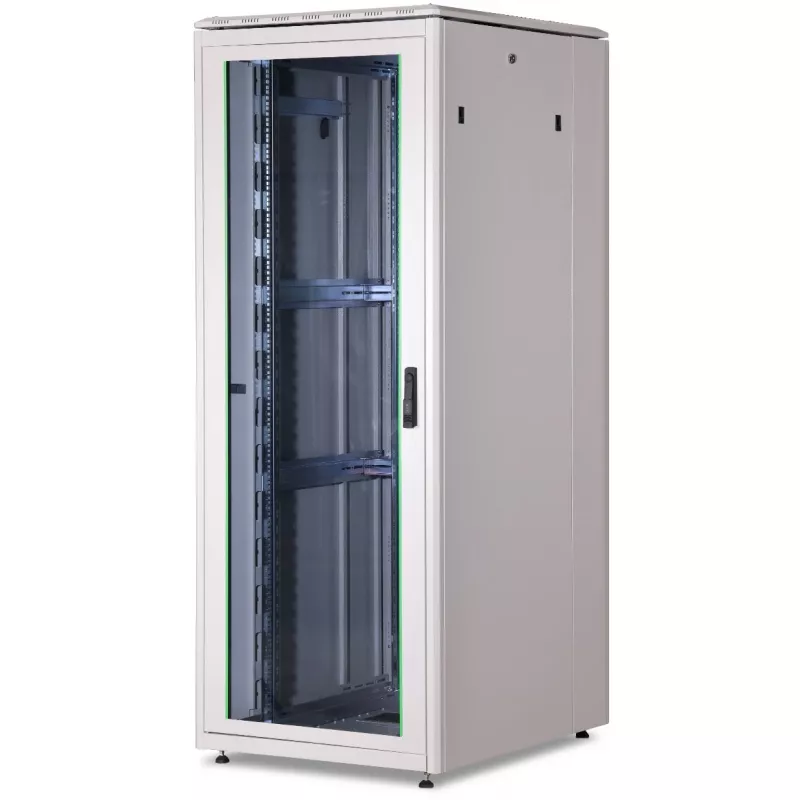

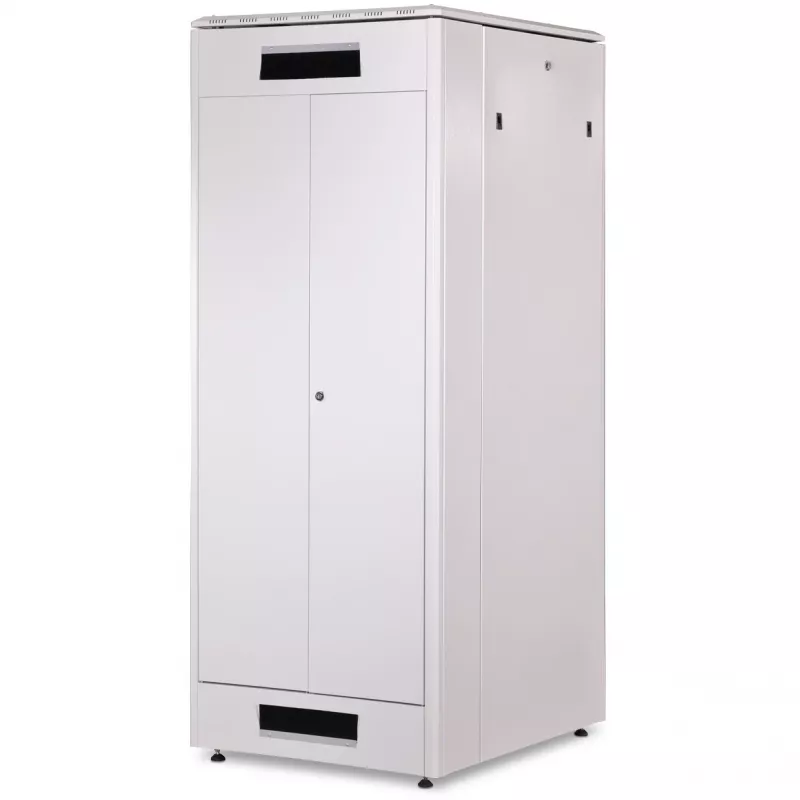

The DIGITUS Unique Series freestanding rack DN-19 42U-8/10-1 is a 19" network cabinet designed for high-demand IT infrastructure. With dimensions 800 x 1000 mm and a height of 2053 mm, it provides 42U of mounting space and a load capacity suitable for server and network equipment. Constructed from up to 1.5 mm sheet steel and finished in electrostatically applied powder coat (grey RAL 7035), the cabinet meets IP20 protection and offers modular side panels and doors for improved accessibility.

Advantages

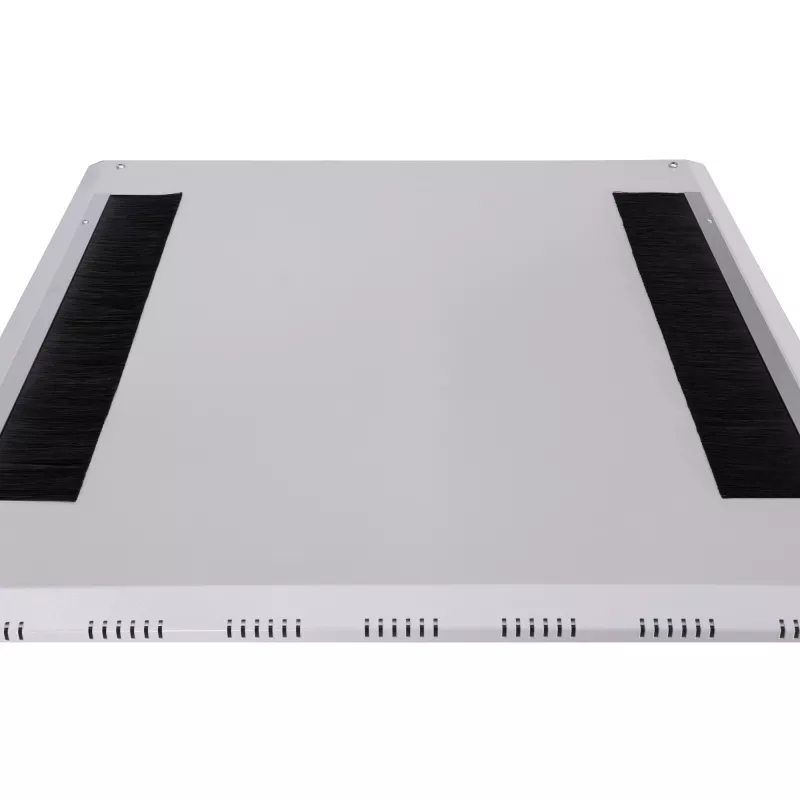

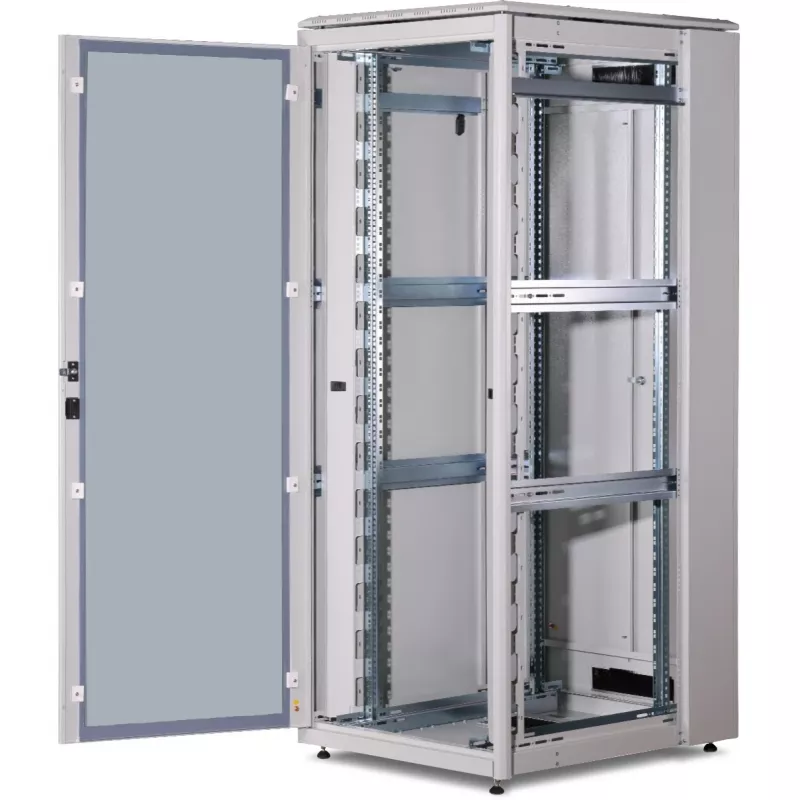

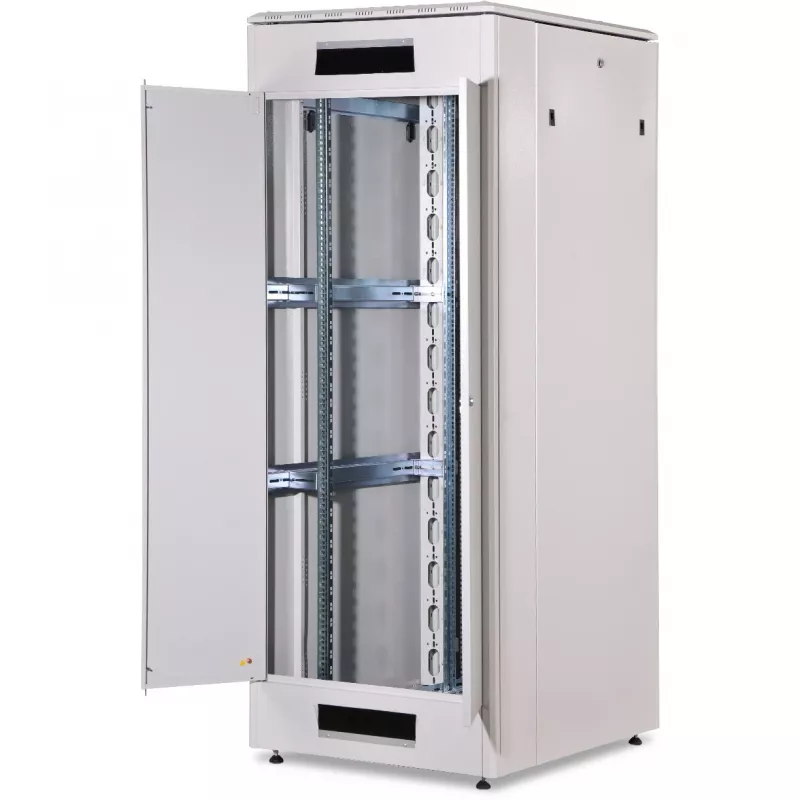

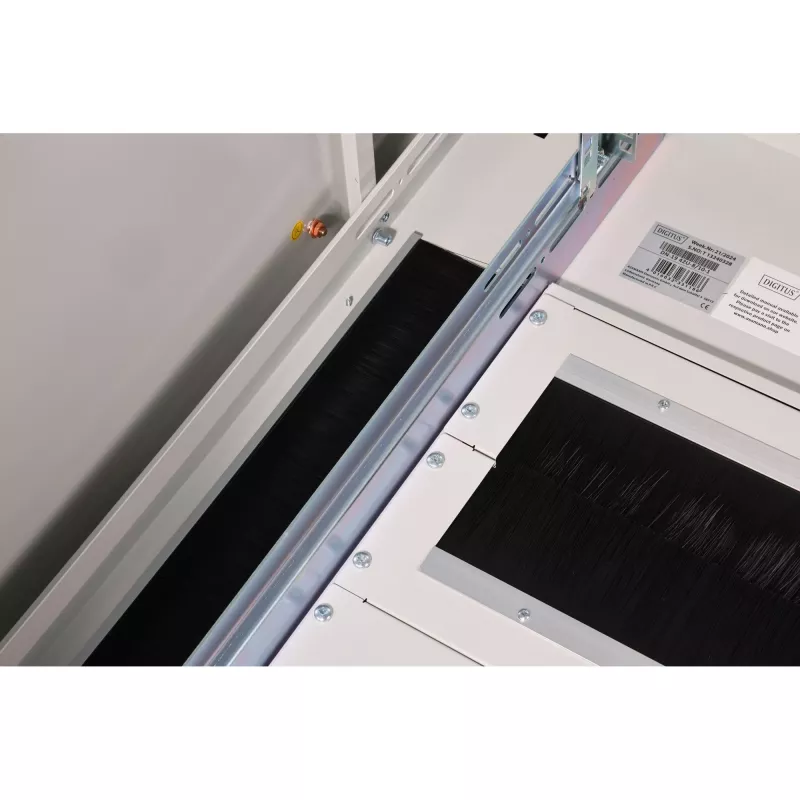

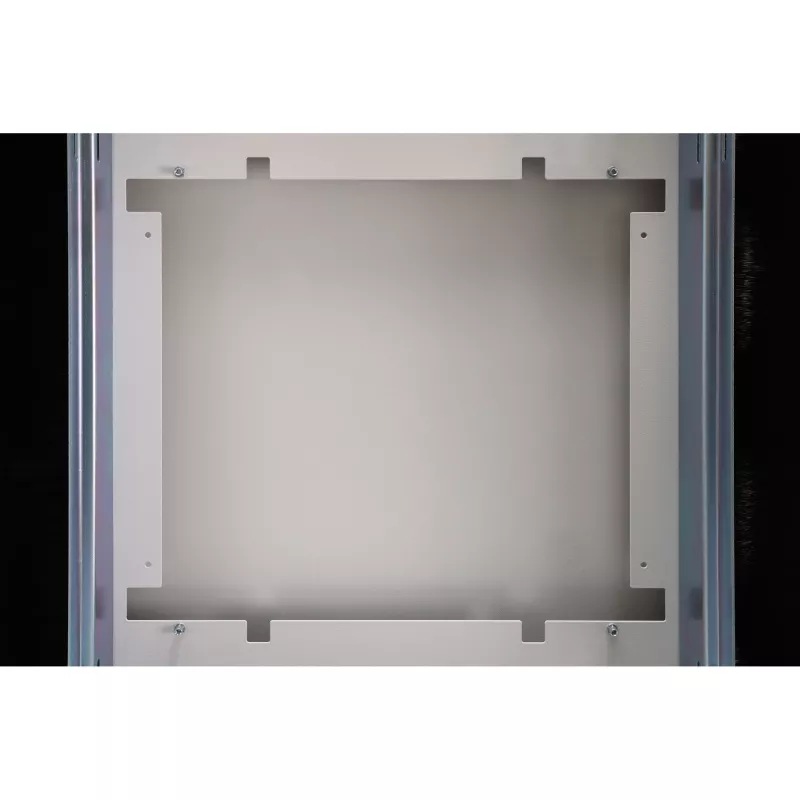

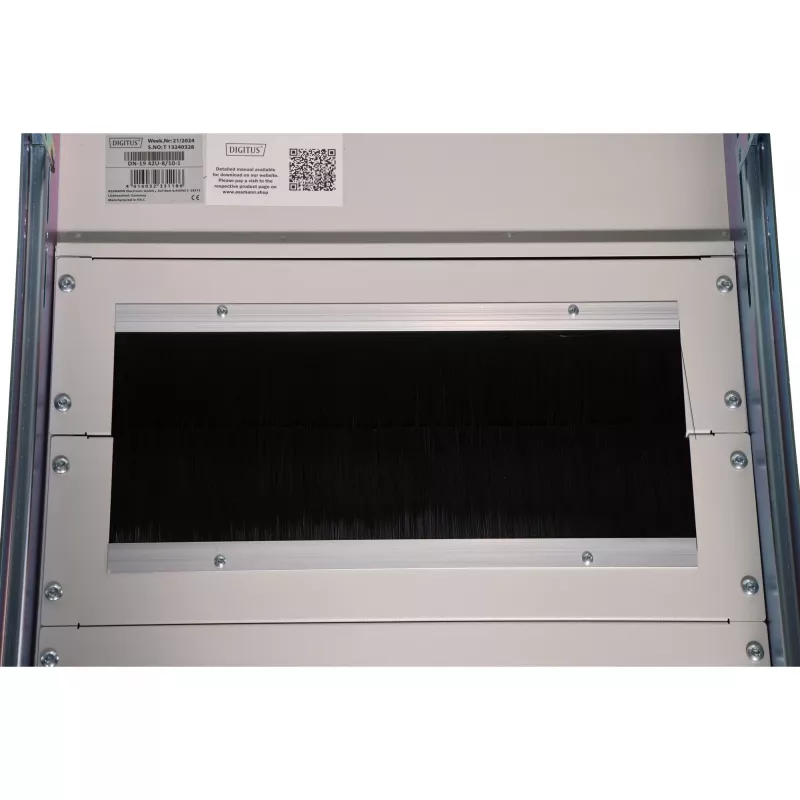

The rack features a special removable roof cover with ventilation slits and a mounting area for a fan unit, sliding floor cable entry with rubber seal, and brush-equipped inlets in roof and floor (from 26U). It includes a front door lock with pivot lever prepared for a profile half cylinder (adapter included), adjustable and labeled 483 mm (19") galvanized profile rails readable in both directions, and vertical cable channels with brackets (for 800 mm width). The collapsible design allows complete dismantling for transport or installation.

Suitable for

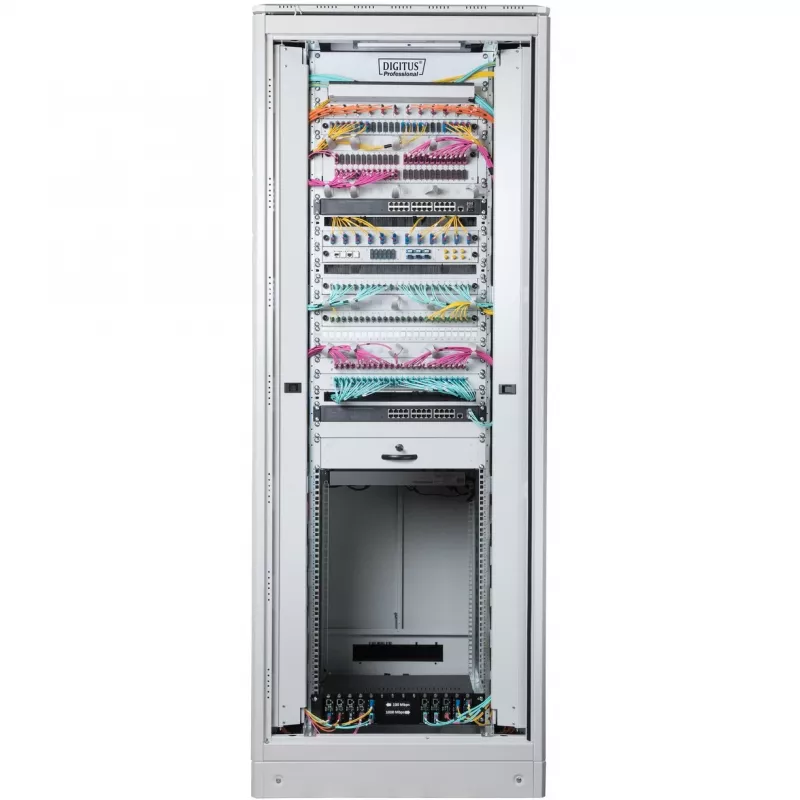

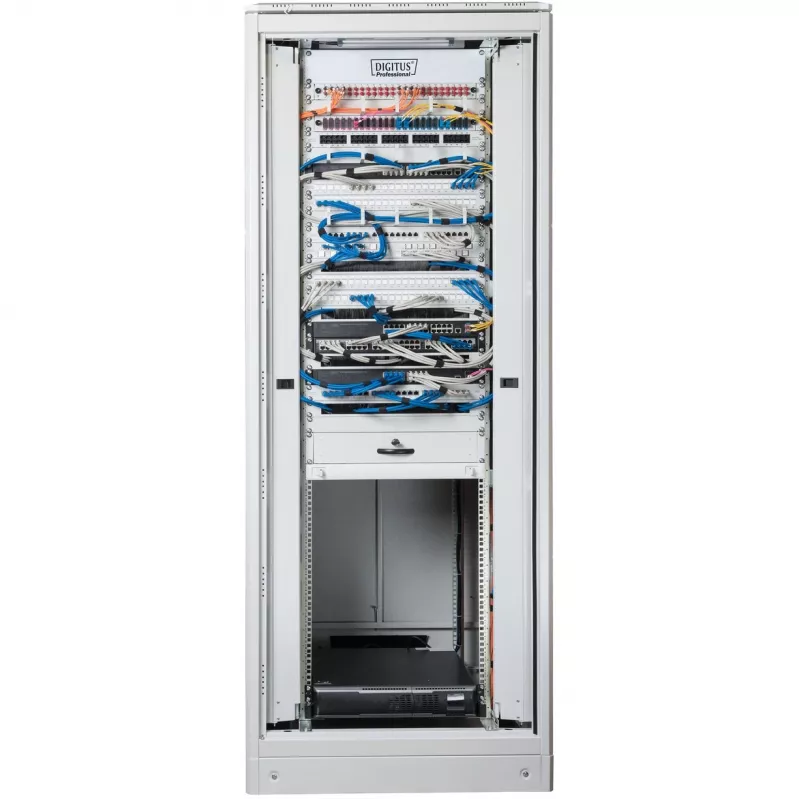

• Mounting servers, switches and patch panels in data centres and server rooms
• Network installations in office IT closets and wiring cupboards
• Telecommunications equipment and structured cabling projects

Key specifications

• Model: DN-19 42U-8/10-1
• Rack capacity: 42U
• Dimensions (W x D x H): 800 x 1000 x 2053 mm
• Load class / rating: up to 800 kg (maximum load as specified by manufacturer)
• IP rating: IP20
• Material: up to 1.5 mm sheet steel, powder coated (grey RAL 7035)
• Profile rails: two pairs of galvanized 483 mm (19") rails, depth adjustable, labeled in rack units

How to use

Place the freestanding rack on a level floor and secure it if required by site regulations. Remove side panels or doors if needed to facilitate cable routing and equipment installation. Adjust the depth of the 19" profile rails to suit the mounted devices, then mount servers, switches and patch panels using standard 19" mounting hardware. Route cables through the brush-equipped roof and floor inlets or the sliding cable entry with rubber sealing. If additional ventilation is needed, install compatible fan modules in the roof area using the removable cover designed for easy fan mounting.

Recommendations

Use the cabinet in indoor environments that meet IP20 conditions. Plan weight distribution across the rack to avoid overloading individual rails and keep heavier equipment in lower rack units. Use the built-in cable management features and brush inlets to maintain airflow and prevent dust ingress. For enhanced security, install a profile half cylinder lock in the front door using the included adapter.
