Rack independiente EFB Elektronik PRO-4288GR.0D

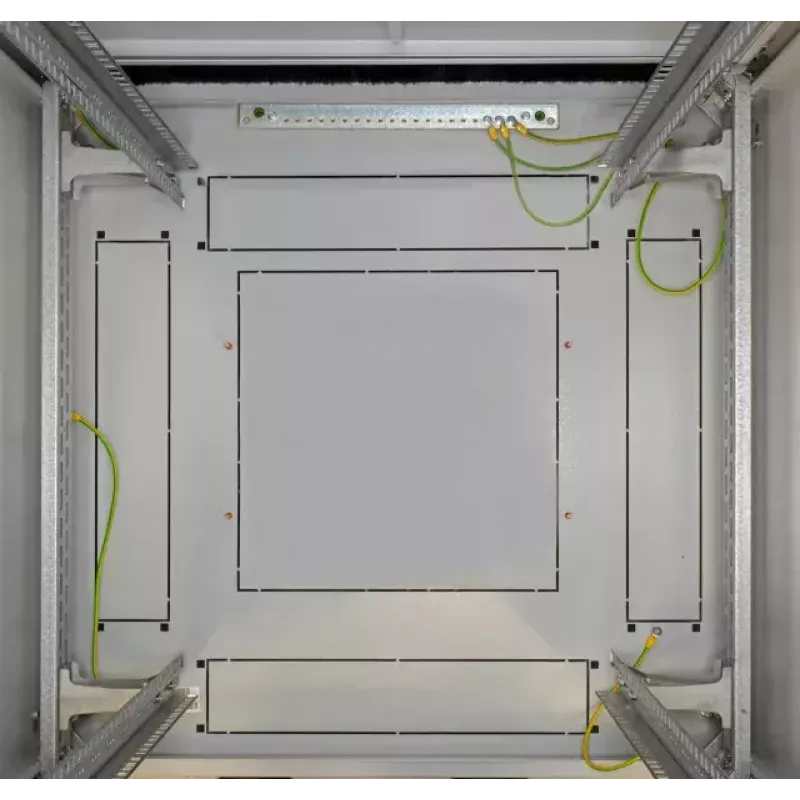

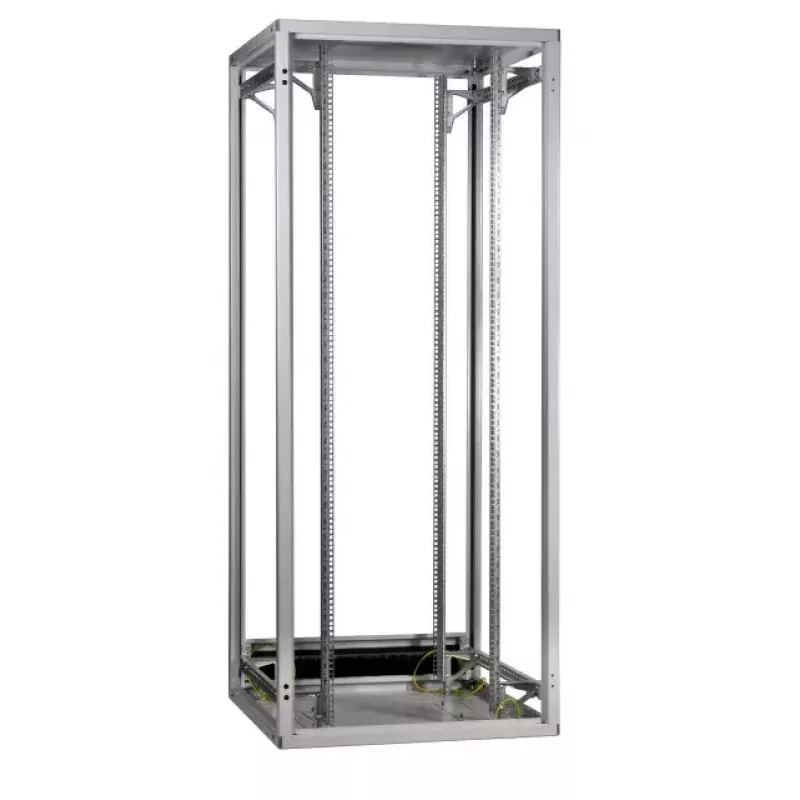

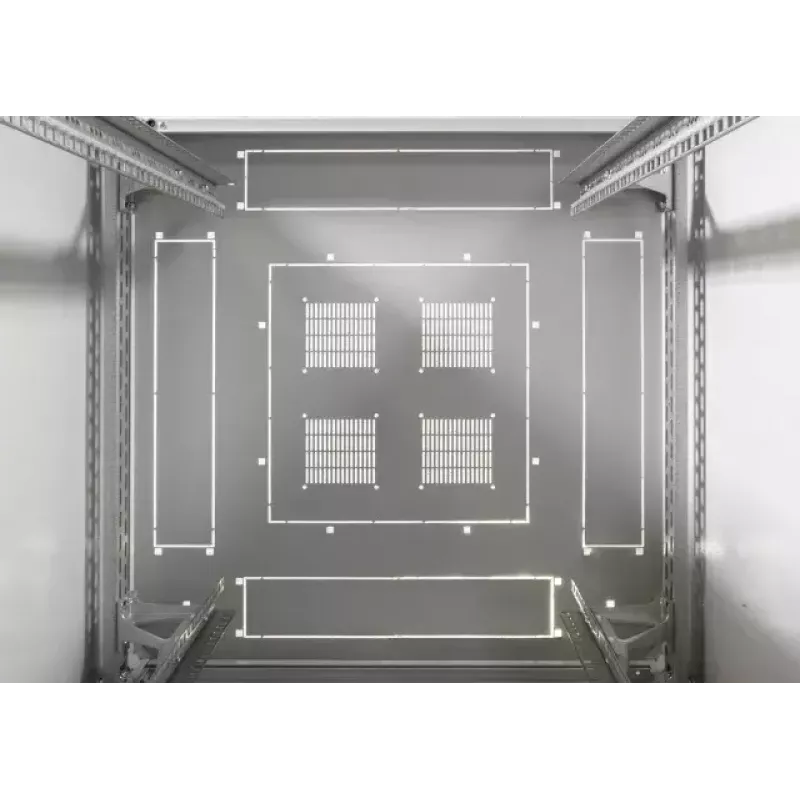

The EFB Elektronik PRO-4288GR.0D is a 19" freestanding 42U rack frame built to DIN41494 standards. Constructed from screwed steel sheet and delivered completely pre-assembled, the cabinet is self-ventilated and detachable. It includes four galvanised 19" profiles (two front, two rear) with stepless depth adjustment and contrarily numbered rack units. The delivery does not include front/rear doors or side panels to allow modular individual configuration; installed doors can be fitted with a left- or right-sided door stop. The roof and bottom each have four pre-punched openings (450 x 90 mm) for cable entry and for mounting fan units; for the 600 mm cabinet width variant, cable entry is rear only. All cabinet sections are internally earthed.

Advantages

The steel-sheet construction and pre-assembled design enable fast installation and robust support for mounted equipment. Galvanised, depth-adjustable 19" profiles provide flexible mounting options and the contrarily numbered U markings simplify installation and inventorying of equipment. Modular delivery without doors or side panels allows customised configuration to suit specific site requirements. Pre-punched cable and fan openings plus internal earthing support organised cabling and basic electrical safety.

Suitable for

• Server rooms and data centres housing 19" rack equipment
• Network closets and telecommunications installations
• Customised installations requiring modular doors and side panels
• Environments needing cable management and active cooling options

Key specifications

• Standard: 19" rack frame to DIN41494
• Rack capacity: 42U
• Dimensions (W×D×H): 800 × 800 × 1963 mm
• Material: screwed steel sheet, galvanised 19" profiles
• Weight capacity: up to 1000 kg (according to manufacturer data)
• IP rating: IP20
• Colour: Grey
• Delivery: frame only — front/rear doors and side walls not included

How to use

Position the pre-assembled rack where required, ensuring sufficient clearance for ventilation and cable access. Adjust the front and rear 19" profiles to the required depth for your equipment and secure devices using standard 19" mounting hardware. If doors or side panels are required, select compatible modules and fit them using the provided fixing points; door stops can be set left or right. Use the pre-punched roof and bottom openings for routed cables or for installing fan units; observe the rear-only cable entry restriction for 600 mm width models. Connect earthing as part of your site grounding procedure.

Recommendations

When installing equipment, distribute weight evenly across the rack and secure heavy items toward the bottom to maintain stability. Plan cable routes before mounting equipment and use the pre-punched openings to separate power and data cabling. Verify that installed cooling units and ventilation clearances meet the thermal requirements of your devices.
