Rack independiente EFB Elektronik PRO-4288TS.P1 42U negro 1000 kg

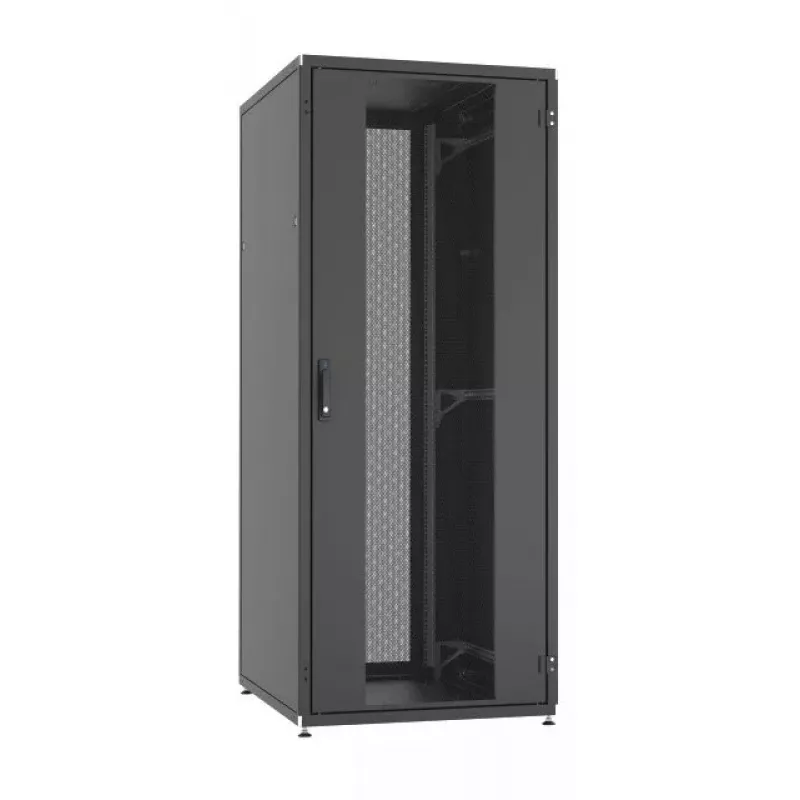

The EFB Elektronik PRO-4288TS.P1 freestanding 19" server rack offers a 42U mounting height in a robust steel sheet housing with a screwed frame. The cabinet is pre-assembled, self-ventilated and finished in black with IP20 protection, suitable for housing servers, switches and other 19" equipment. Inside are four galvanised, continuously depth-adjustable 19" profiles (two front, two rear) with reverse numbering of rack units. Front and rear doors use a 3-point turning handle (single-point up to 24U) with a lock and an exchangeable profile half-cylinder (30/10 mm) supplied according to DIN18252 / EN 1303. The cabinet includes internal earthing and a pre-assembled earthing bar at the rear centre.

Advantages

The cabinet provides stable load capacity up to 1000 kg and flexible equipment mounting thanks to depth-adjustable galvanised 19" profiles. Detachable side panels with two latch locks and selectable door stops allow convenient access and flexible installation orientations. Multiple pre-punched openings in roof and base enable organised cable entry and installation of fan units, while stackability and baying options simplify expansion and space planning.

Suitable for

• Housing 19" servers and rack-mount network equipment
• Data centres, server rooms and network cabinets in offices
• Environments requiring organised cable entry and ventilation

Key specifications

• Brand: EFB Elektronik, Model: PRO-4288TS.P1
• Rack capacity: 42U
• Maximum static load: 1000 kg
• Dimensions (W×D×H): 800 × 800 × 1963 mm

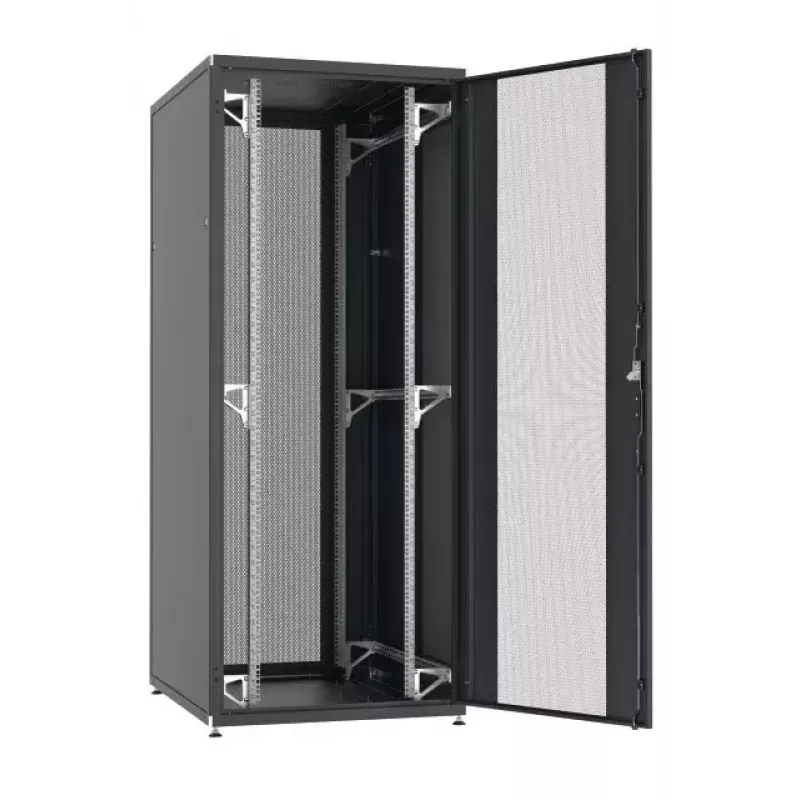

• Internal 19" profiles: 4 galvanised, depth-adjustable (2 front, 2 rear) with reverse RU numbering
• Doors: Front and rear with 3-point turning handle (1-point up to 24U), lockable, incl. exchangeable profile half-cylinder 30/10 mm (DIN18252 / EN 1303)
• Protection class: IP20
• Colour: Black
• Side panels: Detachable with 2× latch locking (locks keyed equal to door lock)

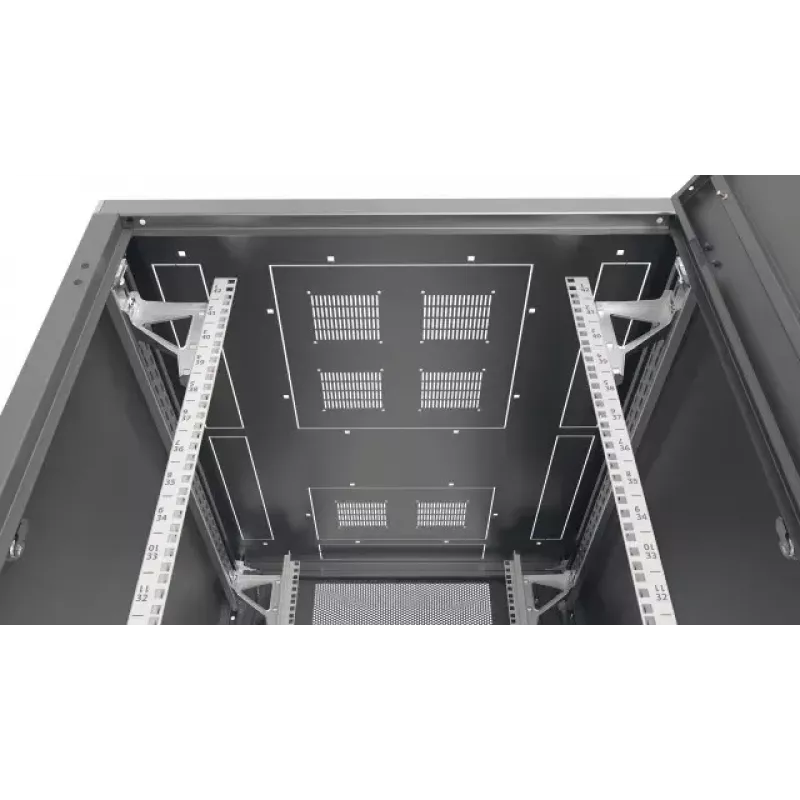

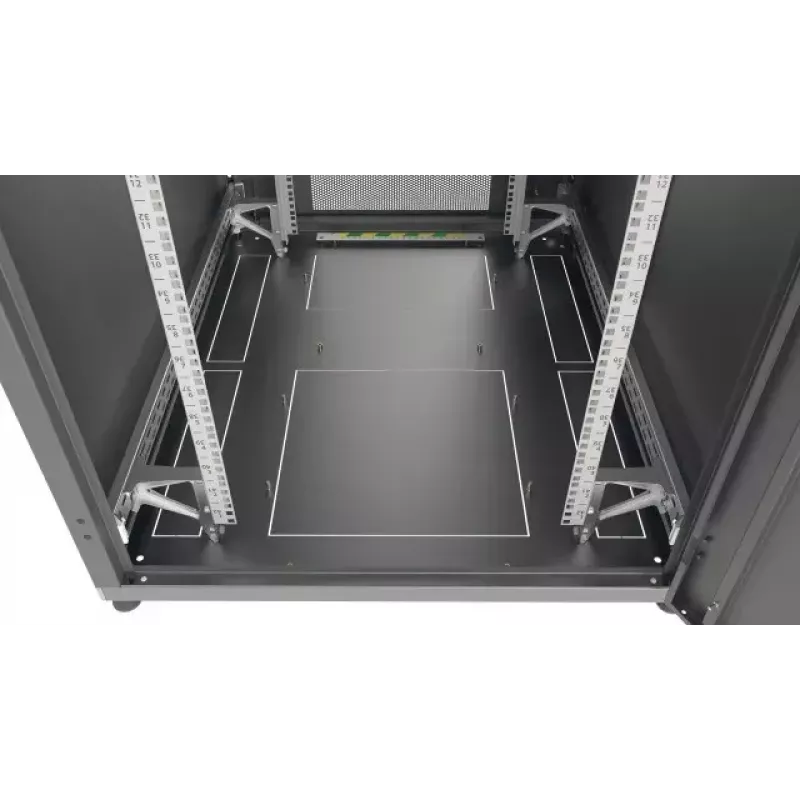

• Cable entry: Roof and bottom with multiple pre-punched openings (450 × 90 mm), for 600 mm width only rear entry; provision for fan units
• Earthing: Internal earthing of cabinet sections; rear-centre earthing bar pre-assembled

How to use

Place the freestanding rack on a stable, level floor and ensure sufficient clearance for airflow and service access. Install 19" equipment on the galvanised profiles, adjusting the profile depth to match device depth and using the provided RU markings for correct positioning. Route cables through the pre-punched openings in the roof or base and fit fan units where required. Lock doors and side panels after installation to secure equipment; the profile half-cylinder can be exchanged by the customer if a different lock configuration is required.

Recommendations

Ensure the cabinet is connected to building earthing before installing equipment, distribute heavy equipment evenly to keep the centre of gravity low, and allow space for ventilation and cable management. For side-by-side baying, use the manufacturer baying set or the specified M6 screw set when panels are removed.
