Rack independiente ROLINE Pro 42 U 19" armario de servidor 800x1000 gris

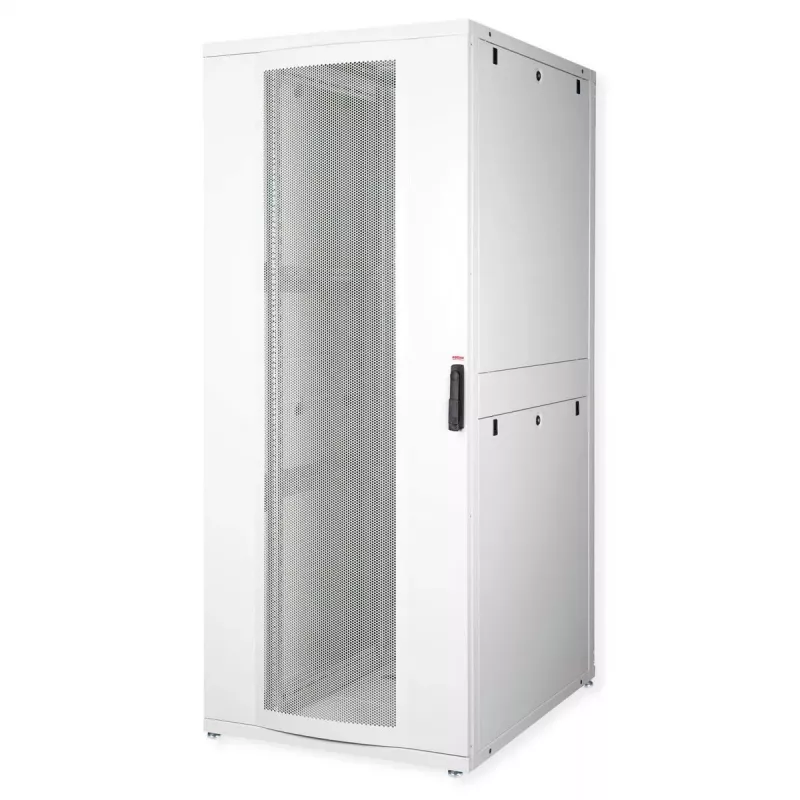

Freestanding 19-inch server rack ROLINE Pro 42U (800x1000 mm) is designed for flexible and convenient network cabling and equipment installation. The steel cabinet supports a maximum load of 1000 kg and offers adjustable depth rails, improved airflow through perforated doors and roof, and modular removable side panels for easier access. Available in grey (RAL 7035) with an IP20 rating and adjustable feet for stable placement.

Advantages

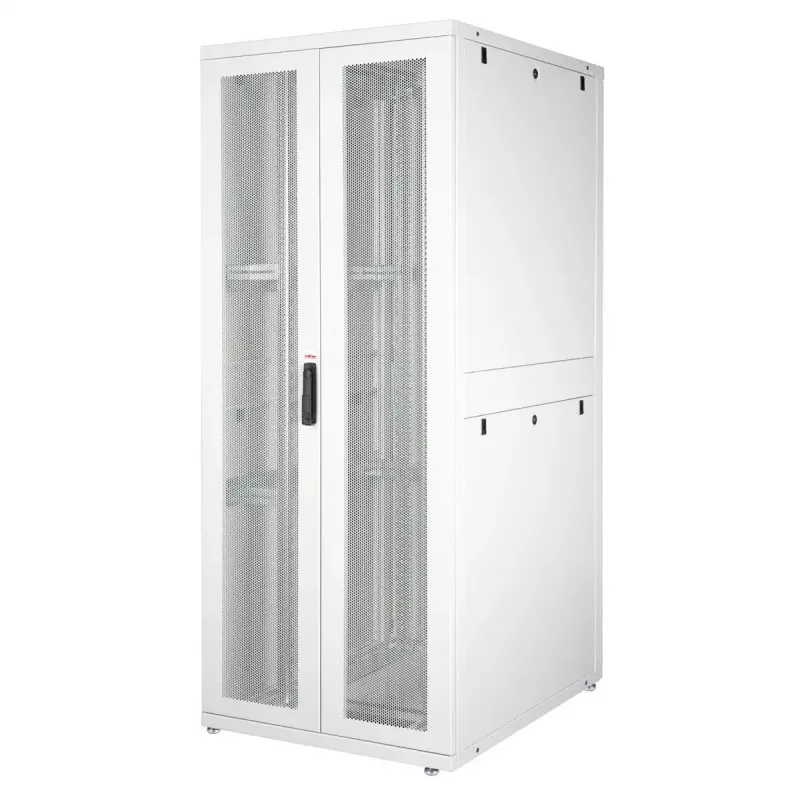

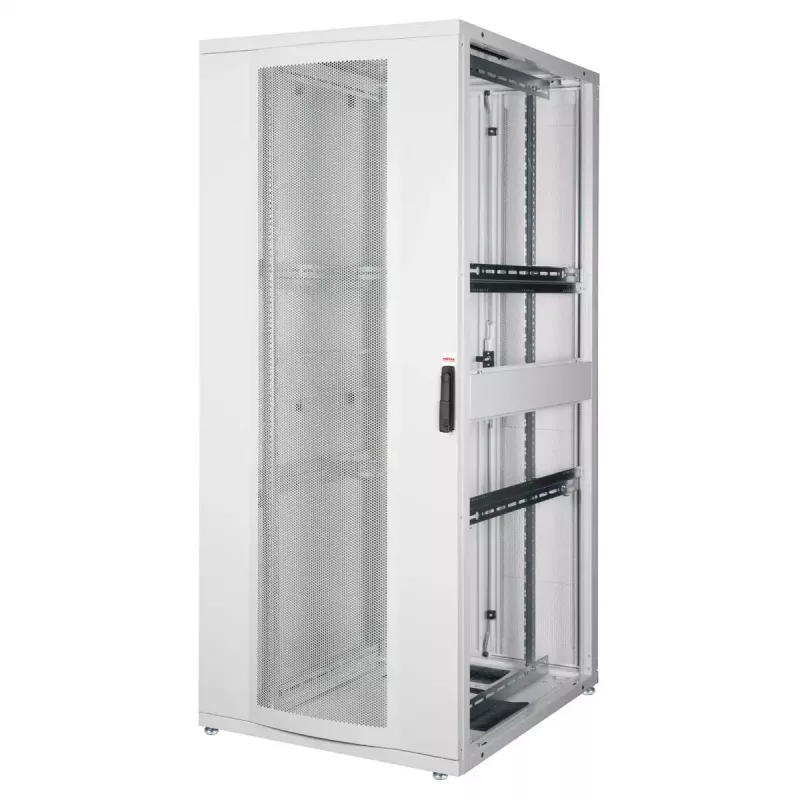

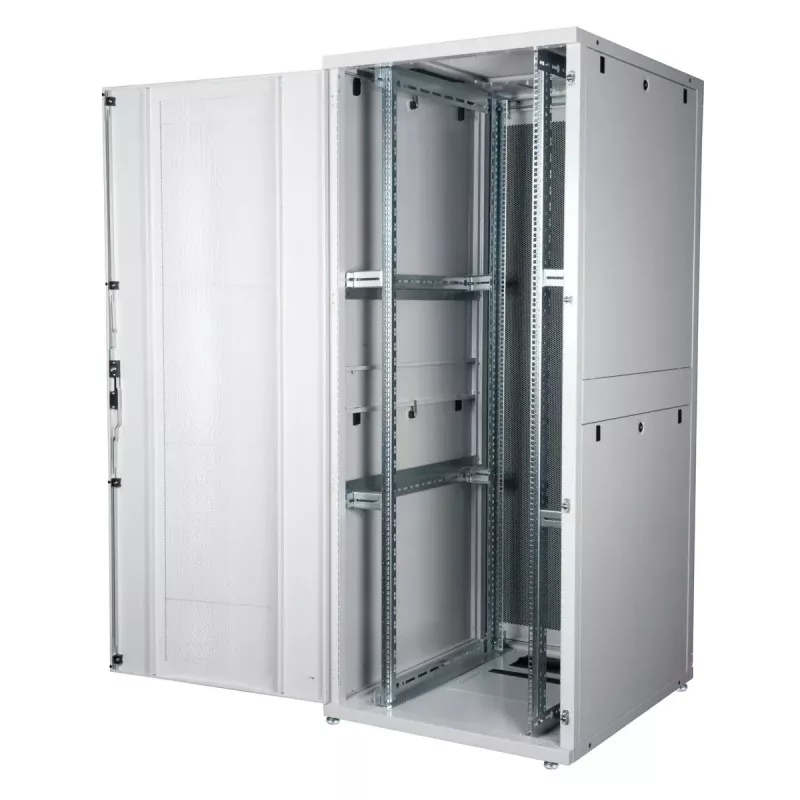

The ROLINE Pro 42U rack combines a robust steel construction (material thickness up to 2.0 mm) with galvanised 19" profile rails that include dual-direction readable U markings and depth adjustment. Perforated single-leaf front and double-leaf rear doors, a perforated roof for fan module installation, brush and foam-sealed cable inlets on roof and base, and replaceable hinges and removable panels provide practical accessibility and good ventilation for installed equipment.

Suitable for

• Server installations in small to medium data rooms
• Network equipment racks (switches, patch panels, routers)
• Telecommunications and structured cabling systems
• Environments requiring secure, lockable equipment housing

Key specifications

• Form factor: 19-inch freestanding server rack
• Height: 42 U
• External dimensions: 800 x 1000 mm
• Maximum load capacity: 1000 kg
• Weight: 125.8 kg
• Protection rating: IP20
• Material: steel, up to 2.0 mm thickness
• Finish: electrostatic powder coating, grey (RAL 7035)
• Rails: two pairs of galvanised 19" profile rails, depth-adjustable

How to use

Place the freestanding rack on a level surface and adjust the feet for stability. Install equipment on the 19" profile rails, using the U markings to position devices accurately; adjust rail depth as required and secure with appropriate mounting hardware. Route cables through the brush inlets or the slide-on inlet with foam rubber seal to maintain cable organization and reduce dust ingress. Use the perforated doors and roof openings to mount fan modules for additional cooling when needed.

Recommendations

For optimal airflow and equipment longevity, reserve space at the front and rear for unobstructed air intake and exhaust, mount fans if racked equipment generates significant heat, and secure the rack to the floor if local regulations or site conditions require fixed anchoring.
