ROLINE Armario de pared 19" Pro 7HE, 600x450 mm AnxPr, negro, cerradura de llave, IP20

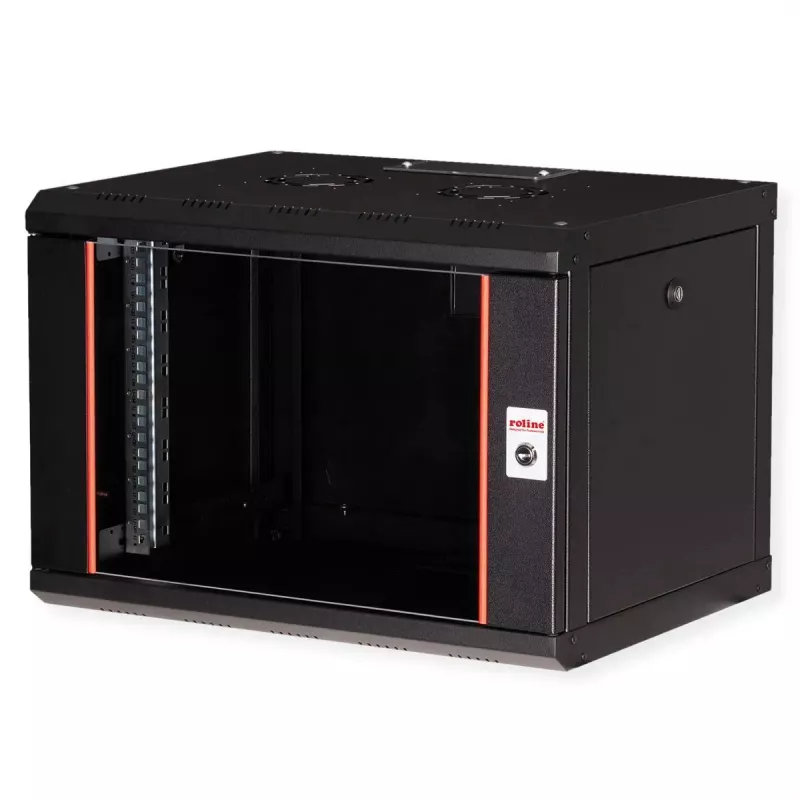

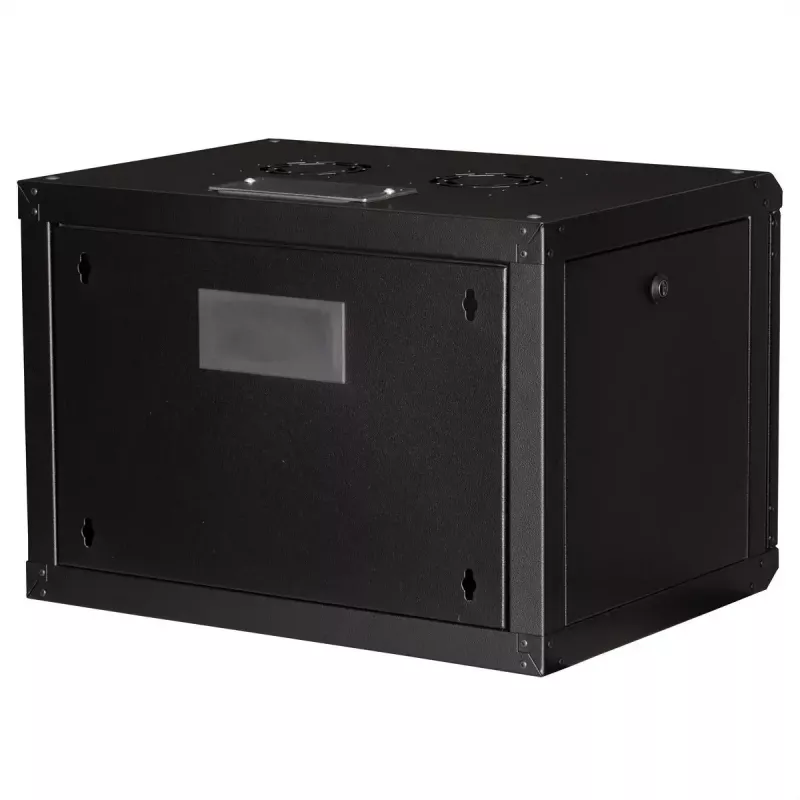

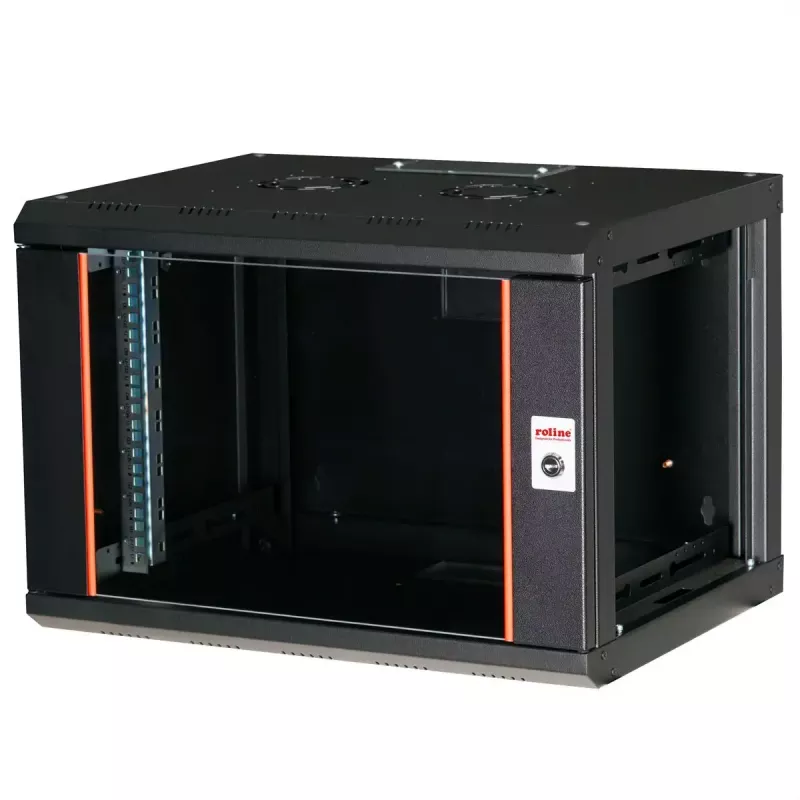

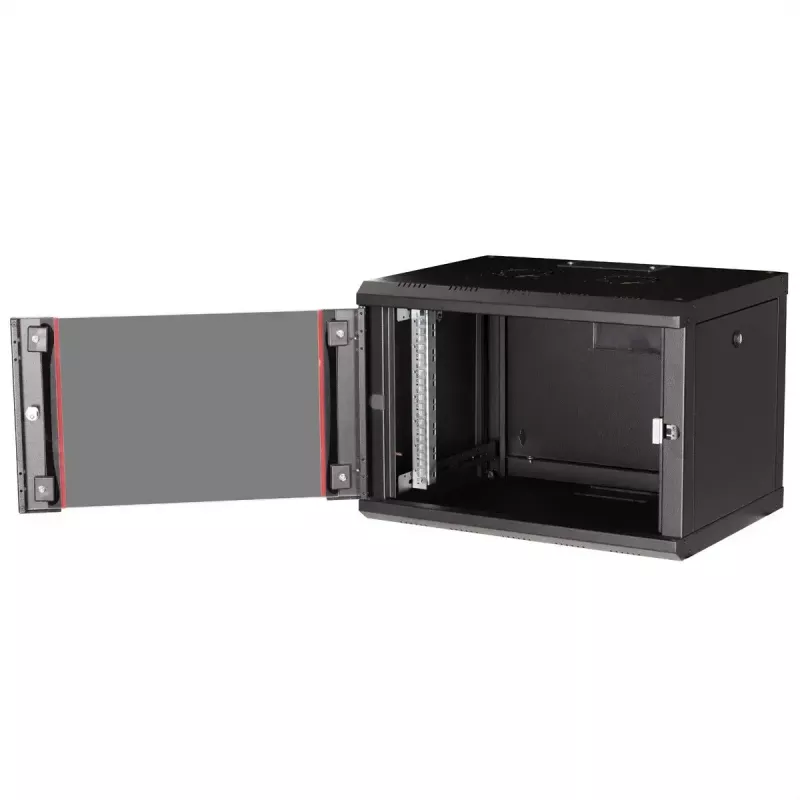

The ROLINE 19-inch wall-mounted rack Pro 7U (600x450 mm WxD) in black is a compact cabinet designed for mounting 19" network and server equipment. It provides front rack rails, a key lock for access control and IP20 protection. The enclosure includes a slide-on cable inlet in the roof with a foam rubber seal, punched cable inlets with plastic covers on the rear panel and base plate, and a roof area prepared for an optional fan module. Inside are adjustable, galvanised profile rails compatible with standard 19" (483 mm) equipment and adjustable in depth. The cabinet is constructed from robust steel sheet up to 1.5 mm thick and is powder-coated in black (RAL 9005). Side panels and the front door are modular, lockable and removable to improve accessibility. Wall mounting is performed by fastening the rear panel to the wall and then attaching the housing; optional levelling feet or castors can convert the unit to a free-standing enclosure.

Advantages

The rack combines a compact 7U size with solid steel construction and standard 19" mounting rails, offering secure and space-saving housing for network devices. Removable and lockable side panels and door increase serviceability while the roof cable inlet and punched rear/base openings simplify cable management. Depth-adjustable rails and a fan-ready roof area add flexibility for different equipment setups.

Suitable for

• Small server rooms and network cabinets in offices
• Telecom or network closets where a compact 7U solution is needed
• Mounting 19" switches, patch panels, small routers and power distribution units

When it may not be suitable

The cabinet is not intended for large server deployments or equipment requiring more than 7U of rack space. With an IP20 rating it offers protection against solid objects larger than 12 mm but is not suitable for dusty or wet industrial environments where higher ingress protection is required. For heavy or very deep equipment, check weight and depth limits before installation.

Key specifications

• Rack units: 7U (483 mm 19" standard)
• External dimensions (WxD): 600 x 450 mm
• Material: Steel sheet up to 1.5 mm thickness
• Finish: Powder-coated black (RAL 9005)
• Protection class: IP20
• Front locking: Key lock
• Cable management: Roof slide-on inlet with foam seal; punched rear and base inlets with covers
• Internal rails: Galvanised profile rails, depth-adjustable
• Ventilation: Roof area prepared for fan module
• Mounting: Wall-mounted via rear panel; optional levelling feet or castors for freestanding use

How to use

Fix the rear panel to a suitable, load-bearing wall using appropriate anchors and fasteners, then attach the cabinet housing to the mounted panel. Install equipment into the front rack rails, adjusting rail depth as needed and securing devices with standard rack screws. Route network and power cables through the roof slide-on inlet or punched rear/base openings and seal or cover unused inlets. If active cooling is required, install a compatible fan module in the roof area. For a freestanding configuration fit optional levelling feet or castors according to the manufacturer instructions.

What to consider before purchase

• Confirm device depth and weight to ensure compatibility with 600x450 mm dimensions and rail depth
• Verify that 7U of rack space is sufficient for your equipment and future expansion
• Consider environmental protection needs—IP20 is not suitable for dusty or wet locations
• Plan cable entry and cooling requirements (fan module optional)

Recommendations

Use the lockable front door and removable side panels for secure access control and straightforward maintenance. Distribute weight evenly on the rails and allow clearance for airflow; use the roof inlet and rear/base openings to keep cables organised and reduce strain on connections.
