Rack independiente Digitus DN-19 22U-6/8-B-1

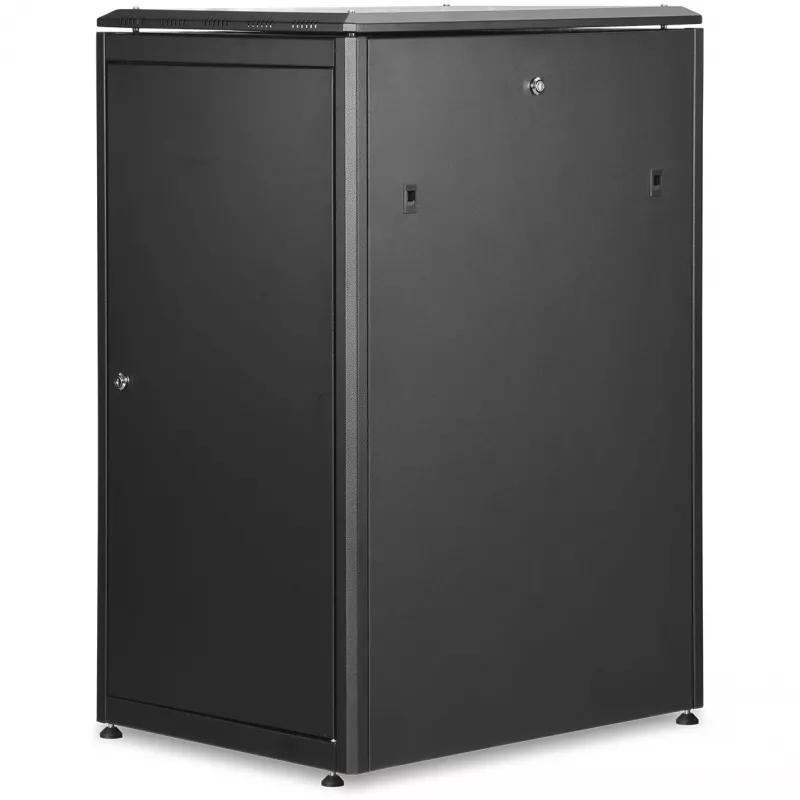

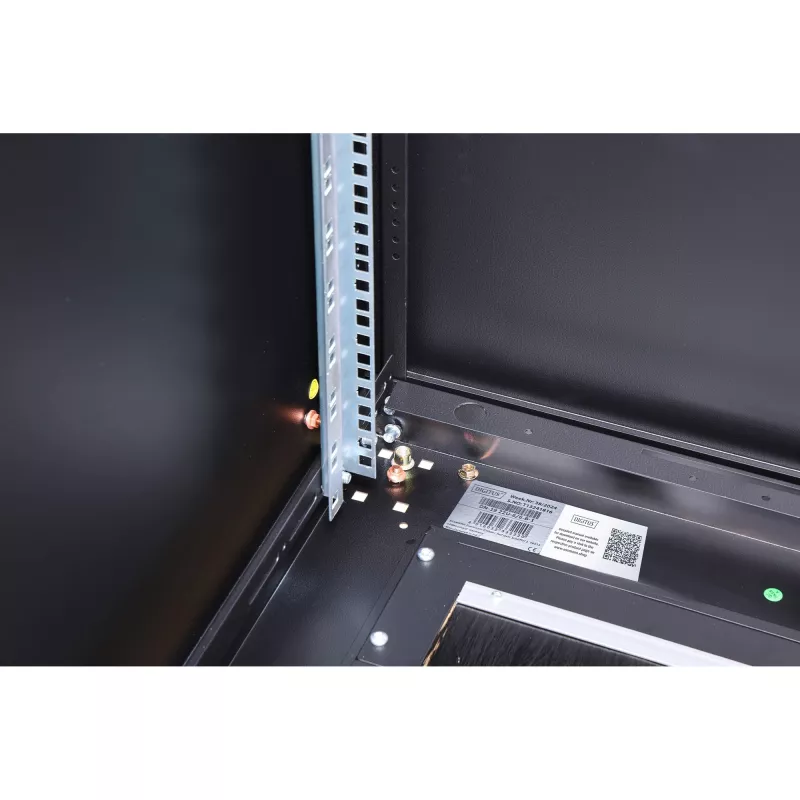

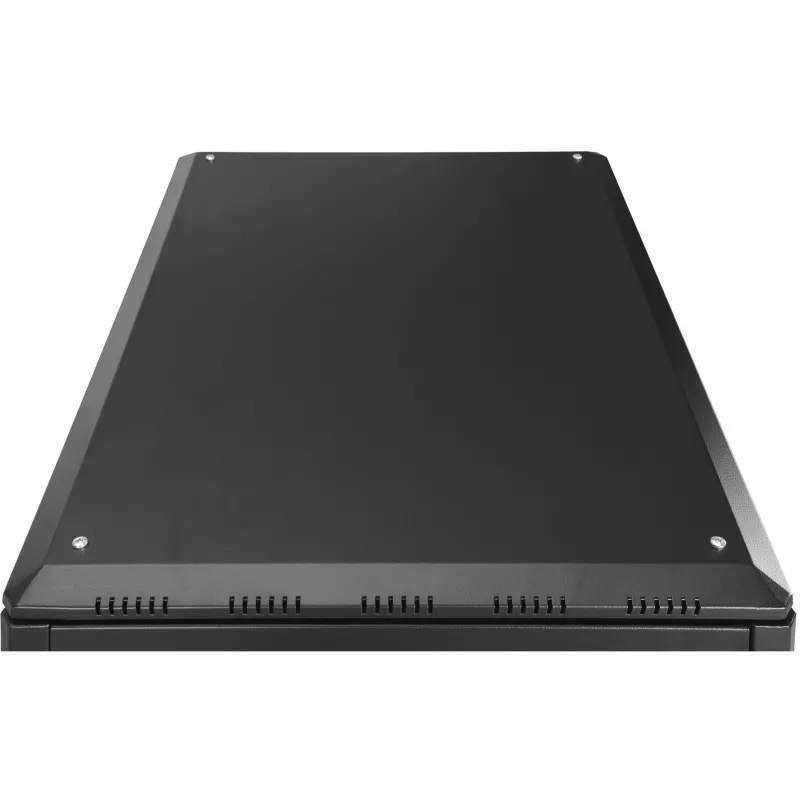

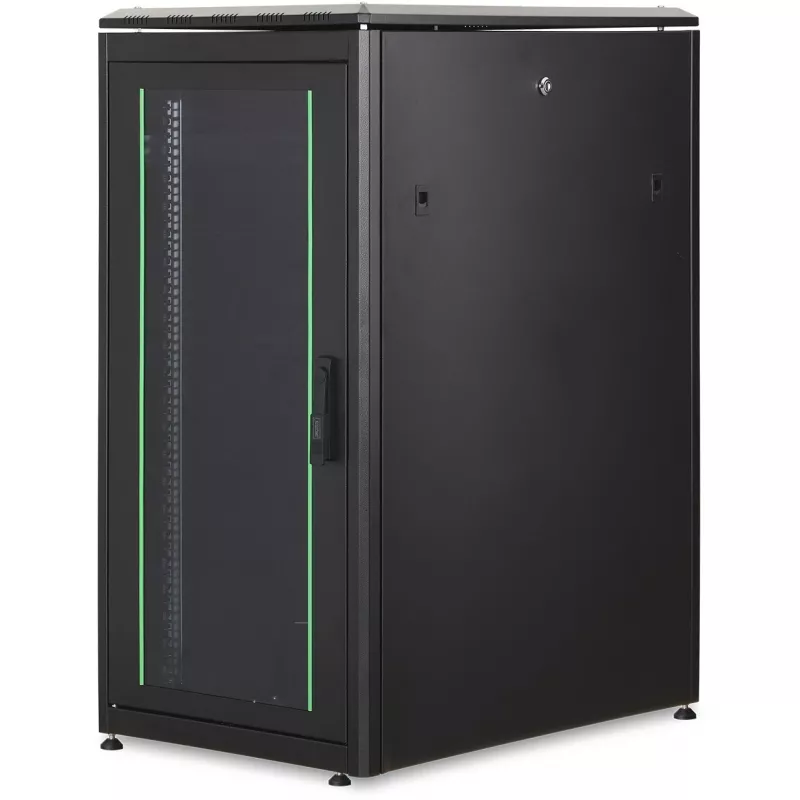

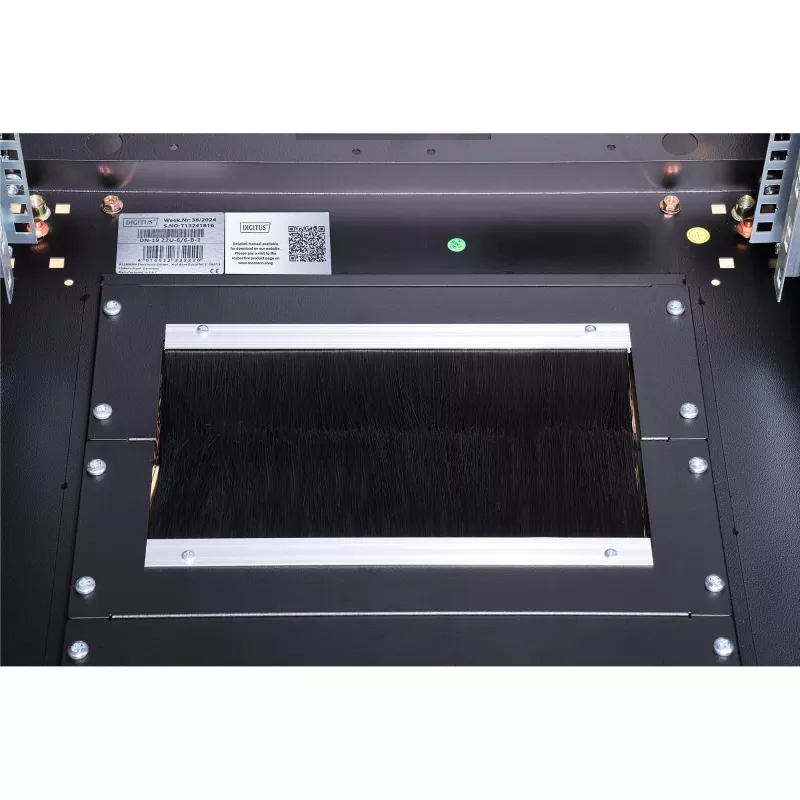

The DIGITUS Unique Series freestanding rack DN-19 22U-6/8-B-1 is a 22U network cabinet designed for demanding IT infrastructure environments. Constructed from up to 1.5 mm sheet steel and finished with electrostatic powder coating in jet black (RAL 9005), the rack provides IP20 protection and supports a maximum load of 800 kg. It includes adjustable 483 mm (19") profile rails labeled in rack units, a special removable roof cover with ventilation slits for fan module mounting, sliding cable entry with rubber sealing at the base and brush-equipped inlets in roof and floor for flexible cable routing.

Advantages

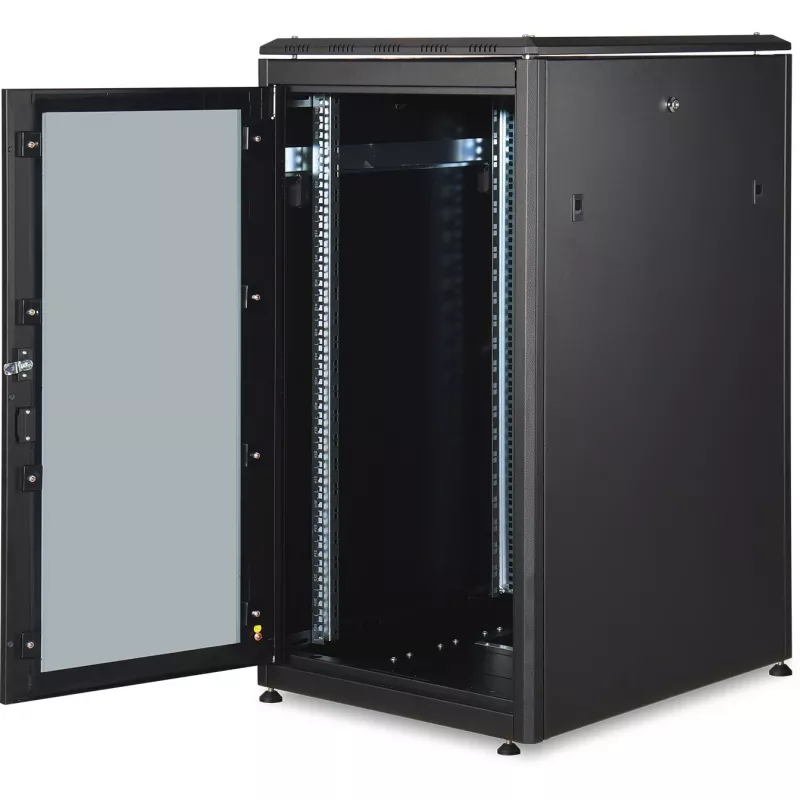

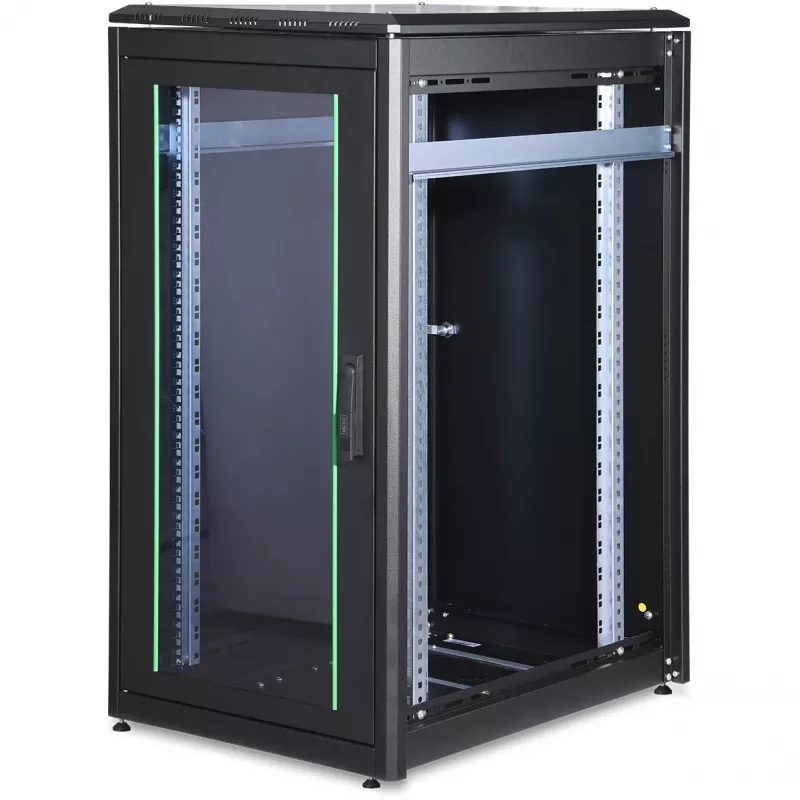

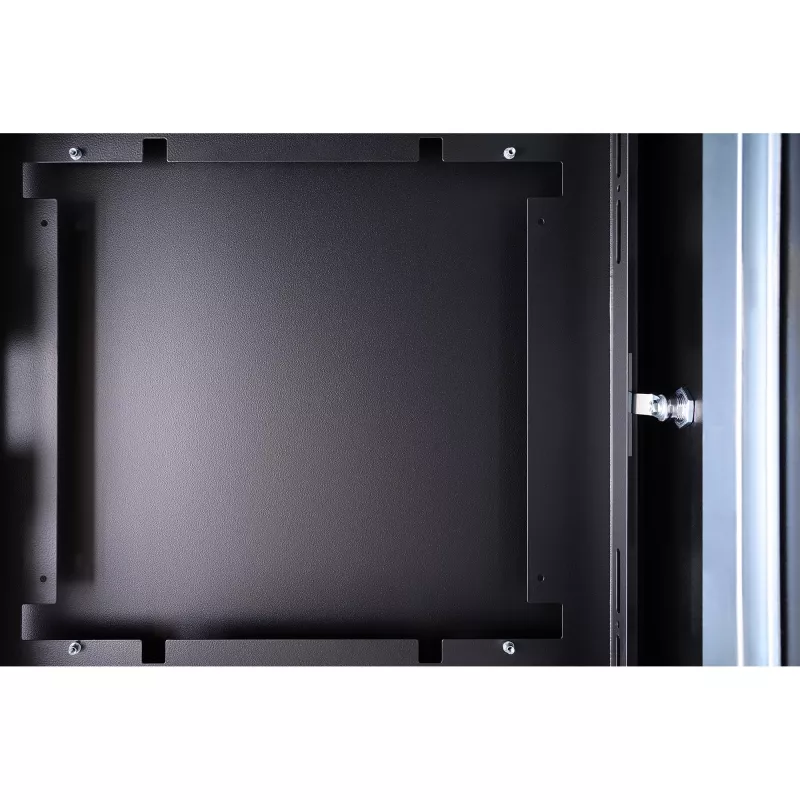

The rack offers modular accessibility with lockable and removable side panels and doors, reversible door hinges and a pivot lever lock on the front door prepared for a profile half cylinder (adapter included). Adjustable depth rails and additional depth bars allow flexible equipment mounting. Vertical cable channels and brush management panels support tidy cabling, while the collapsible design enables complete dismantling for transport or installation.

Suitable for

• Server and network equipment installation in small to medium data rooms
• Telecommunications and patch panel mounting
• Edge and branch office IT infrastructure
• Environments requiring organized cable management and ventilation for fan units

Key specifications

• Rack capacity: 22U
• IP rating: IP20
• Maximum load: 800 kg
• Depth: 800 mm
• Width: 600 mm
• Material thickness: up to 1.5 mm sheet steel
• Colour: Black (RAL 9005)

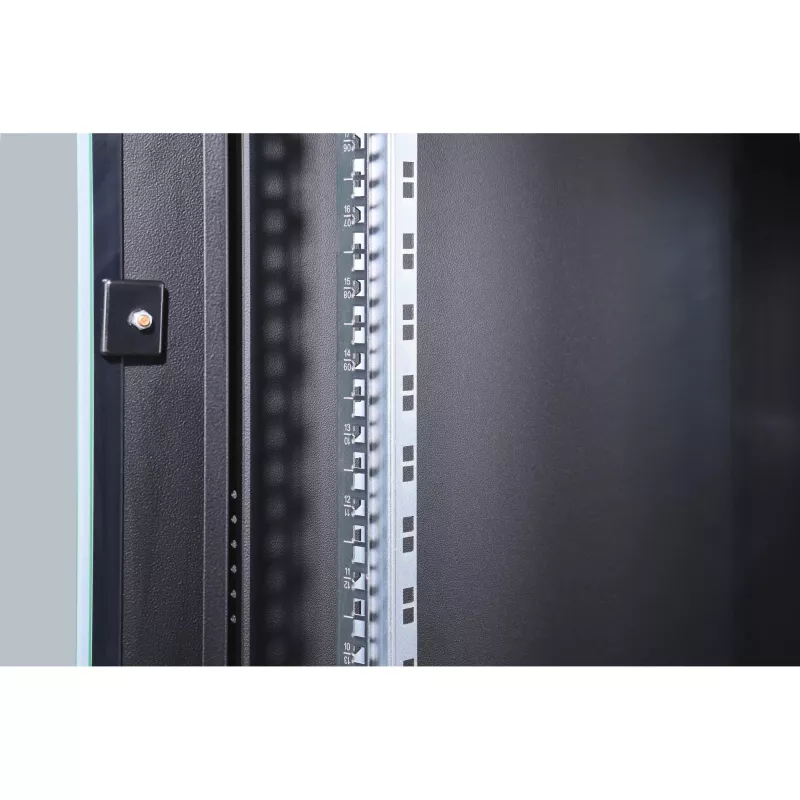

• 483 mm (19") profile rails, adjustable depth, labeled in RU

How to use

Place the freestanding rack on a level surface and fix it if required by site conditions. Install equipment by adjusting the 19" profile rails to the correct depth and mounting devices using standard rack screws. Route cables through the brush-equipped roof and floor inlets or the sliding cable entry at the base, and use the vertical cable channels and brush management panels to organize cabling. If a fan module is needed, remove the offset roof cover and mount the fan unit in the dedicated roof area.

Recommendations

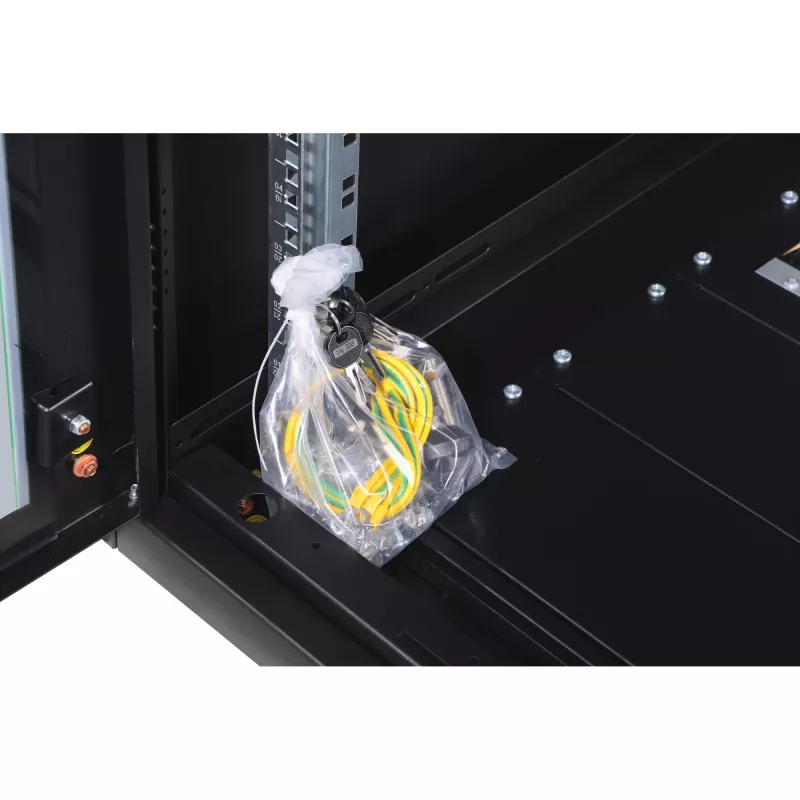

Use appropriate earthing and secure heavy equipment at lower rack units to maintain stability. Ensure ventilation clearances and, for optimal airflow, install fans in the roof opening provided. Regularly check locks and seals to maintain IP20-level protection against solid objects.
