Rack independiente Triton Triton 19 pulgadas rack 22U/ 600x800 puerta de cristal

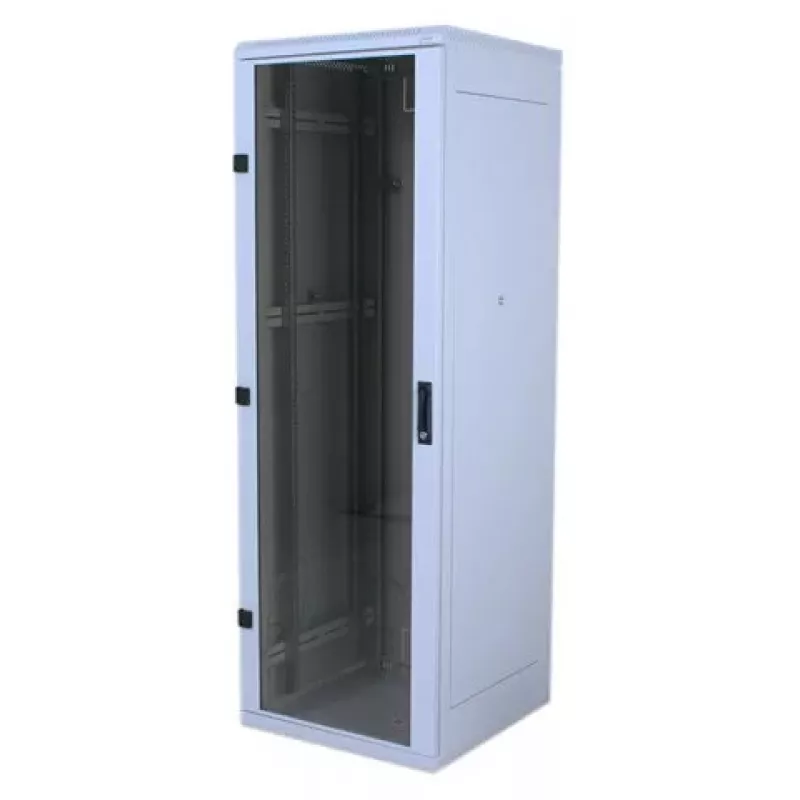

The Triton 19" Rack 22U/600x800 with glass door is a freestanding steel cabinet designed for data and telecommunication installations. Built for durability and heavy load capacity, the cabinet provides a neat appearance and secure housing for servers and networking equipment. The rack includes adjustable 19" mounting rails, removable side and rear panels, cable entry points with larger square openings (333 cm²), ventilated top and base sections and a lockable hinged front door with safety glass.

Advantages

This freestanding rack supports heavy loads and offers flexible mounting thanks to vertically adjustable 19" rails and the option for additional 21"/off-centre configurations on 800 mm wide models. It features multiple cable entry points with breakout blanking panels, brush strip protection against dust ingress, provisions for fan units and a 3D top cover for airflow management. Removable panels, key-operated locks and an earthing system simplify installation and maintenance while maintaining security.

Suitable for

• Housing servers, switches and rack-mount network equipment
• Small to medium data closets or telecommunications rooms
• Installations requiring secure, freestanding enclosures with glass viewing door

Key specifications

• Brand: Triton
• Model: 19" Rack 22U/600x800 (MPN RMA-22-A68-CAX-A1)

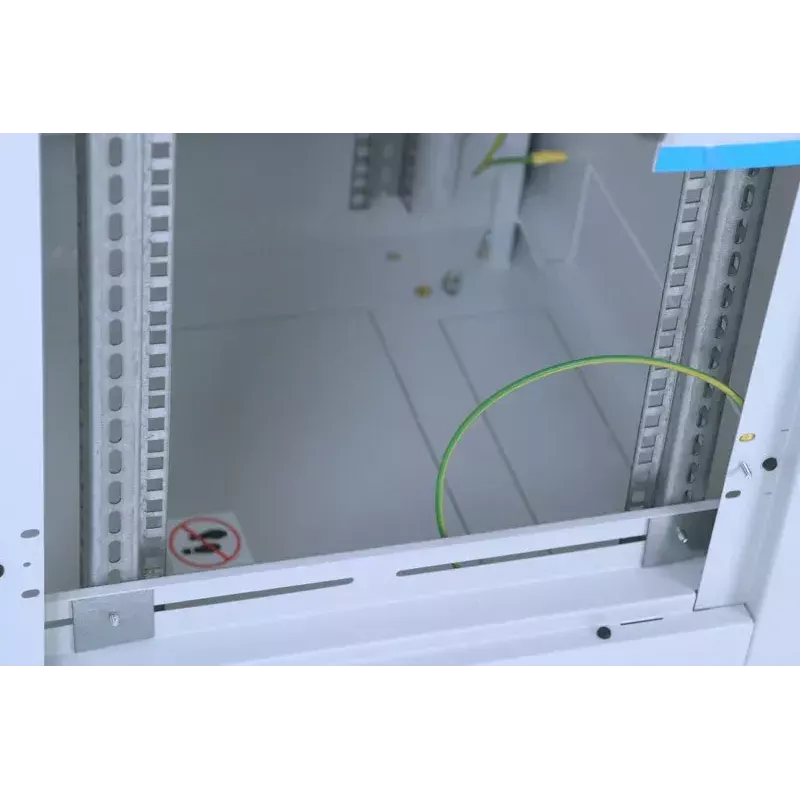

• Mounting: 19" vertical rails (adjustable); 21"/off-centre options on 800 mm width
• Dimensions (mounting capacity): 22U, nominal cabinet footprint 600 x 800 mm
• Door: Hinged front door with 4 mm safety hardened glass (lockable)
• Material: Steel sheet construction
• Cable entry: Top, bottom and upper/lower rear sections; square opening area 333 cm² with breakout panels

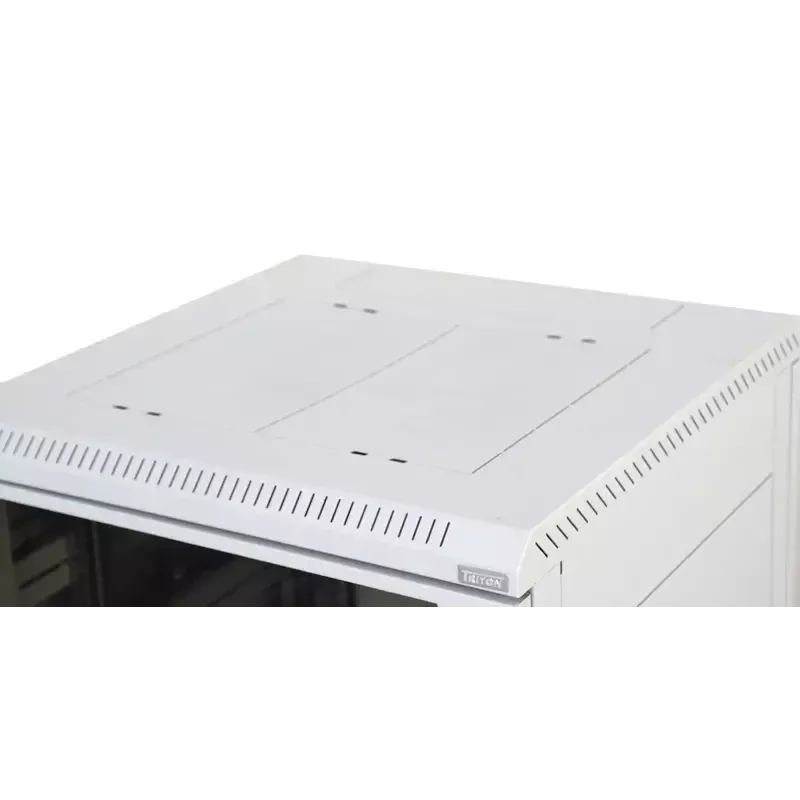

• Ventilation: Vented top and bottom sections; openings for fan units; top fan covered by 3D cover
• Load capacity: Suitable for heavy loads (see manufacturer guidelines for exact limits)
• Weight: 49.1 kg
• Colour: Grey
• EAN: 8595105066201

How to use

Position the freestanding rack on a stable, level surface and adjust the levelling feet for stability. Fit the vertical 19" mounting rails to the required depth and, for 800 mm wide cabinets, adjust rail position laterally if a 21" or off-centre arrangement is required. Install equipment using the provided mounting hardware and secure the hinged front door and removable side/rear panels after cabling. Use the designated cable entry points and breakout panels to route cables, and install brush strips where needed to reduce dust ingress. If additional ventilation is required, mount fan units in the top or base openings under the supplied 3D cover.

Recommendations

For safe operation and optimal lifespan, observe equipment load limits, ensure proper earthing, maintain clear airflow paths and follow local safety regulations when installing power and cooling systems. Regularly inspect locks, seals and ventilation openings and keep cable entries organized to avoid obstruction of airflow.
