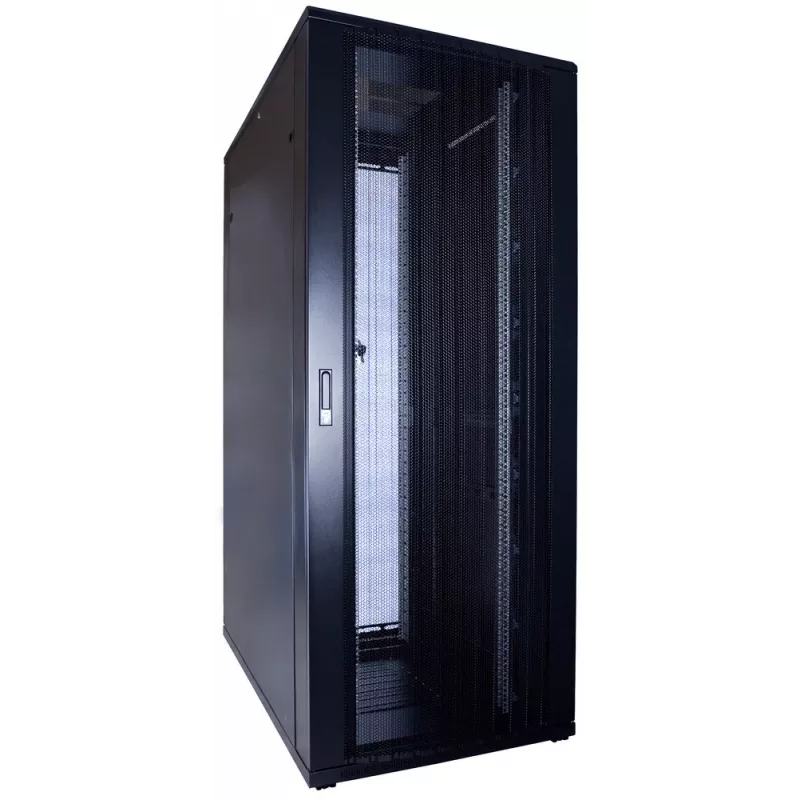

Rack servidor DSIT 19" con puertas perforadas 800x1200 mm - 42U

Built for high-density data centers and network rooms, the DSIT DS8242PP server rack combines a spacious 800 mm width with a deep 1200 mm footprint to accommodate even the largest enterprise servers, switches, and storage arrays. Its fully perforated front and rear doors maximize airflow for passive and active cooling, while the robust welded steel frame supports up to 1000 kg static load. Unlike many racks in this class, it includes lockable side panels, adjustable mounting rails, and both casters and leveling feet for flexible deployment.

Highlights

• 42U capacity with 19" mounting rails, compliant with ANSI/EIA RS-310-D, IEC 60297-2, and DIN 41494

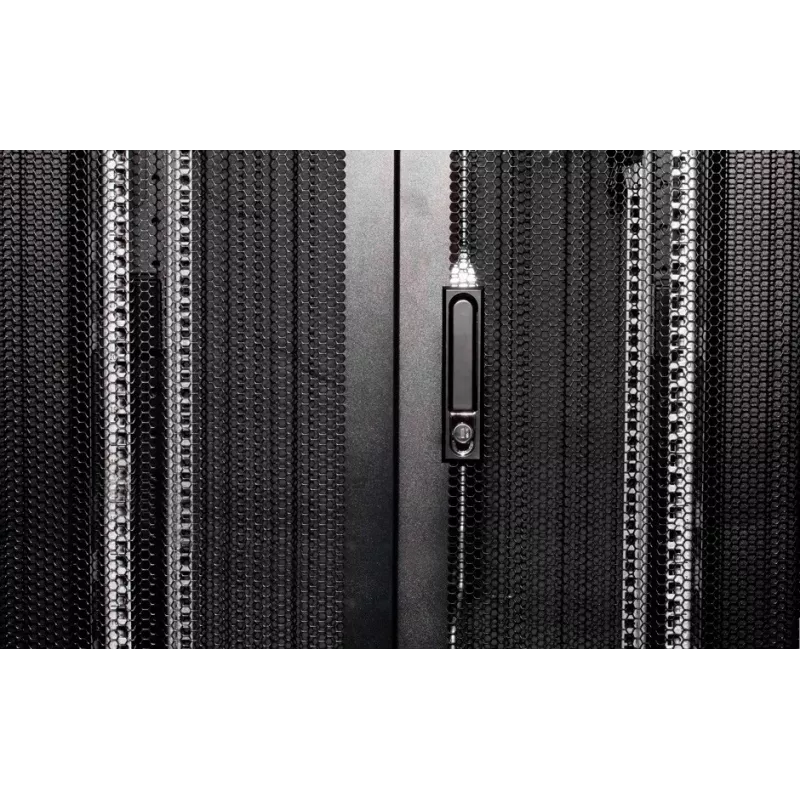

• Perforated steel doors (approx. 70-80% open area) front and rear for optimal ventilation
• Heavy-duty SPCC cold rolled steel construction with black RAL 9005 powder coating
• Static load capacity: 1000 kg; dynamic load capacity: 600 kg

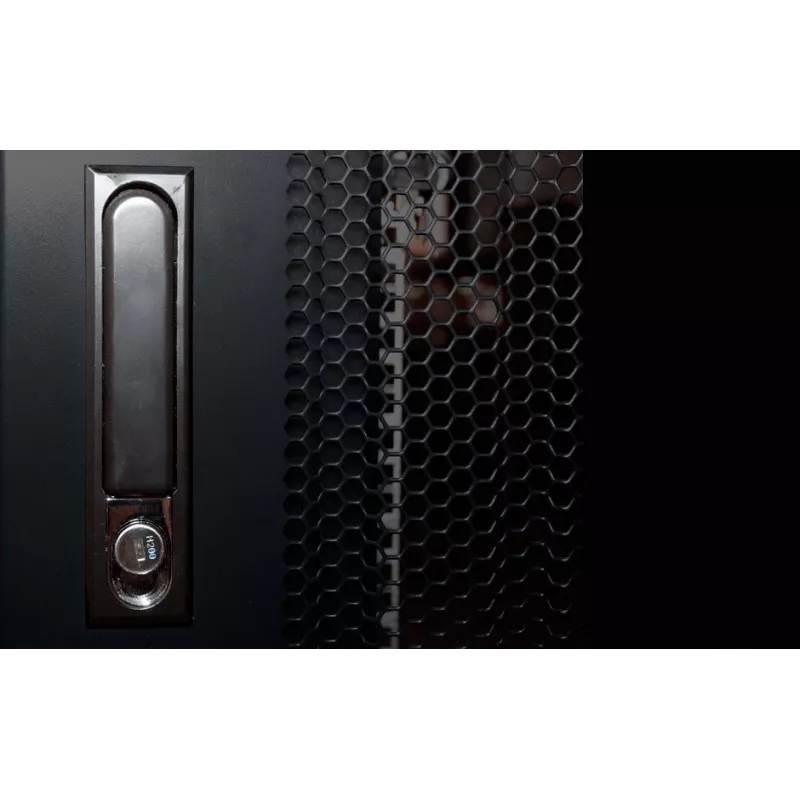

• Removable, lockable side panels and lockable doors for security
• Adjustable front and rear mounting rails with depth range from min to max
• Pre-installed brush strips for top and bottom cable entry to manage airflow and dust
• Includes 4 casters, 4 leveling feet, 20 cage nuts & screws, and 2 keys

In daily use

The 800 mm width provides extra space for cable management and high-density patching, while the 1200 mm depth accommodates deep servers and allows for proper airflow. The perforated doors promote passive cooling, reducing reliance on active cooling and lowering energy costs. The removable side panels simplify equipment installation and maintenance. With its IP20 rating, the rack is suited for controlled indoor environments. The included casters enable easy positioning, and the leveling feet ensure stability on uneven floors.

Full specifications

• Rack size: 19 inch
• Rack units: 42U
• External dimensions (W x D x H): 800 x 1200 x 2050 mm
• Usable depth: approx. 1050 mm
• Material: SPCC cold rolled steel
• Colour: Black (RAL 9005)
• IP protection class: IP20
• Door type: Perforated steel (front and rear)

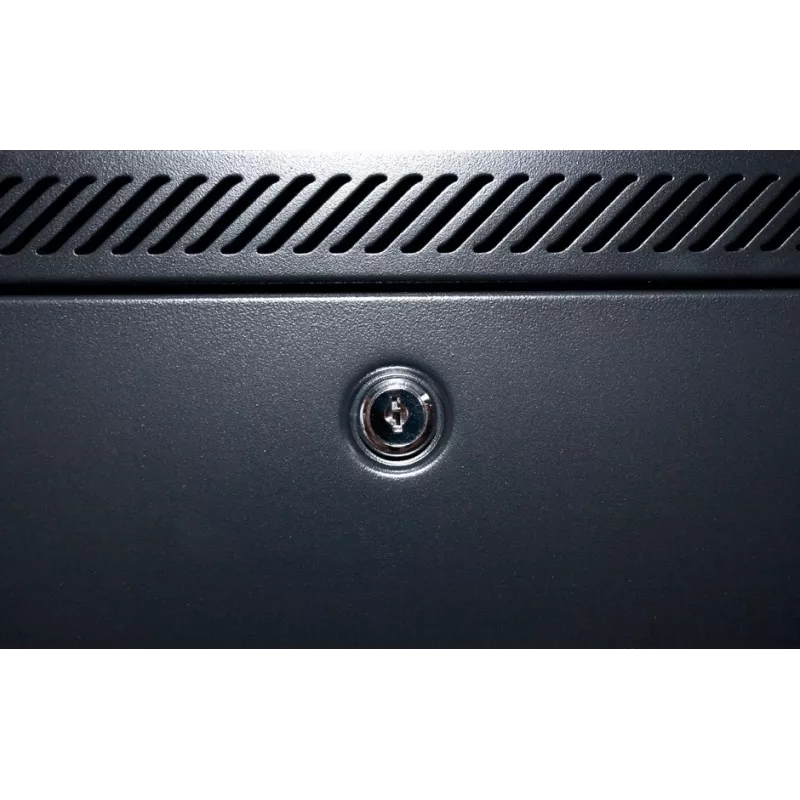

• Side panels: Removable, lockable
• Cable entry: Top and bottom with brush strips
• Mounting rails: Adjustable depth, front and rear
• Static load capacity: 1000 kg
• Dynamic load capacity: 600 kg
• Compliance: ANSI/EIA RS-310-D, IEC 60297-2, DIN 41494 Part 1 & 7
• Included accessories: 4x casters, 4x leveling feet, 20x cage nuts & screws, 2x keys
• Cooling: Optimized for passive and active ventilation
• Construction: Robust, welded frame construction

Final note

The DSIT DS8242PP is a professional-grade server rack that delivers exceptional load capacity, superior airflow, and flexible configuration. Its deep 1200 mm design and wide 800 mm footprint make it an ideal choice for modern data centers requiring high-density, well-cooled equipment housing.
