Rack de montaje en pared Digitus DN-19 09-U-3-SW

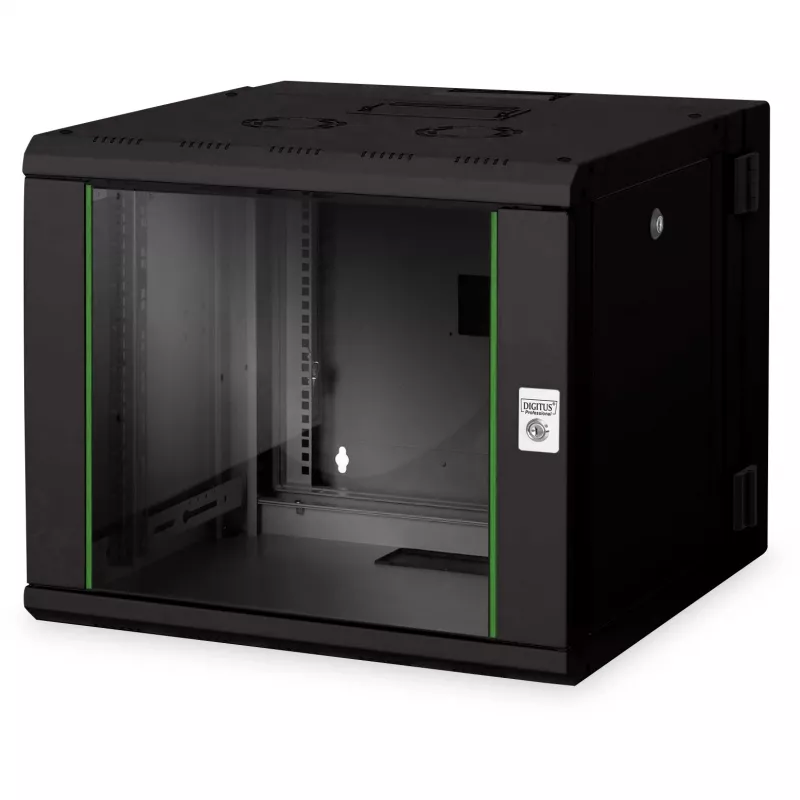

The DIGITUS Unique Series wall-mounted rack DN-19 09-U-3-SW is a 9U network cabinet designed and developed in Germany for demanding IT infrastructure applications. Constructed from up to 1.5 mm sheet steel and finished in jet black (RAL 9005), the cabinet is suitable for wall installation and can also be used free-standing with optional leveling feet or casters. It provides a lockable safety-glass front door, removable and lockable side panels, and adjustable 483 mm (19") profile rails with U markings readable in both directions. The cabinet meets IP20 protection class and supports a maximum load of 80 kg.

Advantages

The cabinet offers a robust steel construction for secure wall mounting and flexible access thanks to a hinged back frame that folds to the side for easy rear-side assembly. Cable management features include a sliding cable inlet with foam seal in the roof, pre-cut cable inlets in the rear and floor with plastic covers, and brush management panels on the back frame. The front door hinges are reversible and the internal 19" rails are depth-adjustable to fit various equipment depths.

Suitable for

• Small server rooms and network closets with limited floor space
• Wall-mounted network equipment such as switches, patch panels and routers
• IT installations requiring lockable access and moderate security (key lock)

Key specifications

• Brand: DIGITUS
• Model: DN-19 09-U-3-SW
• Rack capacity: 9U
• Protection class: IP20
• Material: Sheet steel (up to 1.5 mm)
• Finish: Jet black (RAL 9005)
• Dimensions (H x W x D): 509 mm x 600 mm x 600 mm
• 19" profile rails: galvanized, depth-adjustable, U markings readable both directions
• Max load capacity: 80 kg
• Front door: lockable safety-glass with steel frame; side panels: removable and lockable

How to use

Mount the cabinet frame plate to the wall using appropriate anchors and fasteners for the wall material, then attach the housing to the frame so the cabinet can open in either direction. Install equipment on the adjustable 19" rails and route cables through the roof sliding inlet, rear and floor pre-cut openings or brush panels. The back frame can be folded sideways to provide easier access during installation or maintenance. If the cabinet should be free-standing, fit optional leveling feet or castors before loading equipment.

Recommendations

For safe operation, ensure the wall anchors and fixings are rated for the cabinet weight plus installed equipment (up to 80 kg). Maintain clearance for ventilation and avoid placing heat-generating devices in enclosed, unventilated spaces. Use appropriate earthing and follow local installation regulations.
